AICSYS SBC-6512 Manual

Full-size picmg1.3 sbc supports intel 12th/13th/14th generation core i3/i5/i7 processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Full-size PICMG1.3 SBC
Supports Intel 12
/13
/14
Generation
th
th
th
Core i3/i5/i7 Processor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBC-6512 and is the answer not in the manual?

Questions and answers

Related Manuals for AICSYS SBC-6512

Summary of Contents for AICSYS SBC-6512

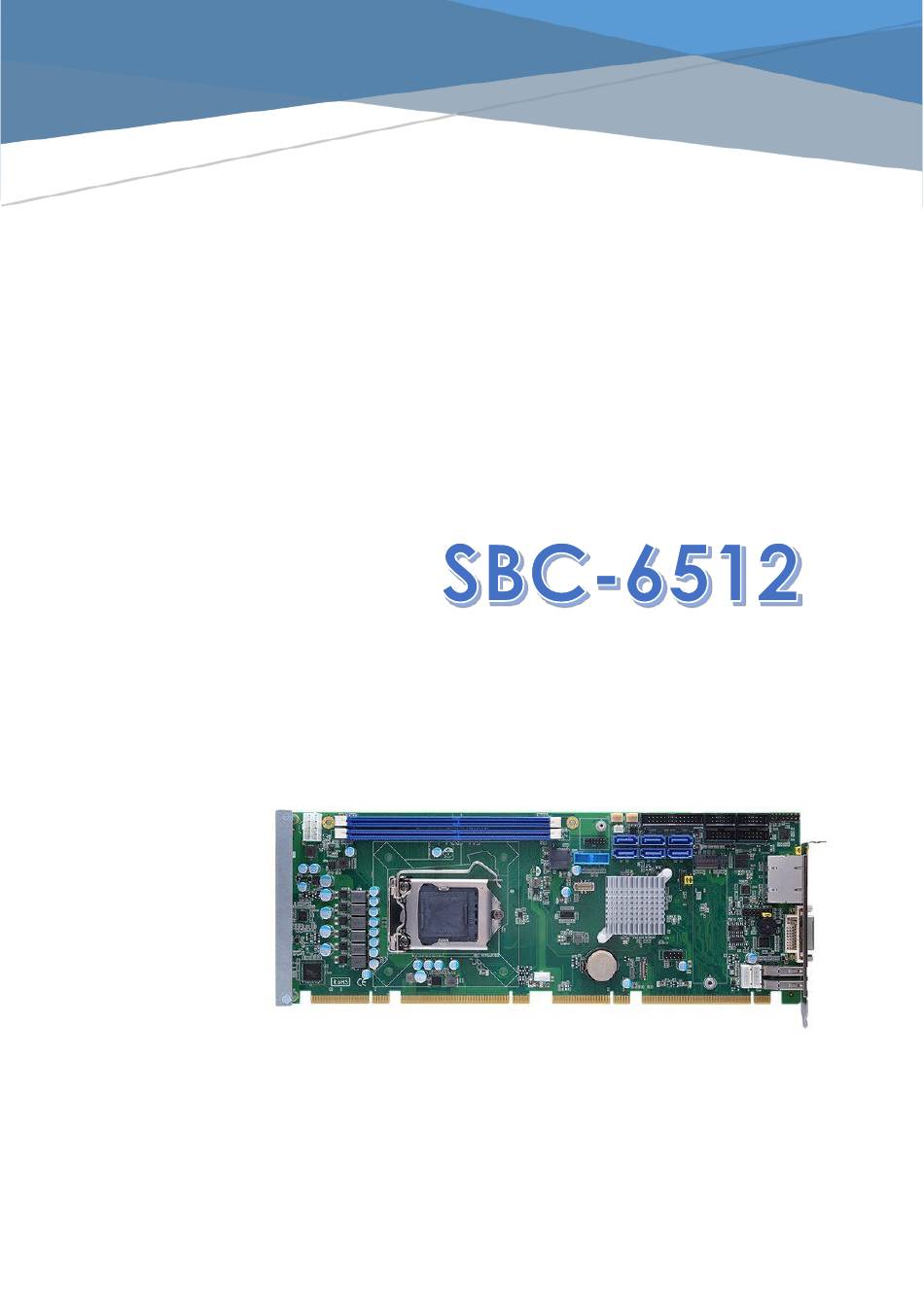

  • Page 1 Full-size PICMG1.3 SBC Supports Intel 12 Generation Core i3/i5/i7 Processor...
  • Page 2 AICSYS Inc. shall not be liable for any incidental or consequential damages resulting from the performance or use of this product. AICSYS Inc. does not issue a warranty of any kind, express or implied, including without limitation implied warranties of merchantability or fitness for a particular purpose.
  • Page 3 Packing List Please check the content: SBC-6512 Single Board Computer 1 PC Utility CD (including user manual) 1 PC SATA Cable 2 PCS...

  • Page 4: Table Of Contents

    Index Chapter 1 Product Introduction ............7 1.1 Product Overview ................7 1.2 Product Specifications ..............8 Chapter 2 Hardware Installation ............ 11 2.1Board Layout ..................11 2.3 Connector & Jumper List .............. 12 2.4 Jumpers ....................14 2.4 CPU Installation ................15 2.5 Memory Installation ................
  • Page 5 2.16 TPM Connector (CN7) ..............34 2.17 Front Panel Header (CN26) ............35 Chapter 3 AMI BIOS Setup Utility ............ 37 3.1 Starting ....................37 3.2 Menu Bar ................... 38 3.3 Navigation Keys ................39 3.4 Main Menu ..................40 3.5 Advanced Menu ................
  • Page 6 3.6 Chipset Menu ................... 60 3.6.1 System Agent (SA) Configuration ........61 3.6.2 PCH-IO Configuration ............. 63 3.7 Security Menu ................... 66 3.8 Boot Menu ..................67 3.9 Save & Exit Menu ................69 Chapter 4 System Configuration ............ 72 4.1 Watchdog Timer ................

  • Page 7: Chapter 1 Product Introduction

    Chapter 1 Product Introduction 1.1 Product Overview The SBC-6512 is a full-size PICMG 1.3 Single Board Computer, based on the 12 Generation Intel® Core™ i7/ i5/ i3/ Celeron® processors in LGA1700 socket with Intel® R680E/H610E PCH. The optimized SBC-6512 is specially designed for better computing and visual performance;...

  • Page 8: Product Specifications

    1.2 Product Specifications General Specification Form Factor PICMG 1.3 Full-size Single Board Computer LGA1151 for 12 generation Intel® Core™ processors, TDP up to 125W Memory (2) 288-pin DDR5-4400 un-buffered DIMM max. up to 128 GB, R680E supports ECC Chipset Intel® R680E/H610E Express Chipset BIOS AMI BIOS via SPI interface with socket Watchdog Timer...
  • Page 9 Smart Fan One CPU fan and one chassis fan connectors for fan speed controllable Display Graphic Engine Intel® Core™ integrated HD Graphics Technology Frame Buffer Up to 1.7GB shared with system memory Display Type DVI-I with DVI-D and VGA output Onboard internal DP 1.4 connector Resolution DVI/VGA Resolution max.
  • Page 10 Power & Environment Power Requirement Standard 24-pin ATX power supply Dimension 338 (L) x 126 (H) mm Temperature Operating within 0° ~ 60°C (32° ~ 140°F) Storage within -20° ~ 85°C (-4° ~ 185°F)

  • Page 11: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation 2.1Board Layout...

  • Page 12: Connector & Jumper List

    2.3 Connector & Jumper List Connector Function CN13 ATX Power Connector DIMM0/DIMM1 DDR5 DIMM Socket TPM Pin Header FAN2 FAN Connector FAN3 FAN Connector Parallel Port Connector COM1 Serial Port Connector COM2 Serial Port Connector COM3 Serial Port Connector COM4 Serial Port Connector Optional Audio Digital Module Header CN10~CN12/CN17~19...
  • Page 13 CN33 Internal USB 2.0 Connector CN28 Internal PS/2 Mouse Connector CN29 Internal PS/2 Keyboard Connector BAT1 RTC Battery Socket CN22 RJ45 LAN Port CN22 RJ45 LAN Port CN31 DVI-I Connector CN35/CN36 USB 3.2 Gen2x1 Connector...

  • Page 14: Jumpers

    2.4 Jumpers Jumper is a small component consisting of jumper clip and jumper pins. Install jumper clip on 2 jumper pins for close. And remove jumper clip from 2 jumper pins for open. The following illustration shows how to set up jumper.

  • Page 15: Cpu Installation

    2.4 CPU Installation The LGA1151 processor socket comes with a cover to protect the processor. Please install the processor into the CPU socket step by step as below: Step 1: Open the socket Disengage load lever by releasing down and out on the hook. This ...
  • Page 16 Step 3: Processor installation Lift processor package from shipping media by grasping the  substrate edges. Scan the processor package gold pads for any presence of  foreign material. If necessary, the gold pads can be wiped clean with a soft lint-free cloth and isopropyl alcohol. Locate connection 1 indicator on the processor which aligns with ...
  • Page 17 Step 5: Fan and Heatsink handling 1. Orientate the CPU cooling fan to fixing holes on the board. 2. Screw the CPU cooling fan onto the board. 3. Make sure the CPU fan is plugged to the CPU fan connector.

  • Page 18: Memory Installation

    2.5 Memory Installation The board supports two 288-pin DDR5 DIMM memory sockets with maximum 128GB. Please follow steps below to install the memory modules: Push down latches on each side of the DIMM socket.  Align the memory module with the socket that notches of memory ...

  • Page 19: Cmos Setup

    2.6 CMOS Setup JP2 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin 2 and pin 3 on JP2 for 5 seconds.

  • Page 20: Serial Ata Ports

    2.7 Serial ATA Ports The board has six Serial ATA III interfaces with RAID function, the transfer rate of the Serial ATA III can be up to 600MB/s, but not supports SATAII device. Based on Intel® PCH, it supports Intel® Matrix Storage Technology with combination of RAID 0, 1, 5 and 10.

  • Page 21: Ethernet Interface

    2.8 Ethernet Interface The board integrates with one Intel I226V 2.5 Gigabit Ethernet & one Intel I226- LM controllers, as the PCI Express bus. The Intel I226V & I226-LM supports triple speed of 100/1000/2500 Base-T, with IEEE802.3 compliance and Wake-On-LAN supported.

  • Page 22: Audio Interface (Cn5)

    2.9 Audio Interface (CN5) The board supports HD audio with optional expansion board through CN5. Intel HD Audio Digital Header (CN5) Description Description BCLK Ground RST# SYNC Ground +3.3VS SDIO +12VS Ground...

  • Page 23: Usb Ports

    2.10 USB Ports Besides two USB 3.1 ports on the I/O panel, there are three headers on this board. Each USB 2.0 header can support two ports. CN33: USB 2.0 Port Description Description USB DX- USB DY- USB DX+ USB DY+ Ground Ground Ground...
  • Page 24 The CN24 & CN25 are internal box connectors for versatile USB 3.2 Gen. 1x1 compliant peripherals. These connectors are compatible with LOTES AUSB0418-P001A. CN24/CN25: internal USB 3.2 Gen.1x1 Port Description Description SSTX2+ SSTX3- SSTX2- SSTX3+ SSRX2+ SSRX3- SSRX2- SSRX3+ USBP3P_C USBP4P_C USBP3N_C USBP4N_C...
  • Page 25 CN35/CN36 CN33 CN24/CN25...

  • Page 26: Serial Ports (Com1~4)

    2.11 Serial Ports (COM1~4) COM1 to COM4 are 10-pin (Pitch = 2.54mm) connectors, which are compliant with CATCH 1137-000-10S, and support RS/232/422/485 modes through BIOS settings. RS-232: Description Description RS-422: Description Description RS-485: Description Description RTX- RTX+...
  • Page 27 COM2 COM1 COM4 COM3...

  • Page 28: Parallel Port (Cn2)

    2.12 Parallel Port (CN2) The board provides one parallel port with multiple mode. 1. Standard Mode: IBM PC/XT, PC/AT and PS/2 are compatible with bi- direction. 2. Enhanced Mode: Enhance Parallel Port (EPP) is compatible with EPP 1.7 and EPP 1.9 (IEEE 1284 compliant). 3.

  • Page 30: Temperature Sensor Connector (Cn15/Cn16)

    2.13 Temperature Sensor Connector (CN15/CN16) This is a 2-pin connector for temperature sensor (NTC thermistor) interface. The thermistor value should be 10K and its B value is 3435K. Description Sensor Input Ground CN15/CN16...

  • Page 31: Fan Connectors (Cpufan/Fan2/Fan3)

    2.14 Fan Connectors (CPUFAN/FAN2/FAN3) The CPUFAN is for CPU fan interfaces, FAN1 & FAN2 are for system cooling. Please connect the CPU fan cable to the connector and match the black wire to the ground pin. FAN3 Signal +12V CPU_FAN_SPEED FAN_SPEED_CONTROL FAN1 &...

  • Page 32: Power Connectors (Cn13)

    2.15 Power Connectors (CN13) The CN13 is an 8-pin ATX power connector. Please connect a 12V ATX power supply to this connector. Description Description +12V +12V +12V +12V...
  • Page 33 Auto Power On (JP1) If JP1 is enabled for power input, the system will be automatically powered on without pressing the soft power button. If JP 3 is disabled for power input, it is necessary to manually press the soft power button to power on the system.

  • Page 34: Tpm Connector (Cn7)

    2.16 TPM Connector (CN7) CN7 is 7x2 pin p=2.0mm header for SPI interface with a TPM module. Description Description VCC3P3 MOSI MISO PIRQ...

  • Page 35: Front Panel Header (Cn26)

    2.17 Front Panel Header (CN26) This header accommodates several system front panel functions. PWRBTN (Power Switch) Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch. RESET (Reset Switch) Connect to the reset switch on the chassis front panel.

  • Page 37: Chapter 3 Ami Bios Setup Utility

    Chapter 3 AMI BIOS Setup Utility The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off. This chapter provides users with detailed description about how to set up basic system configuration through the AMI BIOS setup utility.

  • Page 38: Menu Bar

    3.2 Menu Bar The top of the screen has a menu bar with the following selections: Menu Bar Description Main To set up the system time/date information. Advanced To set up the advanced BIOS features. H/W Monitor To display current hardware status. Boot To set up the default system device to locate and load the Operating System.

  • Page 39: Navigation Keys

    3.3 Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. These keys include <F1>, <F7>, <Enter>, <ESC>, <Arrow> keys, and so on. Hot Keys Description The Left and Right <Arrow>...

  • Page 40: Main Menu

    3.4 Main Menu When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below. The Main BIOS setup screen is shown below.

  • Page 41: Advanced Menu

    3.5 Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus:...

  • Page 42: Acpi Settings

    3.5.1 ACPI Settings You can use this menu to select options for the ACPI configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen. ACPI Sleep State Select the ACPI (Advanced Configuration and Power Interface) sleep state.

  • Page 43: Trusted Computing

    3.5.2 Trusted Computing This menu provides function for specify the Trusted Computing. Security Device Support Enable or disable BIOS support for security device. The default setting is Disabled. TPM State Once the Security Device Support is Enabled, TPM (Trusted Platform Module) can be used by the operating system.

  • Page 44: Platform Misc Configuration

    3.5.3 Platform Misc Configuration This screen allows you to set Platform Misc Configuration. Native PCIE Enable Bit PCIe Native * control n 0 ~ Hot Plug n 1 SHPC Native Hot Plug control n 2 ~ Power Management Events n 3 PCIe Advanced Error Reporting control n 4 PCIe Capability Structure control n 5 Latency Tolerance Reporting control Native ASPM Enabled OS Controlled ASPM, Disabled BIOS Controlled ASPM...

  • Page 45: Cpu Configuration

    3.5.4 CPU Configuration This menu shows the CPU information, and let you change the value of the selected option. Hyper-threading Enable or disable Hyper-Threading Technology. When enabled, it allows a single physical processor to multitask as multiple logical processors. When disabled, only one thread per enabled core is enabled.
  • Page 46 Enable / Disable AES (Advanced Encryption Standard) Boot performance mode Select the performance state that the BIOS will set starting from reset vector. Intel (R) SpeedStep(tm) Allows more tha n two frequency ranges to be supported.

  • Page 47: Storage Configuration

    3.5.5 Storage Configuration This screen shows storage information.
  • Page 48 SATA Controller(s) Enable or disable SATA controller feature.
  • Page 49 VMD Setup Menu VMD Configuration settings. The default is Disabled.

  • Page 50: Nvme Configuration

    3.5.6 NVMe Configuration This screen shows NVMe device information.

  • Page 51: Amt Configuration

    3.5.7 AMT Configuration This screen displays Active Management Technology information. AMT BIOS Features Enable or disable Active Management Technology BIOS features. The default is Enabled.

  • Page 52: F81966 Super Io Configuration

    3.5.8 F81966 Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen. For items marked with “”, please press <Enter>...
  • Page 53 Serial Port 1~4 Configuration Use these items to set parameters related to serial port 1 ~4.
  • Page 54 Parallel Port Configuration This screen displays Active Management Technology information.

  • Page 55: Hardware Monitor

    3.5.9 Hardware Monitor This screen monitors hardware health status. This screen displays the temperature of system and CPU, cooling fans speed in RPM and system voltages (VCC_CPU, DDR, +12V, +5V and +3.3V).
  • Page 56 Smart fan configuration This screen allows you to configure Smart Fan mode.

  • Page 57: Nct7802Y Hardware Monitor

    3.5.10 NCT7802Y Hardware Monitor This screen monitors Fans status.

  • Page 58: Usb Configuration

    3.5.11 USB Configuration This screen shows USB configuration.

  • Page 59: Pci Subsystem Settings

    3.5.12 PCI Subsystem Settings This screen allows you to set PCI Subsystem mode. PCI Latency Timer Set the value to be programmed into PCI Latency Timer Register. VGA Palette Snoop Enables or Disables VGA Palette Registers Snooping.

  • Page 60: Chipset Menu

    3.6 Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► System Agent (SA) Configuration ► PCH-IO Configuration ►...

  • Page 61: System Agent (Sa) Configuration

    3.6.1 System Agent (SA) Configuration This screen shows System Agent information VT d capability Above 4GB MMIO BIOS assignment Enable/Disable above 4GB Memory Mapped IO BIOS assignment. This is enabled automatically when Aperture Size is set to 2048MB. Graphics Configuration Open the sub menu for parameter s related to graphics configuration CPU PCI Express Root Port Set the ASPM Level and PCI Express Speed.
  • Page 62 Graphics Configuration This screen shows graphics configuration. Internal Graphics Keep IGFX enabled based on the setup options.

  • Page 63: Pch-Io Configuration

    3.6.2 PCH-IO Configuration This screen shows system memory information. PCI Express Configuration Configure PCIe Speed. HD Audio Configuration Enable or disable HD Audio. Wake on LAN Enable Enable or disable integrated LAN to wake the system.
  • Page 64 PCI Express Configuration This screen shows PCI Express configuration.
  • Page 65 PCIe Speed Configure PCIe Speed. ASPM Set the ASPM Level: L1 - Force all links to L1 State. AUTO - BIOS auto configure. DISABLE - Disables ASPM. Detect Non-Compliance Device Detect Non-Compliance PCI Express Device. If enabled, it will take more time at POST time.

  • Page 66: Security Menu

    3.7 Security Menu The Security menu allows users to change the security settings for the system. Administrator Password This item indicates whether an administrator password has been set (install or uninstalled). User Password This item indicates whether a user password has been set (installed or uninstalled).

  • Page 67: Boot Menu

    3.8 Boot Menu The Boot menu allows users to change boot options of the system. Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Use this item to select the power-on state for the keyboard NumLock. Quiet Boot Select to display either POST output messages or a splash screen during boot- Network Stack...
  • Page 68 Boot Option Priorities These are settings for boot priority. Specify the boot device priority sequence from the available devices...

  • Page 69: Save & Exit Menu

    3.9 Save & Exit Menu Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?”. Select OK to save the changes and exit the UEFI setup utility. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”.
  • Page 70 from the Save & Exit menu and press <Enter>. Select Yes to save the changes and reset. Discard Changes and Rest Select this option to quit Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Reset from the Save &...
  • Page 71 Select a drive to immediately boot that device regardless of the current boot order.

  • Page 72: Chapter 4 System Configuration

    Chapter 4 System Configuration 4.1 Watchdog Timer After the system stops working for a while, it can be auto-reset by the watchdog timer. #include "stdafx.h" #include <windows.h> #include <stdio.h> #include <tchar.h> #include <stdlib.h> #ifdef _DEBUG #define new DEBUG_NEW #endif #pragma comment (lib, "User32.lib" ) #define IDT_TIMER WM_USER + 200 #define _CRT_SECURE_NO_WARNINGS 1 #define setbit(value,x) (value |=(1<<x))
  • Page 73 58 Watchdog Timer if (hinstLibDLL == NULL) hinstLibDLL = LoadLibrary(TEXT("diodll.dll")); if (hinstLibDLL == NULL) //MessageBox("Load diodll dll error", "", MB_OK); if (hinstLibDLL) lpFnDll_Get_IO = (LPFNDLLGETIOSPACE)GetProcAddress(GetModuleHandle("diodll.dll"), "GetIoSpaceByte"); lpFnDll_Set_IO = (LPFNDLLSETIOSPACE)GetProcAddress(GetModuleHandle("diodll.dll"), "SetIoSpaceByte"); printf("Input Watch Dog Timer type, 1:Second ; 2:Minute :"); scanf("%d",&unit); printf("\nInput Timer to countdown:");...
  • Page 74 WDTDATA = lpFnDll_Get_IO(0x2f); WDTDATA = setbit(WDTDATA, 0); lpFnDll_Set_IO(0x2f, WDTDATA); if (unit == 1) lpFnDll_Set_IO(0x2e, 0xF6); lpFnDll_Set_IO(0x2f, WDTtimer); //start watchdog counting lpFnDll_Set_IO(0x2e, 0xF5); WDTDATA = lpFnDll_Get_IO(0x2f); WDTDATA = setbit(WDTDATA, 5); lpFnDll_Set_IO(0x2f, WDTDATA); else if (unit == 2) SHB160 LGA1700 Full-size CPU Card Watchdog Timer 59 //set WDT Timer lpFnDll_Set_IO(0x2e, 0xF6);...
  • Page 75 WDTDATA = setbit(WDTDATA, 5); lpFnDll_Set_IO(0x2f, WDTDATA); system("pause"); return 0; Timeout Value Range ◼ 1 to 255 ◼ Minute / Second Note: If N=00h, the time base is set to second. M = time value 00h: Time-out Disable 01h: Time-out occurs after 1 second 02h: Time-out occurs after 2 seconds 03h: Time-out occurs after 3 seconds FFh: Time-out occurs after 255 seconds...

  • Page 76: Vmd (Raid) Configuration

    4.2 VMD (RAID) Configuration 4.2.1 Configuring SATA Hard Drive(s) for RAID (Controller: Intel® R680E) Before you begin the SATA configuration, please prepare: Two SATA hard drives (to ensure optimal performance, it is recommend that you use two hard drives with identical model and capacity). If you do not want to create RAID with the SATA controller, you may prepare only one hard drive.
  • Page 77 In SATA Configurations, enabled VMD Controller and save & reset. After Restart, enter <del> to Bios Setup Menu. In Advanced Page, choose Intel(R) Rapid Storage Technology.
  • Page 78 In Intel(R) Rapid Storage Technology page, choose RAID Volume Select the disk to be merged.
  • Page 79 Finally, implement create Volume.

  • Page 80: Iamt Settings

    4.3 iAMT Settings The Intel Active Management Technology (Intel iAMT) has decreased a major barrier to IT efficiency, that use built-in platform capabilities and popular third- party management and security applications to allow IT a better discovering, healing, and protection their networked computing assets. In order to utilize Intel iAMT you must enter the ME BIOS (<Ctrl+P>...

  • Page 81: Set And Change Password

    4.3.2 Set and Change Password Go to MEBx page, enter the default password “admin” for first time login, and then enter new password (complex password) twice to access AMT page. Select Network Setup to configure iAMT.
  • Page 82 Go back to Intel® AMT Configuration, then select Activate Network Access and press <Enter>. Exit from MEBx after completing the iAMT settings.

  • Page 83: Iamt Settings

    4.3.3 iAMT Settings On a web browser, type http://(IP ADDRESS):16992, which directs to iAMT Web. Example: http://10.1.40.214:16992 To log in, you will be required to type in your username and password for access to the Web. USER: admin (default) PASS: (MEBx password)
  • Page 84 Enter the iAMT Web. Click Remote Control, and select commands on the right side.
  • Page 85 When you have finished using the iAMT Web console, close the Web browser.
