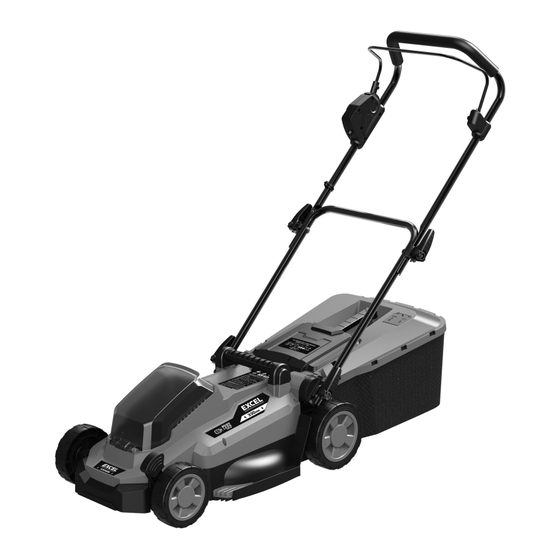

- Page 1 Original Instructions 18V Brushless Lawn Mower 11782 INSTRUCTION MANUAL...
-
Page 2: Description Of Symbols
Original Instructions DESCRIPTION OF SYMBOLS Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explications which accompany them must be perfectly understood. The warning themselves do not prevent the risks and cannot be a substitute for proper methods of avoiding accidents. - Page 3 Original Instructions On a slope, do not mow uphill or downhill. Before operating the lawn mower, remove lawn debris which may be ejected by the blade. Switch off and disconnect battery before cleaning/maintenance or if extension cord is damaged or entangled. Take the replaceable battery from the appliance before any extension, cleaning and servicing works ATTENTION! Do not let your hands or feet come in contact with the blades.
- Page 4 Original Instructions Do not expose the battery to fire or incinerate Do not expose the battery to high temperatures (above 40°C) On charger Class II machine – Double insulation – You don’t need any earthed plug. Use this device indoors only.
-
Page 5: General Safety Warnings
Original Instructions GENERAL SAFETY WARNINGS IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. l Children should be supervised to ensure that they do not play with the appliance. Safe operating practices for electrically powered lawnmowers 1) Training a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. -
Page 6: Maintenance And Storage
Original Instructions i) Stop the blade(s) if the machine has to be tilted for transportation when crossing surfaces other than grass, and when transporting the machine to and from the area to be used. j) Never operate the machine with defective guards or shields, or without safety devices, for example deflectors and/or grass collector, in place. -
Page 7: Intended Use
Original Instructions INTENDED USE This lawn mower has been designed for cutting grass. Any other use is not permitted. The lawn mower for use in private gardens,that are primarily used for tending grass or lawn areas, but not in public facilities, parks or sports grounds and not for agricultural or forestry use, commercial purpose. -
Page 8: Description Of Parts
Original Instructions DESCRIPTION OF PARTS 1.Safety lock button 2.Handlebar for engine brake 3.Upper handlebar 4.Quick fix knop 5.Lower handlebar 6.Grass collector 7.Discharge flaps 8.Height adjustment handle 9.Battery pack(excluded) 10.Safety key 11.Mulching plug... -
Page 9: Technical Data
Original Instructions TECHNICAL DATA Type: 11782 No load speed: 2900/min-1 Max Cutting Length: 330mm Cutting Height 5Levels(25-75mm) Front/Rear Wheel 5.5"/6.5" Gross Box Volume Sound emission(L 68,1dB(A) K=3dB(A) Sound power (L 80,5dB(A) K=2,25dB(A) Guaranteed (L 96dB(A) Battery and Charger Recommended battery 11760,Li-ion 18V d.c. - Page 10 Original Instructions An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organization of work patterns...
- Page 11 Original Instructions temperature between 5℃ and 35℃ will charge in about 70-140MIN(See section”Specifications”). 11761: • Plug the charger adapter into power source. The green light on the charger stand will illuminate, indicating the charger is powered. • Slide the battery all the way into the charger stand until it locks in place with a click.
-
Page 12: Before Use
Original Instructions Unpacking -Open the packaging and remove the device care-fully. -Remove the packaging material as well as the packaging and transport bracing (if available). -Check that the delivery is complete. -Check the device and accessory parts for trans-port damage. ATTENTION The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts, there is a risk of... -
Page 13: Lawn Mower Assembly
Original Instructions machine is primarily used to maintain small-scale, residential lawns and home/ hobby gardens. Public facilities, sporting halls, and agricultural/forestry applications are excluded. Important! Due to the high risk of bodily injury to the user, the lawn mower may not be used to trim bushes,hedges or shrubs, to cut scaling vegetation, planted roofs, or balcony-grown grass, to clean (suck up) dirt and debris off walkways. - Page 14 Original Instructions Assembly the grass collector: Fig.5 Click the frame to the grass collector. Fig.5 Mounting the grass collector: Fig.6 Attach the grass collector behind the lawn mower under the rear deflector guard. Fig. 6...
-
Page 15: Operation
Original Instructions Mulching plug:Fig.7 Insert the mulching plug (13), if you want to mow with mulching functionality. Don’t use the grass collector Fig.7 Important: Remember to remove the mulching plug, when using the grass collector. Operation Safety key (Fig.8) The motor unit has a safety key, which is placed under the battery cover. If the safety key is removed, the power is disconnected, and it cannot start. - Page 16 Original Instructions It is always recommended to remove the safety key: l When the lawn mower is left unattended (to prevent uninteded start, e.g. by minors) l Before clearning and maintenance l Before remove grass blockings Remove the safety key, by pulling it out. Insert the safety key to start the motor.
-
Page 17: Remove The Battery
Original Instructions Stop: Release the engine brake to turn off the mower and the engine Note: The blades will still rotate at up to 3 seconds after stopping. Remove the battery To remove the battery, press and hold the latch button under the battery and pull it out. - Page 18 Original Instructions Working without a grass box When you remove the grass box, the discharge flaps flicks down. When working without a grass box, the cut grass is ejected backwards. Lawn care advice Some advice so your lawn grows healthily and evenly: - A lawn consists of different types of grass.
-
Page 19: Maintenance And Care
Original Instructions Fig.10 Warning: A blade must be sharpened so it is in100 % balance, otherwise it may cause vibrations that could damage the engine. Damage to engine due to faulty sharpening is not covered by warranty. We therefore recommend letting a service center sharpen the blade. -
Page 20: Grass Catcher Box
Original Instructions Grass catcher box • You can use a hose to thoroughly clean the grass box. Removing/sharpening the cutting blade If the blades‘ cutting performance decreases, you can remove the blades and have them sharpened by a certified specialist. During assembly, thoroughly clean the area of contact of the flange and the blades. -
Page 21: Disposal And Recycling
Original Instructions Transport • When changing working areas, remove the battery from the lawn mower. • The upper handle can be folded by loosening the two knob nuts. You can transport the lawn mower using the carrying handle. Disposal and recycling The equipment is supplied in packaging to prevent it from being damaged in transit. - Page 22 Original Instructions Exceltools.co.uk Sales@exceltools.co.uk...
