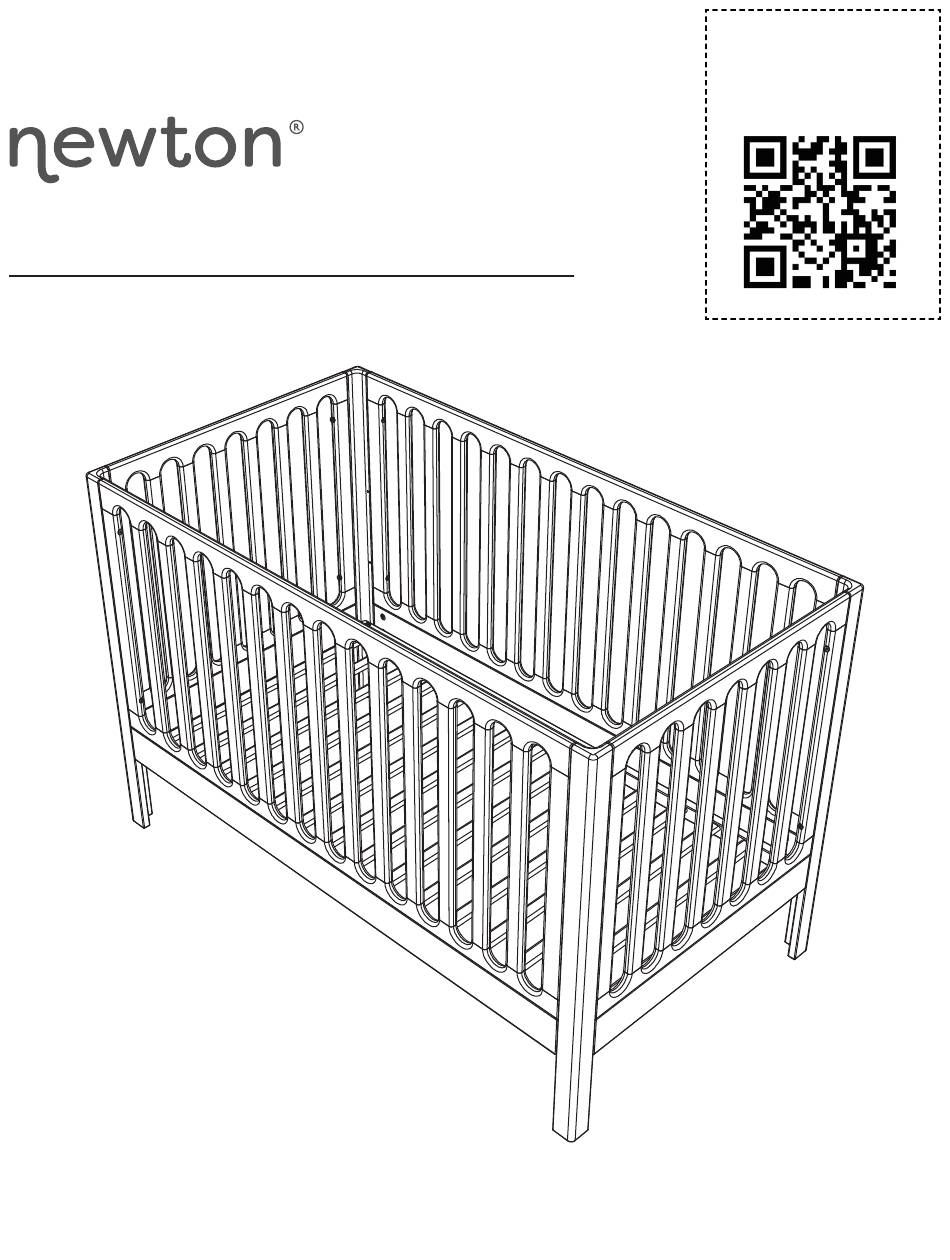

- Page 1 Scan below for quick video assembly guide: Convertible Crib with Toddler Rail Model 8420 Instruction Manual Any questions? Please feel free to contact us at (800)686-3986 or info@newtonbaby.com. We’re always happy to help. MAN8420-20240121...
-
Page 2: Fall Hazard
Securely tighten loose bolts and other fasteners. • DO NOT use crib if any parts are missing, damaged or broken. Contact Newton Baby for replacement parts and instructional literature if needed. DO NOT substitute parts. -
Page 3: Parts List
Parts List Check that all parts listed below are included in your package. If there are any missing parts, contact Newton Baby for replacements before use. Parts Not to Scale A x 2 B x 2 C x 2 D x 2... - Page 4 Hardware Actual Scale H1 x 1 H2 x 16 H3 x 4 H4 x 4 Allen Wrench Bolt 1/4” x L 55 Bolt 1/4” x L 30 Bracket Partially Assembled Disassembled H5 x 8 H6 x 8 Cam Pin 1/4” x L 51.5 Cam Assembly Tools Needed (Not Included)
- Page 5 To Assemble the Crib H2 x8...
- Page 6 Screw in Cam Pins (H5) securely into Corner Posts Press Cam Lock Assemblies (H6) into holes of Long Base Rail (F) Cam Lock Housing (H6B) must be rotated properly to align through-holes horizontally to accept Camp Pins (H5). Slide Long Base Rail (F) over Cam Pins (H5) against the Corner Posts. Cam Pins (H5) should slide through holes in Cam Lock Housing (H6).
- Page 7 H2 x 8...
- Page 8 H3 x 4 H4 x 4...
- Page 9 Mattress Support Height Adjustment Lower the mattress support as your infant grows. Height Setting Middle Height Setting Bottom Height Setting (Toddler Bed & Sofa Setting) H3 x 4 H4 x 4...
- Page 10 H3 x 4 H4 x 4...
- Page 11 To Assemble the Toddler Bed H2 x 8...
- Page 12 Toddler rail can be installed on either side. H2 x 4...
- Page 13 To Assemble the Toddler Sofa H2 x 4...
-
Page 15: Care And Cleaning
Storage Store wooden crib in a controlled indoor environment, protected from immoderate temperatures and humidity. Keep away from direct sunlight, air conditioners, radiators, heaters and humidifiers. Major changes in temperature and humidity may result in shrinkage or swelling of wood. Direct sunlight may affect the color over time. Care and cleaning Wipe wood, as needed, with a lint-free, microfiber cloth with a non-toxic cleaner, then wipe dry immediately. - Page 16 382 NE 191st Street Miami, FL 33179 www.newtonbaby.com info@newtonbaby.com 800-686-3986...
