Document Number
CCTM2022160
Security Classification
SERVICE MANUAL
Photograph
Copyrightbelongs to Carlcare, cannot leak without permission
Internal Use
Features
CPU
Memory
Storage
Display
Webcam
OS
Internet
I/O
Battery
Adapter
Dimension
Others
Document Name
TECNO Megabook T1 Service
Manual
Release Time
2022-09-15
Description
A:
Intel i5-1035G1, Icelake
4Cores, 1.0GHz~3.6GHz
B:
Intel i5-1035G7, Icelake
4Cores, 1.0GHz~3.6GHz
8GB/12GB/16GB, DDR4
SSD: 512GB/1TB
15.6 Inch IPS FHD 350nits, sRGB
100%, 60Hz, 1920*1080P,16:9
2M
Windows 11Home
2.4GHz+5GHz WiFi 6, BT 5.0
TF card ,Type-C , USB 3.0, HDMI,
headphone jack, Audio Jack 3.5mm,
Kensington lock,Reset
6100mAh(70Wh/11.4V)
65W(19V/3.42A) Type C
L357.36xW229.5xH16.95mm, 1.5Kg
Support 180° Rotation, Power
supply+fingerprint 2in1, TECNO
LINK
Page
1/17
Version
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tecno Megabook T1
Summary of Contents for Tecno Megabook T1
- Page 1 Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 1/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 SERVICE MANUAL Photograph Features Description Intel i5-1035G1, Icelake 4Cores, 1.0GHz~3.6GHz Intel i5-1035G7, Icelake 4Cores, 1.0GHz~3.6GHz Memory 8GB/12GB/16GB, DDR4 SSD: 512GB/1TB Storage 15.6 Inch IPS FHD 350nits, sRGB...
-
Page 2: Table Of Contents
Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 2/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 Table of Contents 1 EXPLODED VIEW ................................3 2 SCREWS INFO ..................................6 3 SERVICE DEVICES ................................8 4 SOFTWARE UPDATE .................................8 5 DISASSEMBLY INSTRUCTIONS（IMPORTANT STEP REMARK*AND RED COLOR）... -
Page 3: Exploded View
Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 3/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 1 EXPLODED VIEW 73373300001 73343300002 74503300005 74503300003 73343300001 Shaft cover B Shell Main Antenna A Shell LVDS 73553300001 72823300001... - Page 4 Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 4/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 72653300002 72643300001 74503300001 72823300002 Touchpad ASM Screen ASM Main FPC Thermal Module 72833300001 72683300001 75233300003 75233300004 74503300002 74533300001 SSD 512G...
- Page 5 Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 5/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 73343300003 73343300004 C Shell D Shell Copyrightbelongs to Carlcare, cannot leak without permission...
-
Page 6: Screws Info
Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 6/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 2 SCREWS INFO Code 74003300001 74003300004 74003300003 74003300002 74003300006 74003300005 ① ② ③ ④ ⑤ ⑥ Mark SPEC CM2.0*2.5 CM2.0*3.5... - Page 7 Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 7/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 Copyrightbelongs to Carlcare, cannot leak without permission...
-
Page 8: Service Devices
Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 8/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 3 SERVICE DEVICES Tools for upgrade Micro USB Cable Hexagonal Screwdriver( Disassemble Stick 1 Phillips Screwdriver Tools for disassemble... -
Page 9: Disassembly Instructions（Important Step Remark*And Red Color

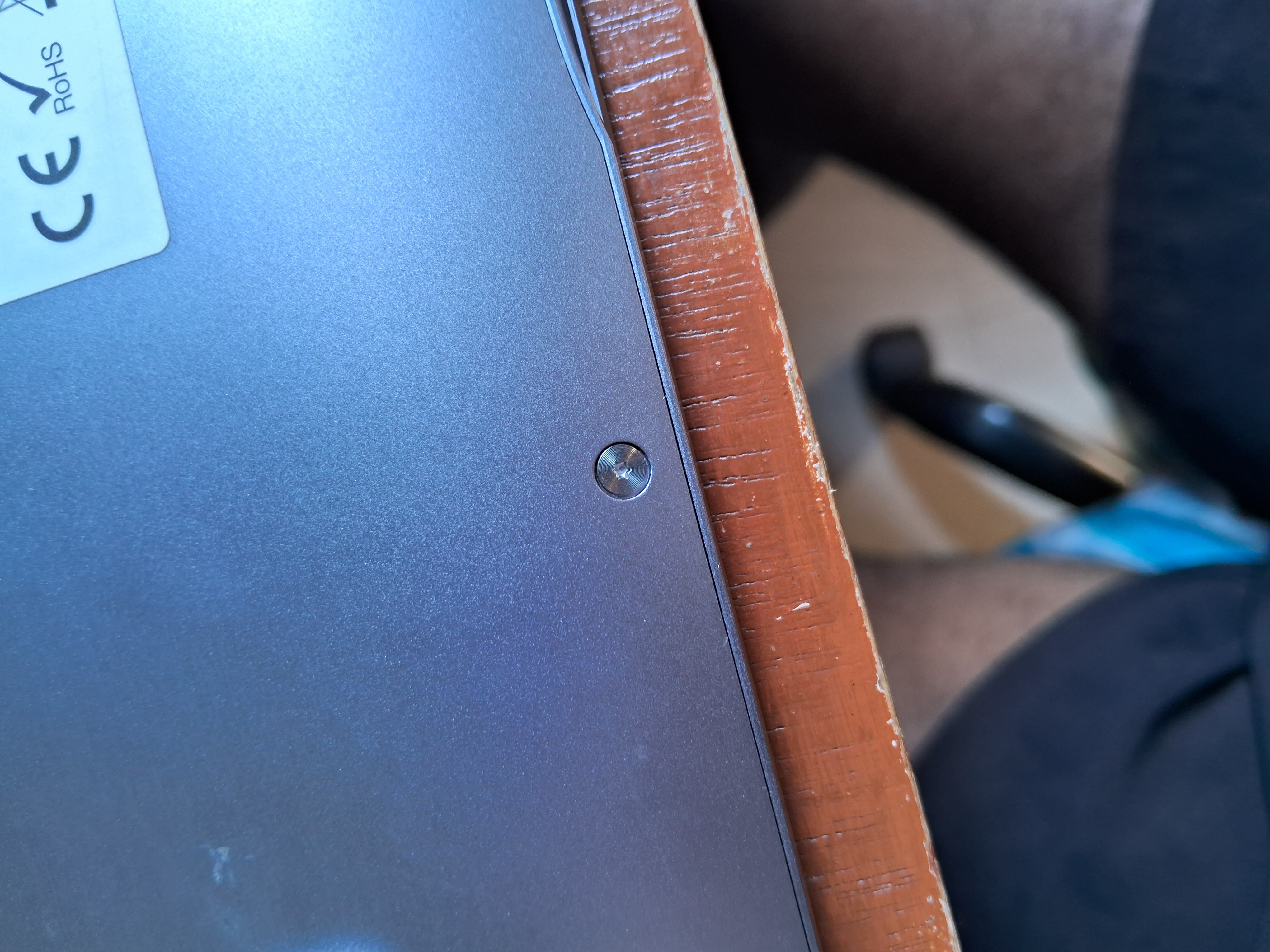

Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 9/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 5 DISASSEMBLY INSTRUCTIONS（IMPORTANT STEP REMARK*AND RED COLOR） 1.Power off the Laptop, then screw off 9 2. Disassemble D shell from the top, as silver screws. - Page 10 Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 10/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 8. Remove fan and thermal module, as 7. Disassemble fan connector, as shown shown above. above. 9.Disassemble LCD connector, as shown 10.
- Page 11 Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 11/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 *14.Open the screen to 90 degrees, then 13.Screw off 6 black screws, as shown remove the screen assembly, as shown above.
- Page 12 Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 12/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 20. Disassemble 2 speaker, as shown 19. Remove PCBA, as shown above. above. 22.Screw off 2 black screws, as shown 21.Use disassemble stick to open main...
- Page 13 Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 13/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 26. Use disassemble stick to open touch 25.Use tweezers to disassemble fingerprint pad connector , as shown above. module, as shown above.
- Page 14 Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 14/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 31.Use screwdriver to insert shaft cover to 32.Remove shaft cover, as shown above. disassemble shaft cover, as shown above.
- Page 15 Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 15/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 37.Use tweezers to tear off 2 Wifi 6 38.Remove 2 Wifi 6 antenna, then screw off antenna carefully, avoid to damage it, as 8 black screws, as shown above.
-
Page 16: Notice Of Repair
Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 16/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 6 NOTICE OF REPAIR Serial Number Detail Description Picture T1 has 6 different kind of screws, please notice the position, do not... -
Page 17: Notice Of Test
Document Number Document Name Page TECNO Megabook T1 Service CCTM2022160 17/17 Manual Security Classification Release Time Version Internal Use 2022-09-15 V1.0 When you replace a new main board, please write SN number in the new main board. The SN number can be old SN, or new one that get from HQ.
