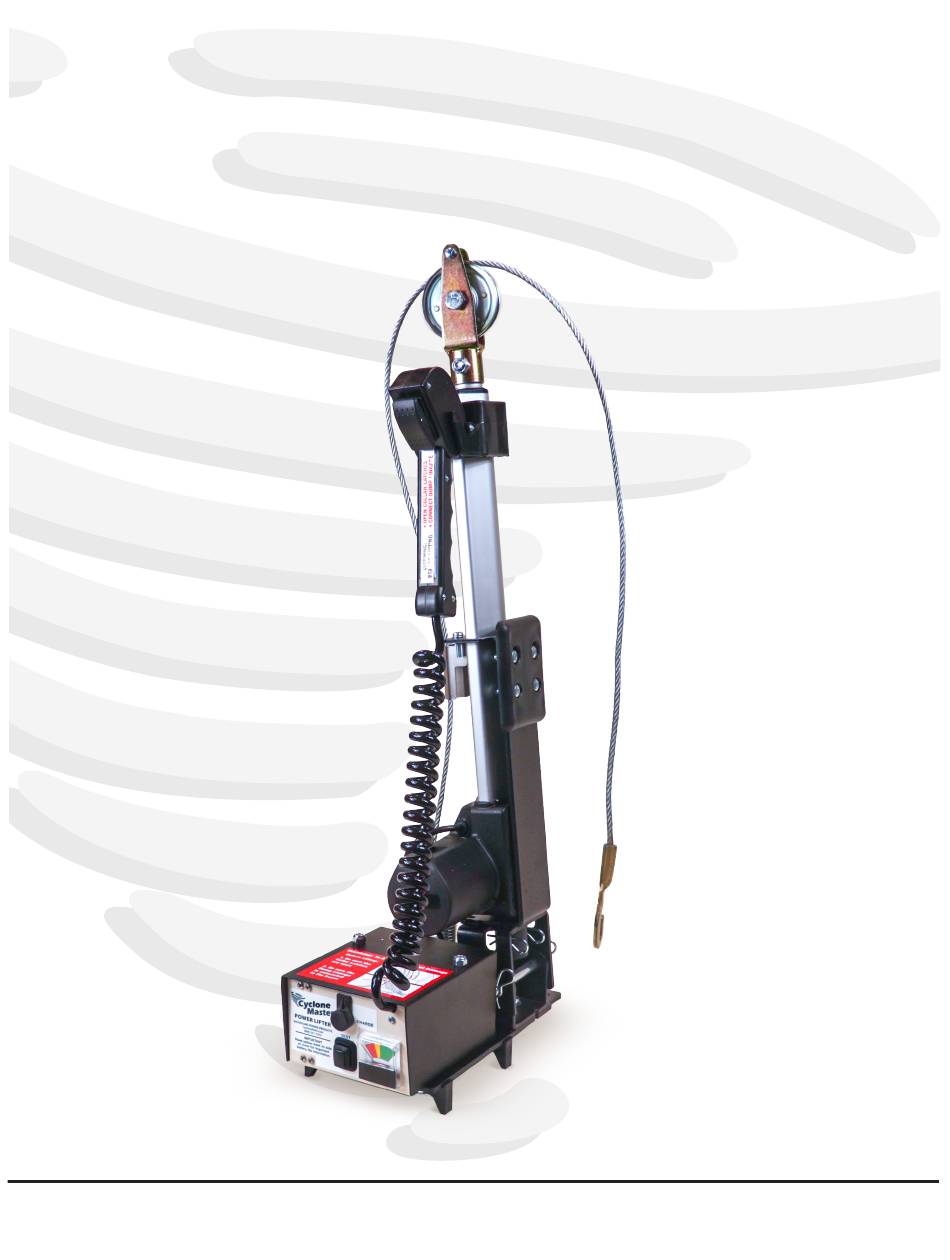

- Page 1 Cyclone Power-Lift Unloader Operation & Assembly Instructions WOODLAND POWER PRODUCTS , INC TOLL-FREE 1-(888)-531-RAKE 72 Acton Street, West Haven, Connecticut 06516 01-06-130 S21 www.CycloneRake.com ©2021, Woodland Power Products, Inc.
-
Page 2: Safety Warning
SAFETY WARNING Always be sure both bag collar latches are open and the dump linkage is attached to the collector frame before using the Power Lifter. Observe the warning label on top of the Power Lifter battery cover. Equipment damage can result if you do not follow these steps. -
Page 3: Threaded Stud
ASSEMBLING THE POWER-LIFT UNLOADER See Section 2, Assembling the Power-Lift Unloader, on page 7. Then return here for mounting and operating instructions. MOUNTING THE POWER LIFTER TO YOUR CYCLONE RAKE Set up your Cyclone Rake and mount Fig. 1 the engine unit. Leave off the Engine Clamp Knob closest to the collector frame. -
Page 4: General Information
USING THE POWER-LIFT UNLOADER General information • A fully-charged battery in good condition will provide power for about 25 to 40 loads of Cyclone Rake debris. This is many times a typical daily use. • During active season, charge the battery overnight after each day’s use. See the yellow label on side of battery cover for additional information on proper battery care. - Page 5 CYCLONE POWER-LIFT UNLOADER Cyclone Master Hand Control Hand Control Switch has three positions: “UP” (momentary), “NEUTRAL” (detent) and “DOWN” Hand Control Neutral Switch (momentary). You can stop the up or DOWN down cycle at any point. The motor will shut off at the end of travel, either up or down.
- Page 6 The legs of the Linear Actuator should be outside the legs of the Pivot Bracket. Linear Actuator Attach the Pulley Assembly and Cyclone Master includes a hand control like this tighten the connecting bolt and nylon lock nut securely. Tool Required Phillips Screwdriver...
- Page 7 MOUNT THE RETURN SPRING Hook one end of the Return Spring over the Spring Holder and the other plain nuts at end through the U-bolt. Be sure top of threads the U-bolt has two ¼-20 plain nuts which are screwed all the way to the top of the U-bolt threads, as shown nylon lock nuts in the inset illustration.
- Page 8 CONNECT THE ELECTRIC WIRES Remove the Battery Cover by nylon removing the two nylon lock nuts lock nuts on top. Lift the cover up over the bolts and slide it off as shown. Do not loosen the Battery Strap inside the cover. Battery Cover teeth Terminal Block...
- Page 9 Collector Bracket ATTACH THE CASTER BRACKET TO THE ENGINE FRAME Set up your Cyclone Rake and mount the engine unit on the chassis. Remove the top nut from the engine frame Caster Wheel, located to the right of the engine recoil starter as shown.
- Page 10 CYCLONE POWER LIFT UNLOADER PARTS LIST 37 10-24 x 1/2 in. Screw ......01-01-173 45 1/4-20 Nylon lock nut ......01-01-157 74 Clamp knob ........... 01-01-291 146 Bridge pin, 42 mm ......... 01-01-473 225 3/8 Nylon lock nut ......... 01-01-240 273 10-24 Low height nylon lock nut ....01-01-199 312 M5 Nylon lock nut, 0.8 mm pitch ..01-01-1122...
