Manson Engineering Industrial EP-800 Series User Manual

EP-800 SERIES DC REGULATED POWER SUPPLY
I. GENERAL
EP-800 Series DC Regulated Power Supply is a completely solid state, compact, well
regulated, constant voltage power supply suitable for service field, hobby & especially for
telecommunication equipment use. For safety purpose, a three-wire power cord is provided.
II. FEATURES
1. Overload and Short Circuit Protection: Prevent the unit from overload and short circuit.
When the unit is under the condition of overload or short circuit, the output current will
be limited.
2. Two different output terminals are provided: Easy Snap on output terminals for small
current output and screw-on output terminals.

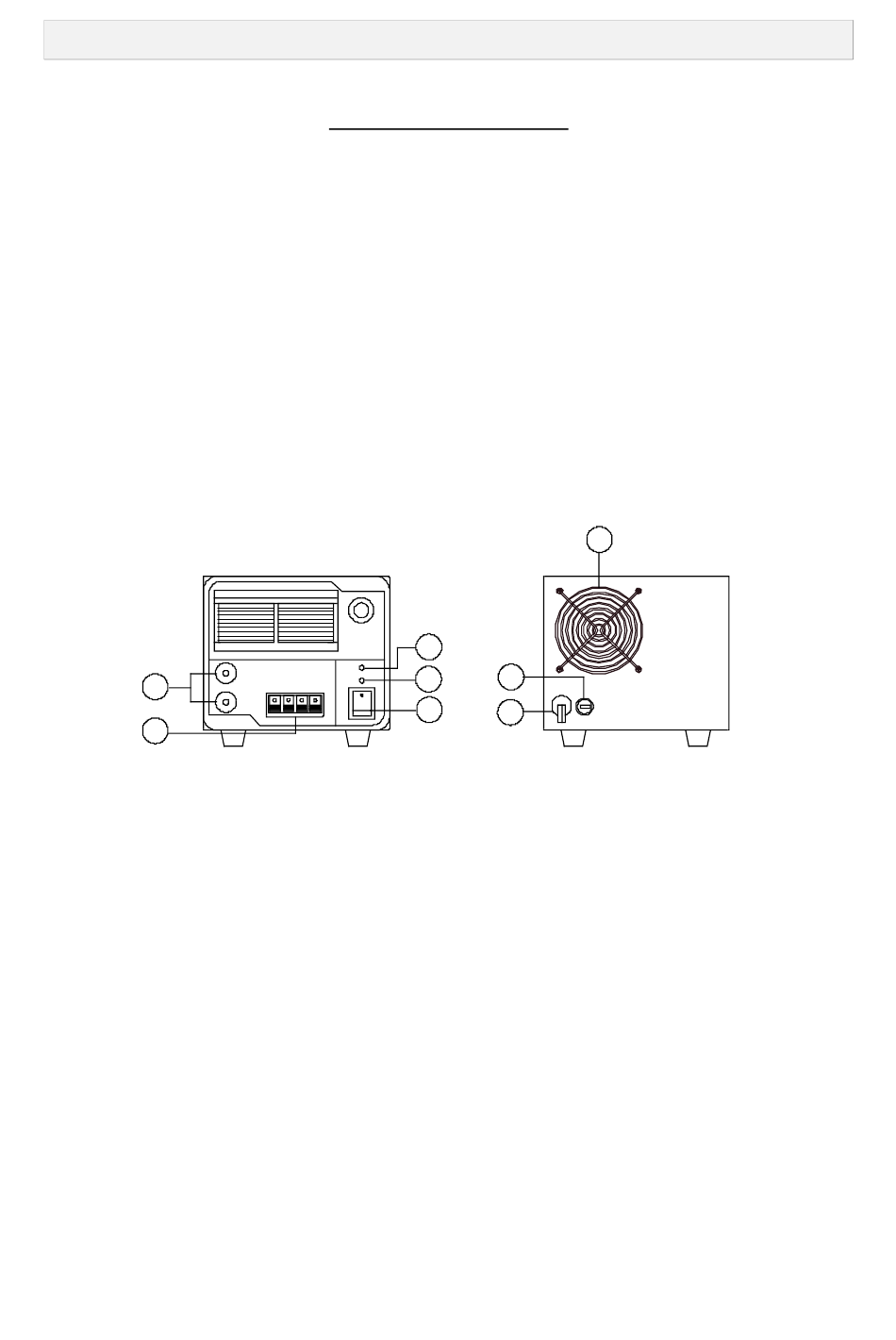

III. FRONT AND REAR PANELS
4
5
1. ON/OFF Switch
2. Power Indicator
3. Overload Indicator
4. Main Output Terminals
IV. OPERATION
A. Installation:
1. Place the unit in a location where allows free air circulation.
2. DO NOT place the unit in high humid, dusty and/or sunshiny places.
The input power source must be ±5% of the rated input voltage.
3.
B. Caution:
1. DO NOT use the unit for equipment that requires higher current ratings than the unit is
designed for, otherwise damage could occur to the unit.
2. DO NOT replace the fuse before ceasing the problems and assigned value of fuse must
be used in place.
USER'S MANUAL
3
2
1
5. Easy Snap-On Output Terminal
6. Fuse Holder
7. Power Cord
8. Cooling Fan Air In-take Window
8
6
7
