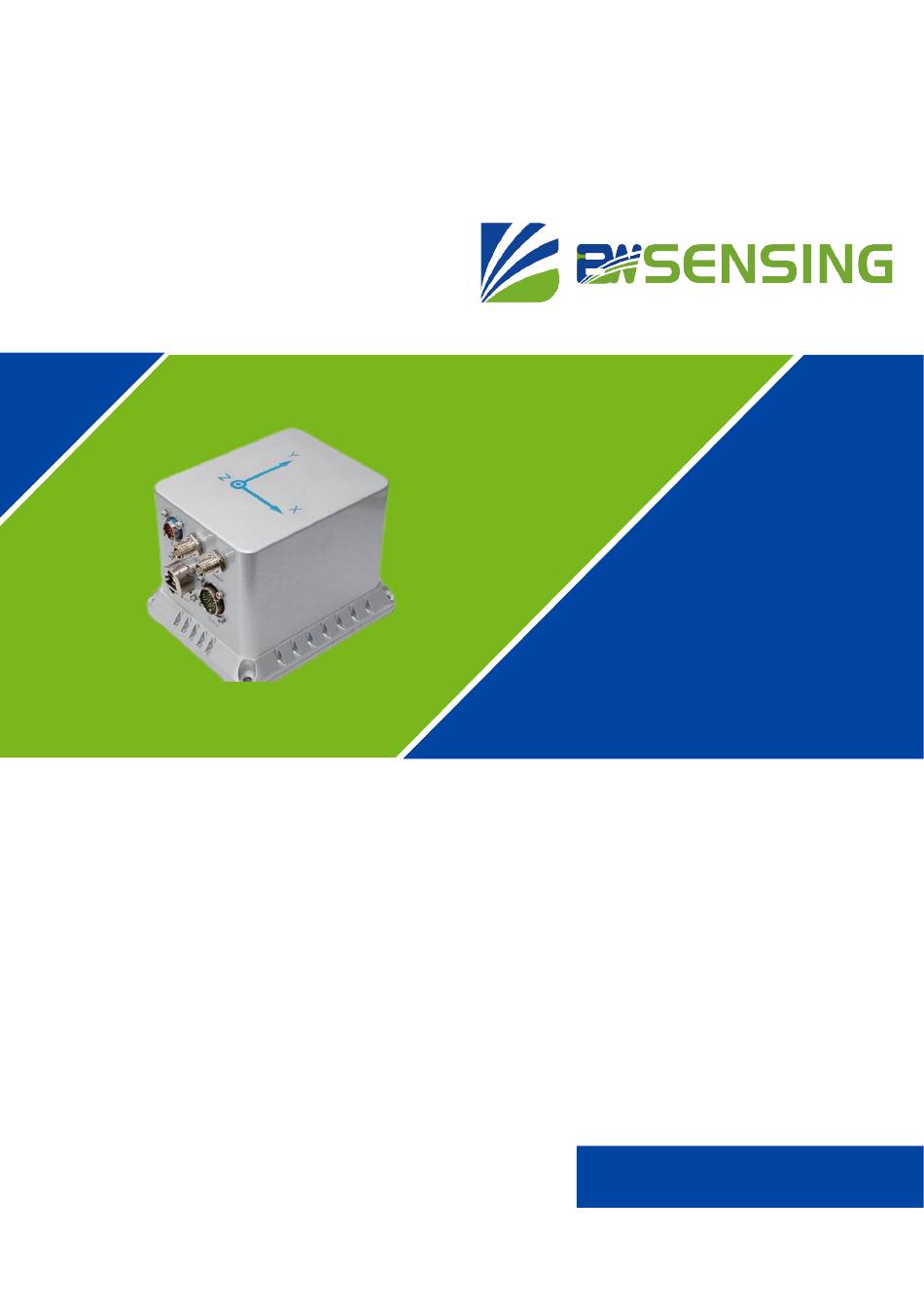

- Page 1 GI2200 Series Fiber Optic Integrated Navigation System Technical Manual V3.0...
- Page 2 GI2200 Fiber Optic Integrated Navigation System Introduction BW-GI2200 is a high-performance and high-precision fiber-optic integrated navigation system developed by Bewis for aviation surveying and mapping, unmanned aerial vehicles, sea- based and road-based fields. Built-in three-axis fiber optic gyroscope, three-axis accelerometer, optional three-axis magnetic sensor, high-precision air pressure sensor, including a BD/GPS/GLONASS three-mode receiver.
-
Page 3: Technical Index
GI2200 Fiber Optic Integrated Navigation System Technical index Performance index North Seeking Accuracy(deg) ≤0.05*Secant Latitude Azimuth Accuracy(deg) ≤0.05 External GPS effective 4m Attitude angle Accuracy(deg) ≤0.01 baseline Speed Accuracy(m/s) ≤0.02 Position Accuracy(m) ≤2m/RTK 2cm Azimuth Keeping Accuracy(deg) ≤0.05，1h Attitude angle maintaining ≤0.03，... - Page 4 GI2200 Fiber Optic Integrated Navigation System Product Size Product Size：L160mm×W132 mm ×H117（mm） Note: NO dimension tolerance is specified according to grade C of GB/T1804-2000. Bewis Sensing Technology LLC www.bwsensing.com Tel：+86 18921292620...
-
Page 5: Installation
GI2200 Fiber Optic Integrated Navigation System Installation The GPS antenna we routinely select is a zero-phase measurement one, and general navigation antennas cannot be used in this product. Although some navigation antennas can also be directional, the accuracy will be greatly reduced and errors may also result. If the user replaces an antenna that is not configured or designated by the company, the system will not work properly or other consequences will occur, and the company is not responsible for this. -
Page 6: Electrical Connection
GI2200 Fiber Optic Integrated Navigation System Electrical connection Data cable RS422 interface definition, DB9 female: DB9 Connector pin Interface Definition Remark Receive positive Receive negative Send positive Send negative Debugging software Steps for usage： ① Ensure that the inertial navigation is absolutely stationary, correctly connect the serial port hardware of the integrated navigation, and connect the power supply. - Page 7 GI2200 Fiber Optic Integrated Navigation System Protocol After the system works, it broadcast navigation data to the outside during normal operation on 100Hz Frequency and RS422 communication 115200bps, n, 8, 1, 48 bytes of data per frame is shown in the following table: Navigation Data Byte No.
- Page 8 GI2200 Fiber Optic Integrated Navigation System 30-33 float (Low byte first, High byte last) ，Ranges[- GPS Latitude after satellite 90,90] °，The north latitude is positioning, Unit degree positive and the south latitude is negative. Low byte first, 34-37 float ( High byte last ), Ranges [- Longitude after GPS satellite...
- Page 9 GI2200 Fiber Optic Integrated Navigation System Executive standard ● Enterprise Quality System Standard: ISO9001:2015 Standard (Certificate No.064-21-Q- 3290-RO-S) ● CE certification (certificate number: M.2019.103. U Y1151) ● ROHS (certificate Number: G 190930099) ● GB/T 191 SJ 20873-2003 General specification for inclinometer and level ●...
- Page 10 GI2200 Series Fiber Optic Integrated Navigation System Wuxi Bewis Sensing Technology LLC Add：Building 30, NO. 58, Xiuxi Road, Binhu District, Wuxi Jiangsu China Tel：+86 18921292620 Mail：sales@bwsensing.com Web：www.bwsensing.com...
