Projector Manual

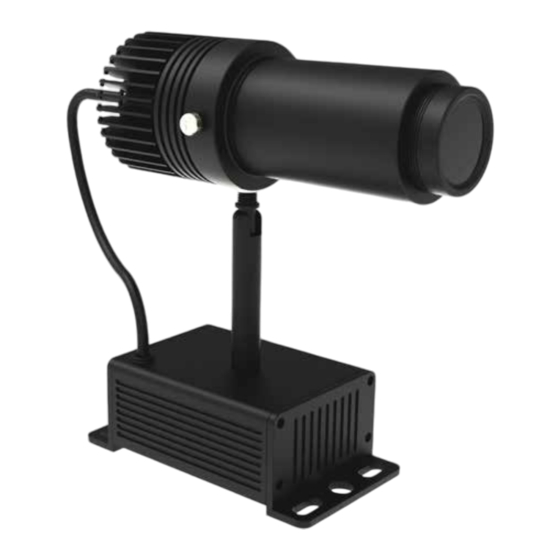

10 Watt LED Gobo Projector
Manual updated 08/04/24
All gobo projector information can be viewed via www.projectedimage.com via the product page for
this item. If any further information is required, contact via email to gobo@projectedimage.com
www.projectedimage.com
gobo@projectedimage.com
+44 (0) 191 265 9832
1
Advertisement
Table of Contents
Related Manuals for Projected Image 10 Watt LED Gobo Projector
Summary of Contents for Projected Image 10 Watt LED Gobo Projector
- Page 1 Projector Manual 10 Watt LED Gobo Projector Manual updated 08/04/24 All gobo projector information can be viewed via www.projectedimage.com via the product page for this item. If any further information is required, contact via email to gobo@projectedimage.com www.projectedimage.com gobo@projectedimage.com +44 (0) 191 265 9832...
-
Page 2: Table Of Contents
Contents ...03 Introduction Dimensions ...04 Gobo Information ...05 ...05 Gobo Replacement Safety Information ...06 Installation Information ...08 Driver and AC Information ...09 Maintenance and Cleaning ...10 Fixture Overview ...11 Terms and Conditions ...12 Returns Policy ...12 www.projectedimage.com gobo@projectedimage.com +44 (0) 191 265 9832... -
Page 3: Introduction
Introduction General Information Detailed Information The Projected Image 10 Watt LED is a dynamic effect lamp Ultra bright 10W Cree LED that projects sharp images from user-supplied glass or 2000 lumens and 7500K colour temperature metal 37.5mm gobos. It has a 10W LED engine with long- Lamp life: life white LEDs. -
Page 4: Dimensions
Dimensions 65mm 80mm Front View Rear View 180mm 125mm Horizontal Vertical www.projectedimage.com gobo@projectedimage.com +44 (0) 191 265 9832... -
Page 5: Gobo Information
Gobo Information Monochrome Glass Gobo Colour Glass Gobo 37.5mm 37.5mm 25mm 1.1mm 25mm Above are the Outer Diameter, Safe Area and Gobo Thicknesses for monochrome and colour gobos. Metal gobos can also be used, manufactured to the same dimensions. Do not use film gobos. Gobo Replacement Video Demonstration... -
Page 6: Safety Information
Install, operate and service the Projected Image 10 Watt LED projector only as directed in the user manuals, or you may create a safety hazard or cause damage that is not covered by product warranties. - Page 7 Isolate the fixture from power immediately if the impaired, for example by cracks or deep scratches, power plug or any seal, cover, cable, or other please contact Projected Image. component is damaged, defective, deformed, wet or Block access below the work area and work from showing signs of overheating.
-
Page 8: Installation Information
Installation Information Physical installation Read ‘Safety information’ on pages 6 and 7 before installing the fixture. The fixture is designed for indoor use only. It must be used in a suitable location and provide adequate ventilation. The fixture presents risks of severe injury or death due to fire hazards, electric shock and falls and is not intended for truss mounting or installation with rigging clamps. -
Page 9: Driver And Ac Information
Driver and AC Information Driver Specifications Input Input Voltage Range Frequency Range AC Current 85~265VAC 50/60Hz 0.285/110VAC, 0.163/230VAC Output Output Voltage Rated Current Rated Power Voltage Tolerance 24-36V 0.25A ±5.0% Socket outlets or external power switches used to supply the fixture with power must be located near the fixture and easily accessible so that the fixture can easily be disconnected from power. -
Page 10: Maintenance And Cleaning
Check again at frequent intervals. This procedure will allow you to assess cleaning requirements in your particular situation. If in doubt, please contact Projected Image about a suitable maintenance schedule. Use gentle pressure only when cleaning, and work in a clean, well-lit area. Do not use any product that contains solvents or abrasives, as these can cause surface damage. -
Page 11: Fixture Overview
Fixture Overview Specifications Projector Box Items Horizontal Position: 180mm Length, 200mm Height, 20º Lens 80mm Width. Custom gobo in gobo holder / Projector Vertical Position: 140mm Length, 225mm Height, Gobo holder clip 80mm Width Power cable, 1.9 m (with mains plug) Weight: 1.5 Kg Disposing of this product Gobo Projection: Static... -
Page 12: Terms And Conditions
Terms & Conditions Risk in and Ownership of the Goods Returns Policy Risk in the Goods shall pass to the Buyer on delivery. 1. All of our projectors come with a 1 year warranty. Ownership in the Goods shall not pass to the Buyer 2.
