USER MANUAL
BrightBeats Mobile Wireless DMX Controller
Page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobile Wireless DMX Controller and is the answer not in the manual?

Questions and answers

Summary of Contents for BrightBeats Mobile Wireless DMX Controller

  • Page 1 USER MANUAL BrightBeats Mobile Wireless DMX Controller Page 1 of 16...
  • Page 2 Important Information Warnings • Connect this unit’s power cord only to an AC outlet of the type stated in this Owner’s Manual or as marked on the unit. Failure to do so is a fire and electrical shock hazard. • Be sure to connect to an appropriate outlet with a protective grounding connection. Improper grounding can result in electrical shock.
  • Page 3 Cautions • Keep this unit away from the following locations: — Locations exposed to oil splashes or steam, such as near cooking stoves, humidifiers, etc. — Unstable surfaces, such as a wobbly table or slope. — Locations exposed to excessive heat, such as inside a car with all the windows closed, or places that receive direct sunlight.
  • Page 4 The material in this manual is for information purposes only and is subject to change without notice. BrightBeats, LLC assumes no responsibility for any errors or omissions which may appear in this manual. Copyright No part of the Mobile Wireless, its software, or this Owner’s Manual may be reproduced or distributed in any form or by any means without the prior written authorization of BrightBeats, LLC.

  • Page 5: Warranty Term

    BrightBeats, LLC warrants for NINETY (90) days the battery pack in the controller. BrightBeats, LLC warrants for NINETY (90) days any spare part it manufactures. On spare parts or products BrightBeats, LLC does not manufacture, BrightBeats, LLC will grant the same warranty given BrightBeats, LLC by its vendors.

  • Page 6: Setting Up Your System

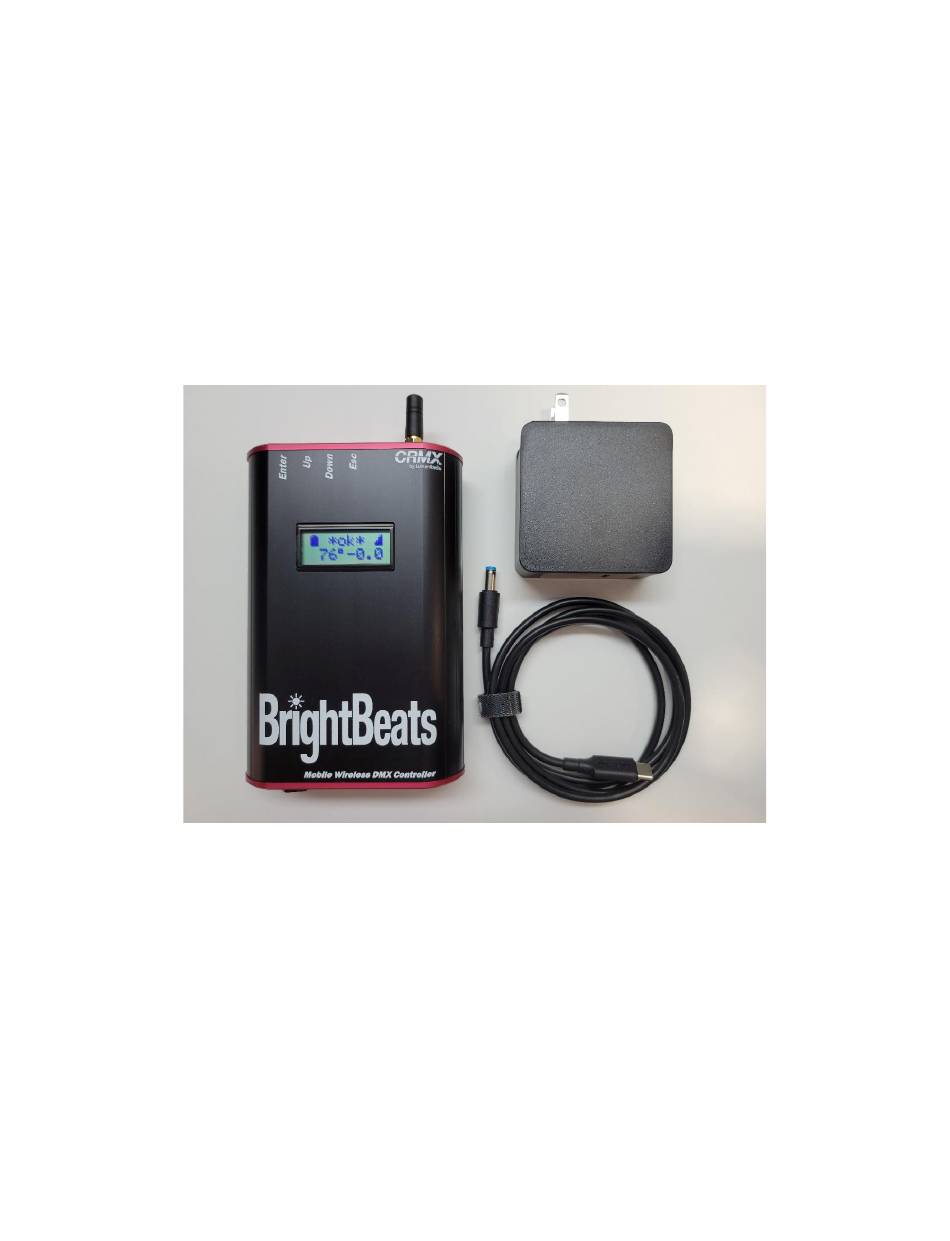

    Thank you for purchasing the BrightBeats Mobile Wireless DMX controller. The Mobile Wireless controller has the following features: Lumen Radio CRMX spread spectrum wireless DMX module Full RGB LED color control DMX integration for output control 36 watts continuous output at 12 volts...

  • Page 7: Output Connection

    This system has also been tested with Roland VDrum controllers as well as 2Box. You can split the trigger output from a drum or cymbal with a "Y" cable and feed both the drum controller and the Mobile Wireless. If the drum is a dual zone with a TRS connector, you will have to choose which trigger to use from the splitter and make a custom cable that only connects to one of the outputs.
  • Page 8 DC Input (Charge Jack) The DC input jack requires 20 volts DC and up to 4 amps maximum if both charging the batteries and driving the maximum length of LED’s supported. It is not recommended to both charge and drive LED’s at the same time since that will generate a lot of heat and will result in the charger shutting down due to battery temperature.

  • Page 9: Software Configuration

    Software configuration All software settings are stored in non-volatile flash. The menu navigation buttons are on the top panel. ** Changes are not saved until you exit all the way to the main or “top” menu. Be sure to exit to the top menu before powering off the unit or changes will not be saved! Channel Input Gain (Trigger Gain) Trigger sensitivity setting.

  • Page 10: Output Settings

    Output Settings From the home screen press Enter. Now scroll down to Output and press Enter again with Output highlighted. Several menu options are available: Red LED level (Ignored when DMX is enabled) Green LED Level (Ignored when DMX is enabled) Blue LED Level (Ignored when DMX is enabled) Hold Time Fade Speed...

  • Page 11: Wireless Radio

    Wireless Radio The Mobile Wireless controller includes one of the most advanced CRMX radio modules available. The CRMX radio module is manufactured by Lumen Radio. This section covers how to program and use this module. To view or change the link configuration go to the radio menu. From the home screen press Enter.

  • Page 12: Dmx Settings

    DMX Settings DMX provides full control of the Mobile Wireless from lighting software or hardware. For the unit to respond to DMX commands it must be enabled in the software. From the home screen press Enter. Now scroll down to DMX and press Enter again with DMX highlighted. From here you can press Enter on each option and toggle the DMX status and channel.

  • Page 13: Factory Reset

    From the main menu, scroll down to System and press enter. On the next menu, select Info and press enter. Should a system update be needed, the controller would need to be sent back to BrightBeats to have it updated.

  • Page 14: Battery And Charging Information

    Battery and Charging Information The Mobile Wireless internal battery is a Nickel Metal Hydride battery pack. The amount of run time from a full charge will vary but as a general guide, a fully charged battery at room temperature will give about 30 minutes of always on full LED output at 3 amps (36 watts) for 30 minutes.
  • Page 15 When the charging cable is connected and the charger starts to charge the battery, the display will show a plug icon in the top left and the display will show +2.0 for the charge rate. When the battery is about 95% charged the charger goes into “Top off” mode. This will be indicated by a T icon displayed in the top left of the display.
  • Page 16 BrightBeats, LLC 77 E Halsey Rd Parsippany, NJ 07054 www.usabrightbeats.com sales@usabrightbeats.com Page 16 of 16...
