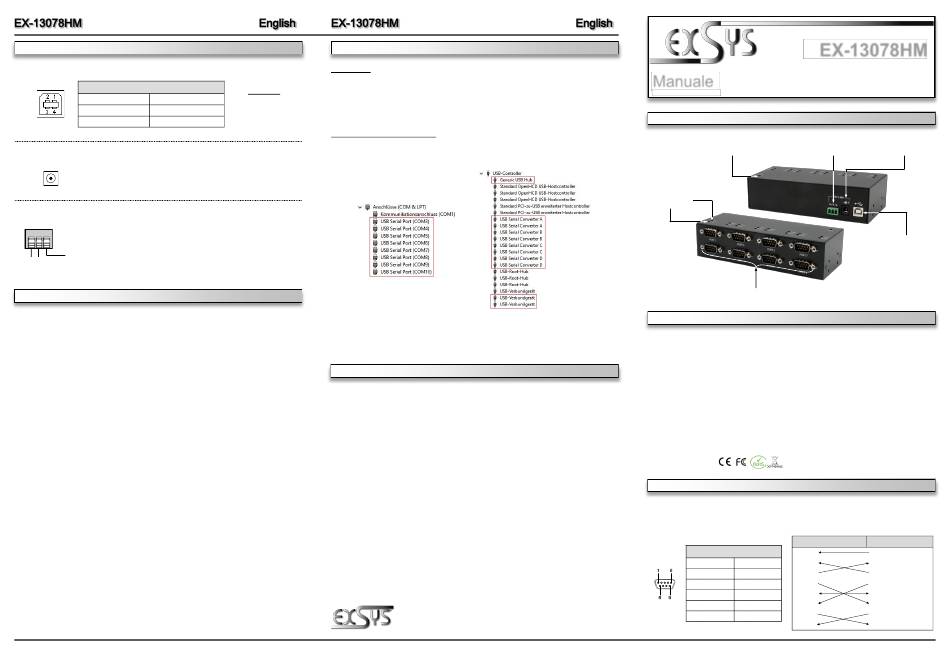

Exsys EX-13078HM Manual

CONNECTORS
USB 2.0 B-Port:
USB 2.0 B-Port
Pin Signal Pin Signal
1 VCC 3 DATA+
2 DATA- 4 GND
DC-Connector 9 - 48V:
ATTENTION !!!
Only for use with optional original power supply !!!
T-Block 9 - 48V:
ATTENTION !!!
Never connect power to GND it will destroy your Hardware!!!
–
+
GND (Ground)
9V - 48V
HARDWARE INSTALLATION
Please note the following installation instructions. Since there are great differences between
PC's, we can only give you general instructions for connecting the EX-13078HM. If anything is
unclear, please refer to the operating instructions of your computer system.
1. Install the EX-13078HM on a mounting rail by using the DIN-Rail kit or on a wall by using
the mounting bracket which both are includes in the extend of delivery.
2. Connect the supplied USB 2.0 cable to the USB 2.0 Upstream B-Port of the module.
3. Now connect the other end (A-Connector) of the supplied USB 2.0 cable to the USB A-Port on
your PC.
5
DRIVER INSTALLATION
Windows
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver should not be installed automatically, please download the driver from our
Attention!
homepage (www.exsys.de) first. Now select the folder of your operating system and install the
Never plug in with
driver. Follow the installation instructions and complete the installation. Important! Restart your
force or in wrong
direction. PC after the installation.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
Controller" the following new entry:
If you see this or a similar information the device is installed correctly.
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
STRUTTURA
Stato dei LED
per ogni Porta
DESCRIZIONE & DATI TECNICI
L'EX-13078HM è un modulo per la conversione da USB 2.0 in otto interfacce RS-232 con porta
FIFO 16C550 per collegare diversi dispositivi periferici in seriale RS-232 ad alta velocità (ad
esempio modem, plotter, ecc.). L'EX-13078HM è dotato di una presa USB 2.0 Type-B per il
collegamento al PC e di otto connettori a 9 pin Seriali RS-232 . Il modulo USB è compatibile con
Hot Plug & Play. Non sono necessari ponticelli per impostare gli indirizzi I/O e gli interrupt,
poiché le impostazioni vengono effettuate automaticamente dal BIOS del sistema e durante
l'installazione del sistema operativo
Compatibilità:
Sistemi Operativi:
Attacchi:
Confezione:
Certificati:
ATTACCHI
Assegnazione dei pin in RS-232 :
DB 9M
Italy:
Switzerland:
EXSYS ITALIA SRL
EXSYS Vertriebs GmbH
Via Belvedere, 45/B
Dübendorfstrasse 17
22100 COMO (CO)
8602 Wangen
www.exsys.it
www.exsys.ch
6
EX-13078HM
Manuale
Vers. 1.0 / 27.07.22
T-Block 9-48V per
Alimentazione
LED di funzionamento
Opzionale
S1 - S8: Connettore seriale 9 pin D-SUB
USB 1.1, 2.0 & 3.2
Windows 9.x / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /
Linux / MAC
8x 9-Pin D-Sub, 1x USB 2.0 Type-B, 1x JACK DC 9-48V,
1x Terminal Block 9-48V
EX-13078HM, Cavo USB 2.0, Staffa montaggio, kit guida DIN, Manuale
Cablaggio in RS-232
DB9 (EX-13078HM)
9-Pin Seriale RS-232 1 DCD
Pin Segnale Pin Segnale 2 RXD
1 DCD 6 DSR 3 TXD
4 DTR
2 RXD 7 RTS
5 GND
3 TXD 8 CTS
6 DSR
4 DTR 9 RI
7 RTS
5 GND
8 CTS
1
Jack DC9-48V per
Alimentazione
esterna
USB 2.0 Type-B
Collegamento PC
RS-232 (Terminale)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
