Stratus ztC Edge 200i Manual

Use only for initial deployment.
For adding a second node, see ztC Edge
200i/250i Systems: Adding a Node.
Monitor
(HDMI)
1/8" Slotted #2 Phillips
screwdriver screwdriver
(if mounting) (if mounting)
ztC Edge 200i Systems
P2 P1
SYS
1 2 3
1. Power button
2. USB port (keyboard)
3. P1 port (LAN)
4. A2 port (blue network)
For ztC Edge Release Notes and documentation, please visit http://ztcedgedoc.stratus.com.
To access other ztC Edge self-help resources, including Knowledge Base articles and software downloads,
visit Stratus Customer Service at http://www.stratus.com/support.

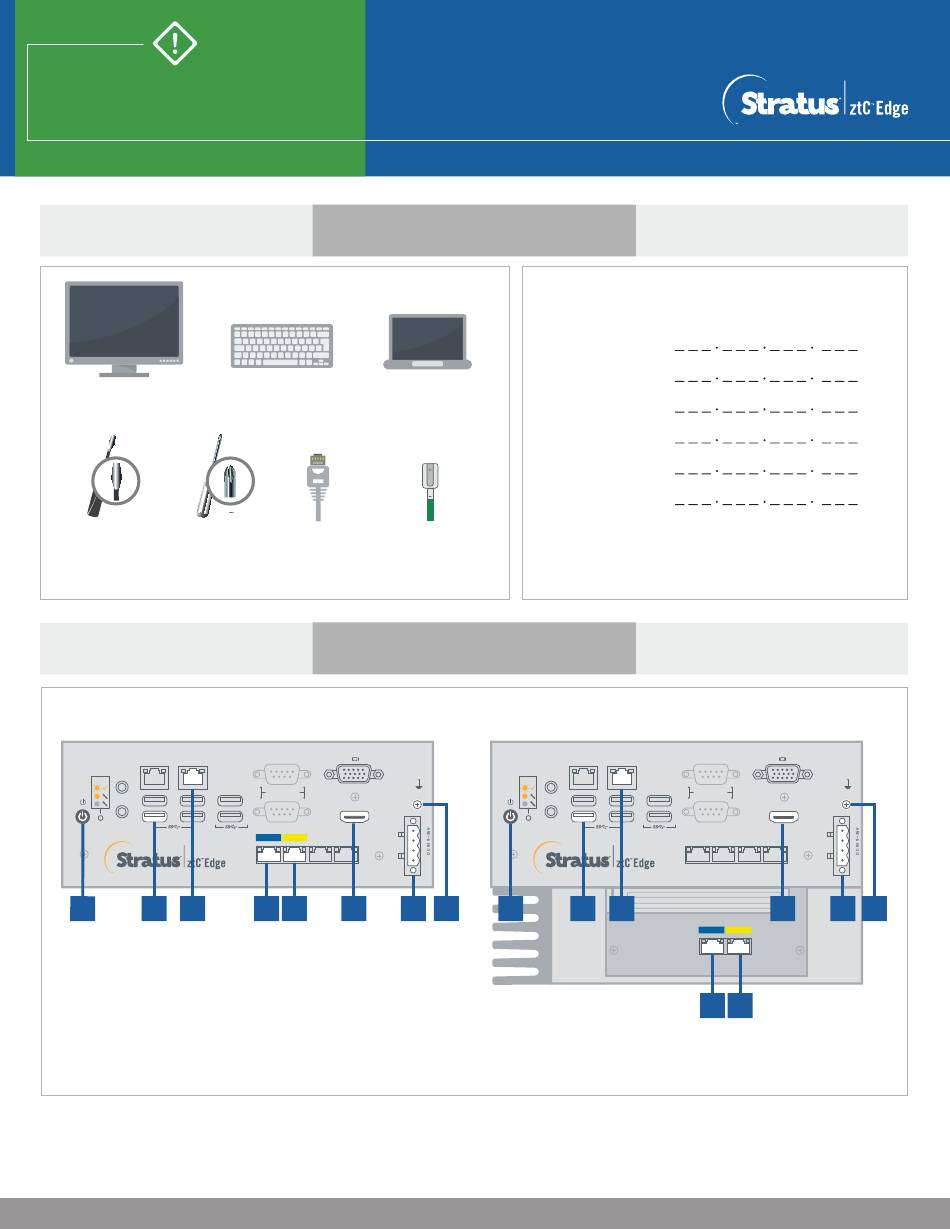

ztC Edge 200i /250i Systems: Deploying a Single-Node System
User-supplied Components
Keyboard Networked PC
(USB) or laptop
Network Signal ground wire
cable and connector
(optional)
Systems Overview
Inactive ports
(Do not use)
10
HDMI
P6 A2 A1 P5 P4 P3
4 5 6 7
5. A1 port (yellow network)
6. HDMI port (monitor)
7. Power connector
8. Signal ground connector
Contact network administrator for settings.
If using DHCP, only static System IP address required.
System IP address
(static required)
Node0 IP address
Gateway address
Network mask
DNS servers
(System and node IP address must be on same subnet.)
New admin password ________________________________________
ztC Edge 250i Systems
P2 P1
SYS
8 1 2 3
Inactive ports
(Do not use)
10
HDMI
P6 P5 P4 P3
6 7
A2 A1
4 5
8
