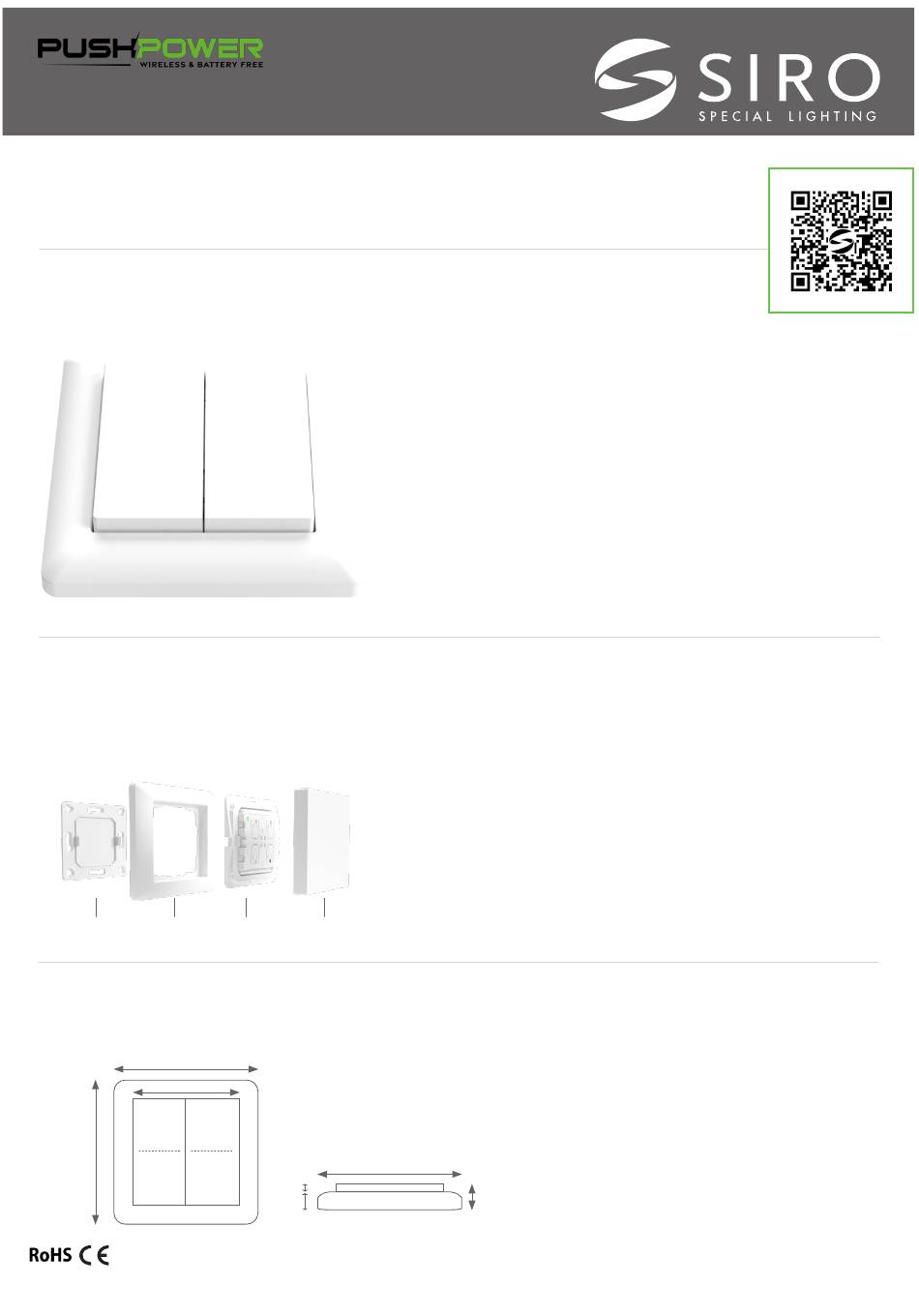

Instruction
SL-PP55W4K60

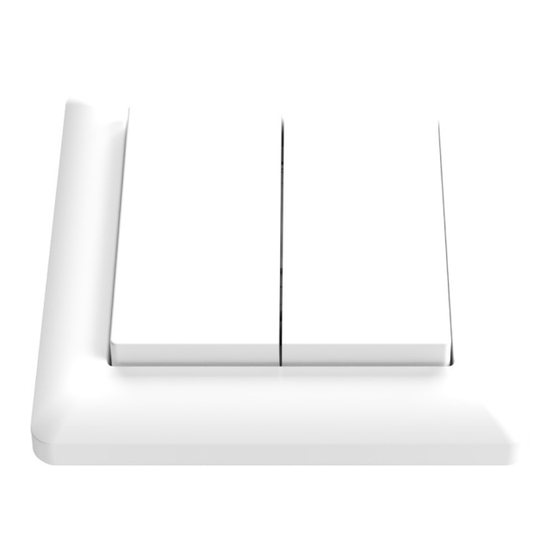

2-way switch for 55 mm frame (white)
Thank you for choosing a SIRO light switch!
These simple instructions will help you to install and use your new switch.
SWITCH DESIGN
1
2
Cover frame
3
Radio module
4
Rocker (2-way)
1
2
DIMENSIONS
`
Switch incl. frame (LxWxH):
`
Switch without frame (LxWxH):
80 mm
55 mm
1
80 mm
2
Must not be disposed of with household waste.
Must not be disposed of in household waste.
Base plate
3
4
80 x 80 x 17 mm
55 x 55 x 17 mm
3
80 mm
4
5 mm
12 mm
PRODUCT FEATURES
`
4-way switch for controlling SIRO PUSHPOWER receivers
Compatible with many 55mm switch frame systems.
`
`
No battery and no wiring necessary!
`
Battery-free device without external power supply.
`
Transmission energy is generated from mechanical energy when the rocker is
actuated.
`
Radio-based range of up to 80 meters outdoors.
`
1 button can be connected to any number of Push Power Receivers.
`
Toggle switch function when using multiple switches.
`
Four independent MONO areas or two DUO areas can be controlled.
`
Available in white (K60) and black (K1) versions
`
Frame and base plate included in the scope of delivery.
ASSEMBLY
`
On appliance box according to DIN 49073 or on smooth, flat surfaces by scre-
wing or gluing.
`
1. The substrate must be clean, grease-free and stable. 2. Press the base plate
(1) onto the adhesive points or fix it with screws. 3. Place the cover frame (2) on
the base plate. 4. Attach the radio module (3). 5. Attach the rocker (4).
TECHNICAL FEATURES
`
Transfer protocol:
`
Range (without mesh):
`
IP Rating:
SAFETY AND INSTALLATION INSTRUCTIONS
`
DThis product is not a toy and is not suitable for children!
`
The SIRO LED system is designed for indoor use.
`
Unprotected outdoor use is not permitted.
`
Contact with moisture must be avoided at all costs!
17 mm
SIRO Beschläge- und
Metallwarenfabrik
Spielfeldstrasse 12
4452 Ternberg, Austria
RF 433 mhz
30 meters (indoors)
IP20
Tel . +43 (0)7256.6020.0
© 2024 All rights
Fax . +43 (0)7256.8932
reserved. All rights
E-mail office@siro.at
reserved
Version 01/24
Web . www.siro.at
