AVX10USB

10.1" LCD Monitor with Built-In DVD Player

for Rear Seat Entertainment

Installation and Operation Manual

Table of Contents

Need help?

Do you have a question about the AVX10USB and is the answer not in the manual?

Questions and answers

Summary of Contents for Voxx Electronics AVX10USB

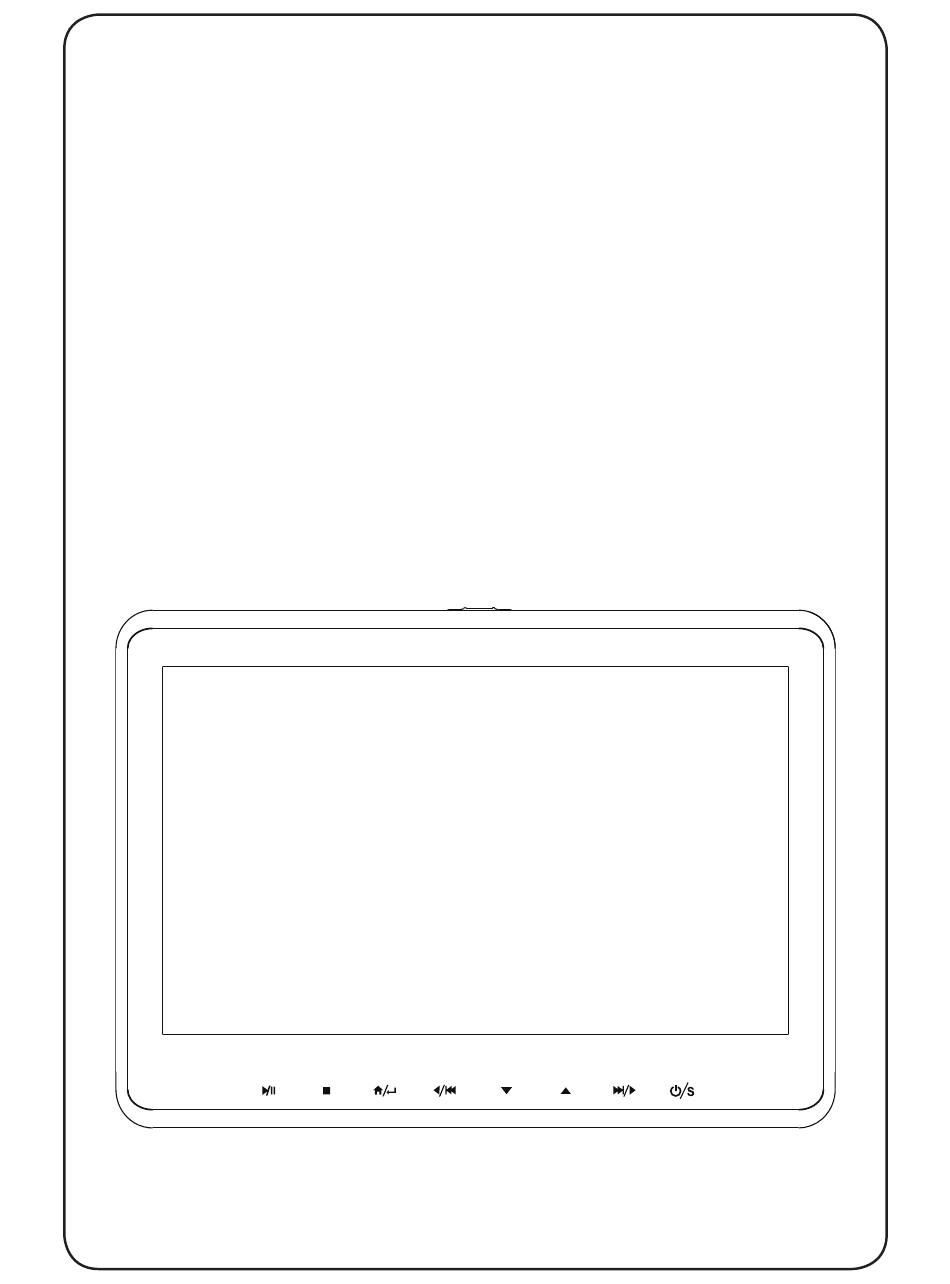

Page 1 AVX10USB 10.1” LCD Monitor with Built-In DVD Player for Rear Seat Entertainment Installation and Operation Manual...
Page 2 Congratulations Congratulations on your purchase of this Mobile Video Rear Seat Entertainment System! The AVX10USB has been designed to provide passengers with unlimited content options delivering smiles for many miles. Please read the directions that follow to familiarize yourself with the product to ensure that you obtain the best results from your equipment.
Page 3: Table Of Contents
Table of Contents Features ......................4 Materials Included ..................5 Docking Bracket installation ..............6 Wiring Diagram ....................7 Control and Indicators Diagram ..............8 Remote Control Operation ...............10 Remote Control Functions ................11 Source Menu ....................15 System Menu Setting and Adjustments ..........17 Playing DVDs and Audio Discs ..............23 Playing USB/CARD Devices ...............23 Playing MP3 Discs ..................24...
Page 4: Features
Features LED Backlit Monitor DVD, USB, CARD, AV, AUX and HDMI. Specifications Type Resolution 1,843,200 Operation Temperature Storage Temperature Backlit life 20,000 Hours Video Display System NTSC / PAL / AUTO Video Output 1.0Vp-p @ 75 ohms Power Source 12VDC...
Page 5: Materials Included
Materials Included Ø9.5mm,Ø11.5mm , Ø12.0mm, Ø12.2mm, Ø13.3mm, Ø13.95mm and Ø15.95mm Note: This rubber pole adaptor is use to fit the MTB60001 docking bracket on the headrest pole.
Page 6: Docking Bracket Installation
Docking Bracket Installation Choose a correct rubber pole adaptor and put it on the headrest pole before installing the docking bracket. Install the docking bracket to the headrest pole and tighten with the screw knob. Plug in the harness cable into the monitor with the wires installed properly before docking it onto the headrest poles.
Page 7: Wiring Diagram
Wiring Diagram Master Monitor Satellite Monitor Headrest Cable Headrest Cable Blue Headrest Cable Green Blue Headrest Cable Green Video In Yellow Audio In Left White Audio In Right Red 8P Din + AV Connector Harness DC 12V In Green +12V(ACC) Ground Green Blue...
Page 8: Control And Indicators Diagram
Controls and Indicators Diagram 11 10 1. Power Indicator To turn system On/ Off and to select the source. 3. Infrared Transmitter To broadcast audio signal to IR headphone. Short press for Left cursor and level increase on System Menu pages. Up cursor on System Menu pages and track selection during play the media file .
Page 9 Controls and Indicators Diagram(Continued) Press once for pre-stop, press twice to completely stop the DVD/Media information. 12. Infrared Transmitter To broadcast audio signal to IR headphone. To start playback or pause the DVD/Media. 14. Open Knob To open the DVD player cover to install or remove the disc. 15.
Page 10: Remote Control Operation
Remote Control Operation Battery Replacement 1. Remove the battery cover. 2. Insert two AAA batteries into the battery holder. Be sure to observe the correct polarity. 3. Reinstall the battery cover into the battery holder and make sure the holder is locked..
Page 11: Remote Control Functions
Remote Control Functions...
Page 12 Remote Control Functions(Continued) Function control is available on the unit and the Remote Control. ** Function not available in this model. 1. POWER* Press this button to turn the unit ON and OFF. 2. SOURCE* Press to display the Source OSD for DVD, USB, CARD, AV,AUX and HDMI1. 3.
Page 13 Remote Control Functions(Continued) 13. BACKWARD Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, 20 times and normal speed. 14. FORWARD Press to search in a forward direction. Press repeatedly to change the search speed from 2, 4, 8, 20 times and normal speed.
Page 14 Remote Control Functions(Continued) 22. FM MODULATOR CHANNEL SELECT (C)** No function on this model. User may use the system menu to select the FM Modulator. 23. FMM ON/OFF Turns the FM Modulator power on/oﬀ. 24. AUDIO Press to display and select audio language in DVD mode. Each time this button is pressed, the language changes.
Page 15 Souce Menu source button on the front panel or the Source button on the remote control. The source OSD will appear on the screen as shown in the ﬁgure below. Use the ＋ or － cursor buttons on the front panel or the cursor buttons on the remote control to highlight a source.
Page 16: Source Menu
Source Menu(Continued) HDMI These Source inputs allow the user to enjoy high-deﬁnition digital images and high-quality sound by connecting a HD device such as a Blu-ray player or smartphone with an HDMI output to the system. User can connect HDMI device with an optional HDMI cable. Smartphones and Tablet require the appropriate adapter for your smart device.
Page 17: System Menu Setting And Adjustments
System Menu Setting and Adjustments PICTURE CONTROL The PICTURE setup functions allows the user to select and set the picture control function. BRIGHTNESS CONTRAST PICTURE COLOR BRIGHTNESS, CONTRAST, COLOR adjustments range AUDIO TINT SYSTEM from 0 to 32. PLAYER TINT adjustments range from -16 to 16. MOVE ADJUST MENU...
Page 18 System Menu Setting and Adjustments(Continued) MONITOR MODE This allows the user to change the system to M1 or M2 mode. Once the setting is changed, the remote LANGUAGE ENGLISH DEFAULT DVD control and IR headphones will only work if set to PICTURE MONITOR MODE that same setting.
Page 19 System Menu Setting and Adjustments(Continued) PLAYER MODE The Player setup function allow the user to select DVD functionality. TV SYSTEM The TV SYSTEM setup allows the user to choose television standard which corresponds to your TV. TV SYSTEM NTSC SCREEN SAVER NTSC-Select this type for NTSC TV PICTURE ASPECT RATIO...
Page 20 System Menu Setting and Adjustments(Continued) PASSWORD SETUP The default password is 3308. To change the rating of the DVD player press 3308 to access the RATING TV SYSTEM NTSC SCREEN SAVER setting. PICTURE ASPECT RATIO 16:9 AUDIO PASSWORD SETUP NOTE: 3308 must be pressed to set a new SYSTEM RATING ADULT...
Page 21 System Menu Setting and Adjustments(Continued) AUDIO LANGUAGE This setting allows you to select a preferred audio language. This function only applies to discs TV SYSTEM NTSC SCREEN SAVER encoded with diﬀerent audio languages. PICTURE ASPECT RATIO 16:9 Options: ENGLISH, FRENCH, SPANISH and GERMAN. AUDIO PASSWORD SETUP SYSTEM...
Page 22 System Menu Setting and Adjustments(Continued) FMM MODULATION(ON/OFF) This setting allows you to turn the FMM modulator ON or OFF. FM MODULATION FMM CHANNEL FMM CHANNEL PICTURE AUDIO This setting allows you to select the frequency. SYSTEM The unit has a 100 channel built-in wireless FM PLAYER Modulator.
Page 23: Playing Dvds And Audio Discs
Playing DVD and Audio Discs Playing DVDs When a disc is loaded. Press the DISPLAY button on the remote control to display the status banner. The status banner includes the disc title, chapter audio language , subtitle & angle. Using the repeat feature to select OFF, Chapter, Title and Repeat All to play the movies contents.
Page 24: Playing Mp3 Discs
Playing DVD and Audio Discs(Continued) Use the cursor keys and OK to navigate the on screen menus. The USB port can play AUDIO, PHOTO, VIDEO . The following formats are supported: Audio Photo JPEG Note: All formats may not play depending on the software used to convert the video file from its original format.
Page 25: Dvd Basics
DVD Basics To get the optimum use out of the DVD Player, please read the following: DVD Region Code The DVD player is preset to a region code at the factory depending on where the DVD player is sold. A DVD from a different region cannot be played in this unit and the unit will display "WRONG REGION”.
Page 26: Troubleshooting
Troubleshooting PROBLEM SOLUTION IR remote inoperative Verify that the battery in the remote is fresh. Verify that the remote sensor eye is not obstructed. Disc won't play Insert a disc with the label side facing the viewer. Check the type of disc you put into disc tray. This DVD only plays DVD, audio CD and MP3s.
Page 27: Warranty
D A M A G E S F O R B R E A C H O F T H I S O R A N Y O T H E R W A R R A N T Y . person or representative is authorized to assume for the Company any liability VOXX Electronics Corporation, 180 Marcus Blvd Hauppauge, NY 11788 1-800-645-4994...
Page 28 www.voxxelectronics.com...
