PORTABLE TESTER
ANDROID FTTx
AR-NTA-FTTX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANDROID FTTx and is the answer not in the manual?

Questions and answers

Summary of Contents for Artic ANDROID FTTx

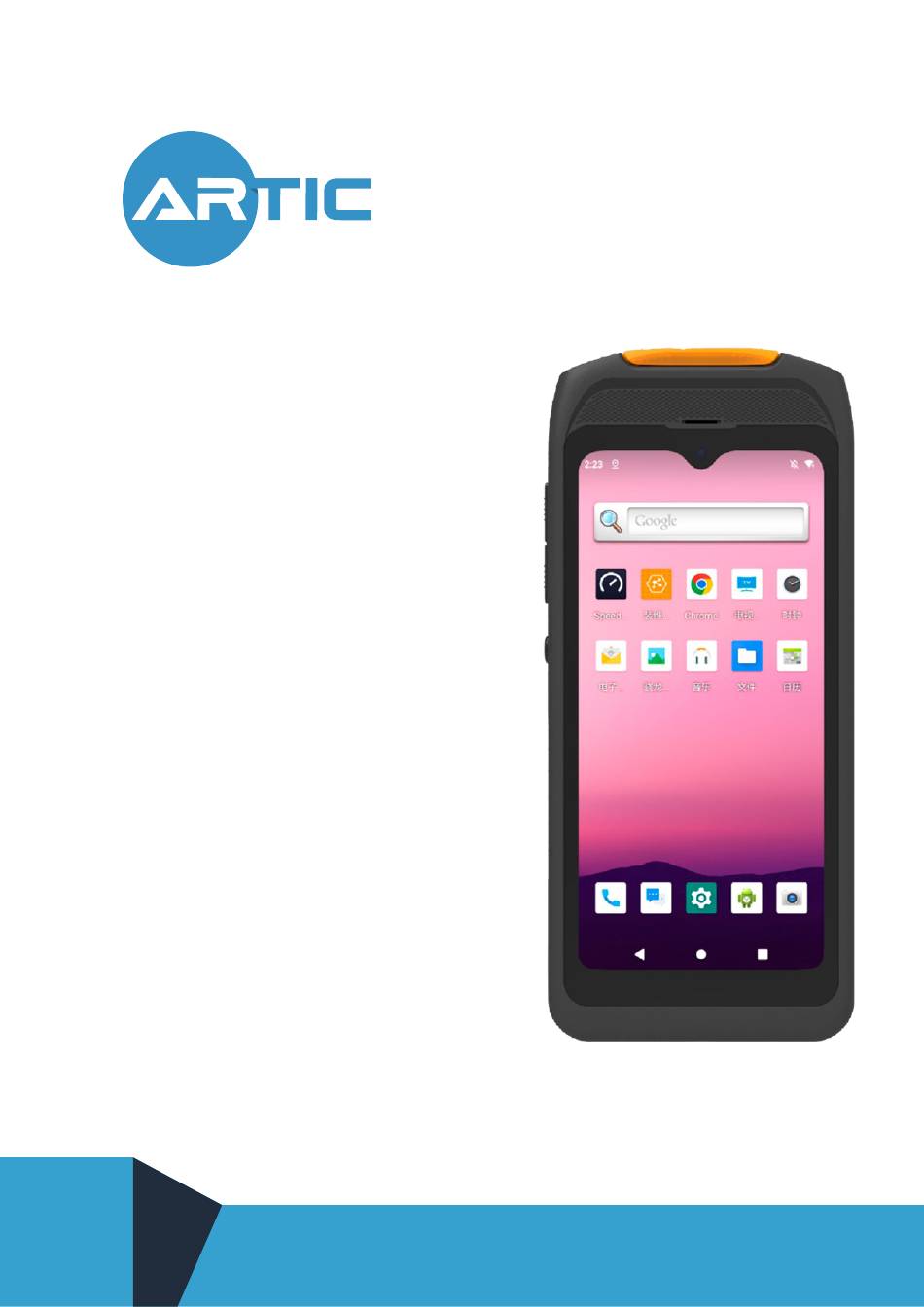

  • Page 1 PORTABLE TESTER ANDROID FTTx AR-NTA-FTTX...

  • Page 2: Table Of Contents

    Index Models The AR-NTA-FTTX have two models: AR-NTA-FTTX and AR-NTA-FTTX BASE The AR-NTA-FTTX BASE does not have 4G communication and MIMO function MIMO: (Multiple-Input Multiple-Output) 1 Product description roduct description 1.1 Product profile 1.1 Product profile 1.2 Appearance dimensions and interface description 1.2 Appearance dimensions and interface description 2 Special instructions on the use of this device 2 Special instructions on the use of this device...

  • Page 3: Product Description Roduct Description

    AR-NTA-FTTX Product description 1.1 Product profile At present, the FTTH installation and maintenance team has the following problems: 1. daily work needs to carry: a large number of tools such as red light source, optical power meter, computer and so on, the installation and maintenance efficiency is low 2.

  • Page 4: Appearance Dimensions And Interface Description

    AR-NTA-FTTX Product description 1.2 Appearance dimensions and interface description Front camera Appearance size: 193.5Lx86Wx33H(mm) contacto@articlatam.com www.articlatam.com...
  • Page 5 AR-NTA-FTTX Product description Specification sheet ID card scanning Rear camera Electric torch contacto@articlatam.com www.articlatam.com...
  • Page 6 AR-NTA-FTTX Product description Product rear view 1GE Port 1GE Port 2.5GE Port 2.5GE Port Product top interface Description of the network port interface: 1) To use the 1GE Ethernet port, you need to enter the AR-NTA-FTTX Settings and find "Network" to enable MIMO, then it can work normally.
  • Page 7 AR-NTA-FTTX Product description Product top view Product bottom view The Type-C charging port Product left view Product Right View Power Switch SIM card slot Volume Button- HDMI Volume Button + contacto@articlatam.com www.articlatam.com...

  • Page 8: Special Instructions On The Use Of This Device

    AR-NTA-FTTX Special instructions on the use of this device 1. Since MIMO function is a high power consumption function, it is recommended that this function be turned on only when MIMO function is needed, otherwise please turn off this function or press the power button to turn off this function.

  • Page 9: Put Into The Sim Card

    AR-NTA-FTTX Instructions for using the common functions 3.2 Put into the SIM card Step 1: Remove the left card top of AR-NTA-FTTX with a thimble. Put SIM card in it, note the orientation of the SIM card gap, and it support two SIM card, or one SIM and one microSD card. Step 2: After leveling the SIM card, insert the SIM card slot.

  • Page 10: Use 1Ge Network Port

    AR-NTA-FTTX Instructions for using the common functions Step 2: Open the setting of AR-NTA-FTTX--->Networks, and open the 2.5G switch to use the 2.5G network port. 3.4 Use 1GE network port Step 1: First, insert the network cable into the two network ports at the top of the AR-NTA-FTTX contacto@articlatam.com www.articlatam.com...
  • Page 11 AR-NTA-FTTX Instructions for using the common functions Step 2: Open the PT of AR-NTA-FTTX----> Networks, open the MIMO switch, and wait about 60 seconds for the MIMO startup. Step 3: After the startup, the Ethernet1(top left 1G Port) and Ethernet2(top right 2.5G Port) can get the IP address.

  • Page 12: Using The Wifi

    AR-NTA-FTTX Instructions for using the common functions 3.5 Using the WIFI 6 Step 1: Open the PT of AR-NTA-FTTX--->Networks, open the MIMO switch, and wait about 60 seconds for the MIMO startup. Step 2: After startup, enter WIFI5G, wait for the WIFI seraching results, and select the WIFI to be connected contacto@articlatam.com www.articlatam.com...

  • Page 13: Charging Function

    AR-NTA-FTTX Instructions for using the common functions Step 3: After the successful connection, you can see the connection information, including IP address, signal strength (RSSI), DNS, connection rate (link rate) 3.6 Charging function Step: insert the Type-c charging cable into the Type-c charging port of AR-NTA-FTTX, and the battery icon in the status bar becomes the charging status, as follows, indicating that charging has started.

  • Page 14: Network Speed Measurement

    AR-NTA-FTTX Network speed measurement Convergence speed measurement supports Ookla SpeedTest and other third-party speed measurement software 4.1 2.5GE network Wired speed measurement Please turn off the phone 4G data and unplug the USB charging before use Step 1: First, insert the 2.5G network cable into the top 2.5G interface of the AR-NTA-FTTX Step 2: Enter the setting interface--->Networks, open the 2.5G switch, and check whether the IP address is obtained.

  • Page 15: Dual Ethernet Port Convergence Speed Measurement

    AR-NTA-FTTX Network speed measurement Convergence speed measurement supports Ookla SpeedTest and other third-party speed measurement software. 4.2 Dual Ethernet port convergence speed measurement Please turn off the phone 4G data and unplug the USB charging before use Step 1: First, Connect two cable to the AR-NTA-FTTX top ethernet port(1G+2.5G port) contacto@articlatam.com www.articlatam.com...
  • Page 16 AR-NTA-FTTX Network speed measurement Step 2: Enter the Setting interface —— Networks, open the MIMO switch, need to wait about 60 seconds to start the time. Step 3: After waiting for both Ethernet1 and Ethernet2 to obtain the IP address, open the speed measure- ment software and click to start the speed measurement.

  • Page 17: Wifi 6 Speed Measurement

    AR-NTA-FTTX Network speed measurement 4.3 WIFI 6 Speed measurement Please turn off the phone 4G data and unplug the USB charging before use Step 1: First, enter the Setting interface —— Networks, open the MIMO switch, need to wait about 60 seconds to start the time Step 2: After the MIMO startup completes, open the WIFI 5G Step 3: Open the speed measurement software and click Start speed measurement.

  • Page 18: Wifi2.4G+5G Dual-Frequency Convergence Measurement

    AR-NTA-FTTX Network speed measurement 4.4 WIFI2.4G+5G dual-frequency convergence measurement Please turn off the phone 4G data and unplug the USB charging before use Step 1: First, enter the setting interface, —— Networks, and open the MIMO switch Step 2: After MIMO is started, open WIFI 2.4G and connect the WIFI to be tested. Step 3: Then open the WIFI 5G and connect the WIFI to be tested.

  • Page 19: Wifi+Wired Hybrid Convergence Measurement

    AR-NTA-FTTX Network speed measurement 4.5 WIFI+Wired hybrid convergence measurement Please turn off the phone 4G data and unplug the USB charging before use Step 1: First, insert the network cable into the top Ethernet interface of the AR-NTA-FTTX. Step 2: Enter the Setting interface — Networks, open the MIMO switch, need to wait about 60 seconds to start the time.

  • Page 20: Optical Power Meter And Vfl

    AR-NTA-FTTX Optical power meter and VFL 5.1 Light power meter Step 1: First, insert the measured fiber into the top OPM port of AR-NTA-FTTX. Step 2: Find the Maintenance tool APP and click to enter. Step 3: Then turn on the optical power meter function to detect the optical power of the optical signal to be detected.

  • Page 21: Vfl

    AR-NTA-FTTX Optical power meter and VFL 5.2 VFL Step 1: First, insert the tested fiber into the top VFL port of AR-NTA-FTTX. Step 2: Find the maintenance tool APP and click to enter. contacto@articlatam.com www.articlatam.com...

  • Page 22: Tv Simulation

    AR-NTA-FTTX TV simulation 6.1 TV simulation Step 1: First, connect the set-top box to the HDMI interface on the right side through the HDMI HD cable of the AR-NTA-FTTX. Step 2: Find the TV simulation APP, and click to enter to view the video image. Step 3: Control the set-top box through remote control to test the functions Step 3: Click the button on the right to start the recording, and click again to end the recording.

  • Page 23: Network Test Function

    AR-NTA-FTTX Network test function 7.1 WIFI coverage The WIFI coverage function can help us see the coverage of peripheral WIFI, rely on graphics to help us quickly view the signal strength of peripheral WIFI, and the mutual interference of WIFI channels. Step 1: First, find the maintenance tool APP and click to enter.

  • Page 24: Find Ap

    AR-NTA-FTTX Network test function As shown in the figure, the lower list represents the surrounding WIFI information scanned by the device under the band, and the graph at the top represents the coverage and interference of the WIFI in the band. As shown in the figure, the channel shows that the more the multiple color regions are superimposed, the stronger the interference of the channel.

  • Page 25: Lan Port Test (Ifconfig/Ping/Traceroute/Telnet)

    AR-NTA-FTTX Network test function 7.3 LAN port test (IfConfig/Ping/TraceRoute/Telnet) Step 1: First, insert the network cable to be tested into the 2.5G fixed network interface at the top of the AR-NTA-FTTX. Step 2: Open the setting, enter the Networks, open the 2.5G switch, and wait for the IP information. Step 3: After obtaining the IP address, find the maintenance tool APP and click to enter.
  • Page 26 AR-NTA-FTTX Network test function Step 5: Select the IfConfig / Ping / TraceRoute / Telnet function according to your own needs. contacto@articlatam.com www.articlatam.com...

This manual is also suitable for:

Ar-nta-fttxAr-nta-fttx base
