Operation | Maintenance | Installation

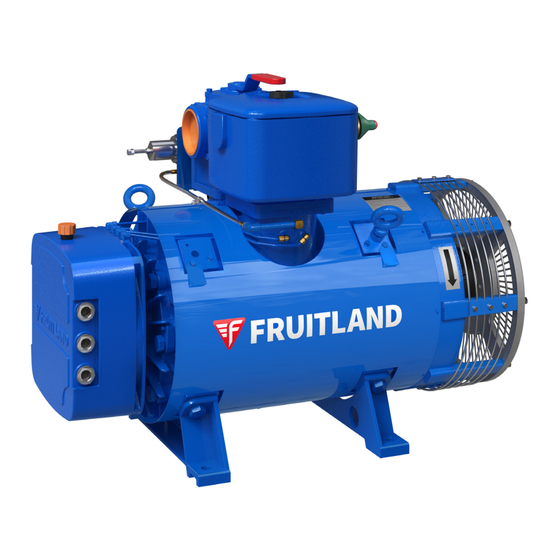

RCF 1400 MANUAL
ATTENTION:
Read owner's manual fully before operating pump.
Failure to do so can result in severe pump damage and may void warranty.
Advertisement
Table of Contents
Related Manuals for Fruitland RCF 1400 Series
Summary of Contents for Fruitland RCF 1400 Series
- Page 1 324 Leaside Avenue Stoney Creek, ON Canada L8E 2N7 Tel: 905-662-6552 / TF: 1-800-663-9003 Fax: 905-662-5412 www.fruitlandmanufacturing.com Operation | Maintenance | Installation RCF 1400 MANUAL ATTENTION: Read owner’s manual fully before operating pump. Failure to do so can result in severe pump damage and may void warranty.
- Page 2 Please familiarize yourself and any operator with the contents of this booklet. Keep a record of the serial number handy, in case you need any parts or information in the future. We at Fruitland are committed to quality, reliability, and guaranteed performance. Purchased From: (Authorized Dealer’s Stamp)
-
Page 3: Table Of Contents
Fruitland Vacuum Pump Designations ..............Installation & Adjustments..................Vacuum & Pressure Relief Adjustments ..............Lubrication & Approved Oils..................Vacuum Pump Flushing Procedure ................Vacuum Pump & System Maintenance..............Vacuum Pump Drive Systems..................Drive Shaft Installation & Phasing ................Vane Wear Measurement .................. -
Page 4: Fruitland Vacuum Pump Designations
Choose drive line option A or H; OR specify belt drive or pulley Sample Model Code RCF 500 L U F H Rotary Compressor Fiber vane pump model 500 series pump Left hand rotation Four-way valve on top (Upright) integrated Filter Hydraulic drive adapter Fruitland Manufacturing • Toll Free: 1-800-663-9003 • www.fruitlandmanufacturing.com... -
Page 5: Installation & Adjustments
Fruitland Vacuum Pumps should never exceed the RPM stated on the plate tag (pump damage is possible). Pump may be run 20% slower than the stated RPM on the tag if required. -
Page 6: Vacuum & Pressure Relief Adjustments
- insert wire through the screw cover (1) and then into bell (2) and connect wire with a permanent seal. Fruitland suggests this procedure and verification of your pressure reliefs operation within your system to be re-checked and or re-set during your routine maintenance schedule for the tank and truck. - Page 7 1-800-663-9003 or email: sales@fruitland-mfg.com *If you require these components, please contact your supplier or Fruitland Manufacturing (They may not be included in the pump or package you acquired) Fruitland Manufacturing • Toll Free: 1-800-663-9003 • www.fruitlandmanufacturing.com...
-
Page 8: Lubrication & Approved Oils
If a remote reservoir is used, verify that this reservoir has oil. Always use the manufacturer’s recommended oil. The oil level needs to be checked on a routine basis during the vacuum pumps operation. Oils Approved for use in Fruitland Vacuum Pumps OIL TYPE WINTER WEIGHT SUMMER WEIGHT FRUITLAND®... - Page 9 These oils have been approved for use in Fruitland Vacuum Pumps. Use of these oils will maintain the vacuum pump warranty as well as extend the life of the vacuum pump and ensure proper performance and lubrication. When operated properly, Fruitland vacuum pumps will run cooler, use less oil and provide much longer service than any other rotary vane vacuum pump.
-
Page 10: Vacuum Pump Flushing Procedure
7. If you remove the Pump flushing fittings from the pump, make sure to re-install the ¼ “ NPT plug back into the port. 8. Resume pumping operation. For ease of operation, Fruitland recommends installing our Pump Flushing Kit (Part #FK500) to assist in this procedure. WARNING... - Page 11 STRAIGHT BRASS FITTING 1/4” NPT MALE TO 1/4” ID HOSE BARB OR11-A-04 ELBOW 1/4” NPT MALE TO 1/4” ID HOSE BARB FITTING BRASS Flushing Fluid: ¾ of diesel fuel mixed with ¼ of pump oil by volume Fruitland Manufacturing • Toll Free: 1-800-663-9003 • www.fruitlandmanufacturing.com...
-
Page 12: Vacuum Pump & System Maintenance
This air filter must be cleaned each day before the operation of the vacuum system. Pump Air FIlter Remove the stainless-steel mesh filter daily from the air filter. Fruitland Manufacturing • Toll Free: 1-800-663-9003 • www.fruitlandmanufacturing.com... - Page 13 1-800-663-9003 or email: sales@fruitland-mfg.com *If you require these components, please contact your supplier or Fruitland Manufacturing (They may not be included in the pump or package you acquired) Fruitland Manufacturing • Toll Free: 1-800-663-9003 • www.fruitlandmanufacturing.com...
-
Page 14: Vacuum Pump Drive Systems
The tank truck drive system must be set up or dialed into the correct optimal operational input RPM of the vacuum pump during system & pump installation. Every vacuum pump model has a different optimum operational RPM. Contact Fruitland Manufacturing for the correct operational RPM for your vacuum pump model & system. - Page 15 Check the Drive Components of the Vacuum Pump If using a Fruitland right-angled gearbox verify the gear oil level within the gearbox and clean the vent cap upon the top of the gearbox case during your routine service. If using a belt and pulley to operate the vacuum pump, check the belts for wear and verify the belt’s tension during your routine service.
-
Page 16: Drive Shaft Installation & Phasing
31” 1.250” 77” 55” 45” 39” 35” TJA = True Joint Angle Incorporate this formula to calculate your drivelines True Joint Angle TJA = Square Root of A Squared + B Squared Fruitland Manufacturing • Toll Free: 1-800-663-9003 • www.fruitlandmanufacturing.com... -
Page 17: Vane Wear Measurement
Note: Be extra careful not to bend the checking rod. Vane wear (see diagram above) should not exceed 3/8”in models RCF1200. Fruitland pumps have at least two orifices for checking vane wear, some models have four. These orifices are located on the housing at both ends of the vacuum pump, and are marked with red. - Page 18 Vane Wear Life expectancy of Fruitland fiber vanes is hundreds of working hours. It greatly depends on the cleanliness of the intake air. Any contamination that enters your pump (e.g. sand, rust or soil particles) will shorten their life expectancy. It is the owner’s responsibility to keep contamination out of the pump.
-
Page 19: Trouble Shooting Pump & System Malfunctions
Overall air flow system plumbing sized incorrectly. • Collapsed or Clogged hose. • Filter body needs to be cleaned • Empty the Oil Catch Muffler. • Empty the Secondary Scrubber/Shut-off. • Worn vacuum pump vanes. Fruitland Manufacturing • Toll Free: 1-800-663-9003 • www.fruitlandmanufacturing.com... -
Page 20: Cylinder Mounting Arm & Level (Bom)
1-1/2” Bore 6” Stroke Cyl. C/W Pivot Bracket, Clevis & Nut Pivot Bracket D-229 (Right) Pivot Bracket D-229 (Left) Pin .0375 Dia. X 1.00 RF870-11F RF870 Diverter Housing 1/4”-NC x 1/2” Hex Bolt 1/4” Lock Washer Fruitland Manufacturing • Toll Free: 1-800-663-9003 • www.fruitlandmanufacturing.com... -
Page 21: Cylinder Mounting Arm & Level (Dimensions)
CYLINDER MOUNTING ARM & LEVEL (DIMENSIONS) Fruitland Manufacturing • Toll Free: 1-800-663-9003 • www.fruitlandmanufacturing.com... - Page 22 Fruitland Manufacturing • Toll Free: 1-800-663-9003 • www.fruitlandmanufacturing.com...
-
Page 23: Rcf 1400 Lu-Ls-Rs-Ru Pump Parts & Dimensions
RCF 1400 PUMP PARTS & DIMENSIONS Fruitland Manufacturing • Toll Free: 1-800-663-9003 • www.fruitlandmanufacturing.com... - Page 24 REPRODUCTION IN PART OR AS A SEE DWG. # 1400U-AI-BOM (UPRIGHT PUMPS) .XXX = .005 WHOLE WITHOUT THE WRITTEN AIR INJECTION SETUP PERMISSION OF FRUITLAND MFG. IS SEE DWG. # 1400S-AI-BOM (SIDE MOUNT PUMPS) MATERIAL SCALE: 1:12 WEIGHT:-- SHEET 1 OF 2...
- Page 25 FPP-121-SBR PIPE PLUG - 1-1/4" NPT - BRASS RF500-INS INSTRUCTION TAG RF500-13F LEVER ASSEMBLY FOR FRUITLAND VACUUM PUMPS FCE-011-250-BR COMP. ELBOW - 1/8 NPT x 1/4" TUBE OD - BRASS NAM RF500-NAM NAME PLATE HBI-251-756 SHCS - 1/4"-28 NF x 3/4" LONG FPP-021-BSQ PIPE PLUG - 1/4"...
-
Page 26: Pump Warranty
Damage to the PRODUCT arising from extreme weather conditions or affixing equipment or materials to the PRODUCT that have not been approved by FRUITLAND MANUFACTURING, is not covered by this WARRANTY. LIMITATION OF DAMAGES: FRUITLAND MANUFACTURING SHALL HAVE NO LIABILITY TO BUYER OR OTHERWISE ARISING FROM, OR IN ANY WAY CONNECTED TO, THE PRODUCT, INCLUDING ITS SALE, USE OR OPERATION, EXCEPT AS EXPRESSLY SET OUT HEREIN. - Page 27 Violation of this condition will void warranty. All shipping costs are the customer’s responsibility. Thank you for purchasing a Fruitland Manufacturing Pump. Our Quality Control program has been developed to ensure this vacuum pump and its components are free from defects in materials and workmanship.
- Page 28 324 Leaside Ave, Stoney Creek Ontario. Canada L8E 2N7 905-662-6552 • Toll Free: 1-800-663-9003 www.fruitlandmanufacturing.com Attention: Read owner's manual fully before operating pump. Failure to do so can result in personal injury, severe pump damage and may void warranty.
