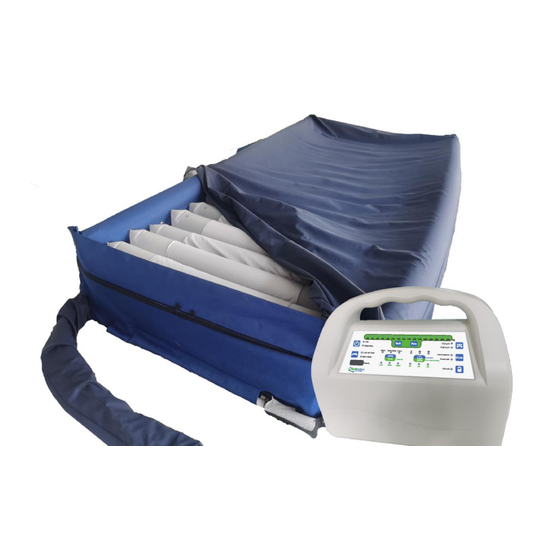

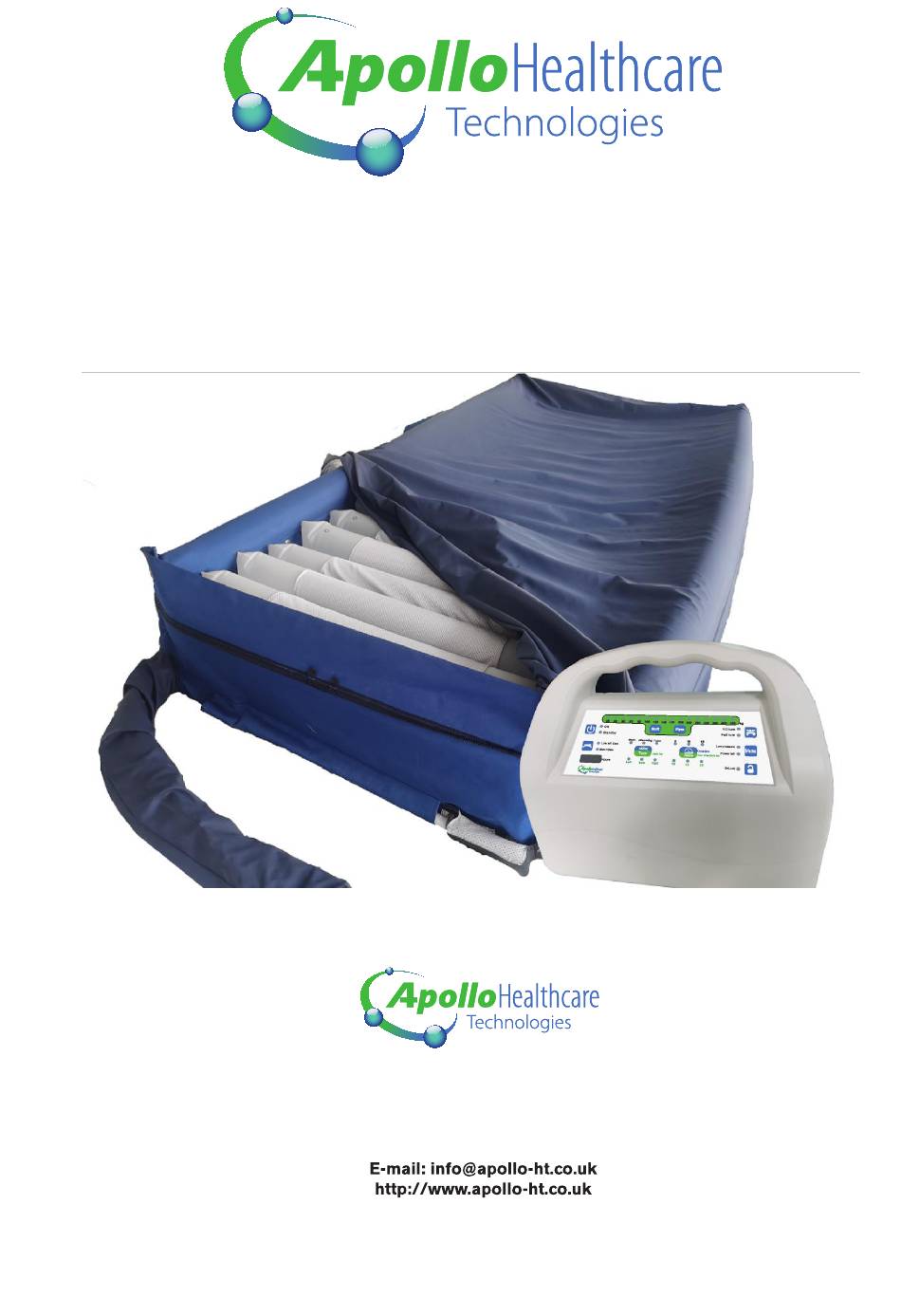

- Page 1 APOLLO AURA II BARIATRIC TURNING LAL MATTRESS SYSTEM USER MANUAL AHSM-048 Rev 2.0 (05.12.2023) Apollo Healthcare Technologies Ltd. Unit A1 Gildersome Spur, Morley, Leeds, LS27 7JZ Tel : +44 (0) 1924 614567...
-
Page 2: Table Of Contents
Contents IMPORTANT SAFEGUARDS................................. 3 SYMBOLS......................................4 INTRODUCTION ..................................... 6 1.2 INTENDED USE ....................................6 PRODUCT DESCRIPTION ................................7 PRODUCT INSTALLATION GUIDE ............................12 PANEL DISPLAY AND THE OPERATION GUIDE ....................... 15 CLEANING ...................................... 16 STORAGE ......................................16 MAINTENANCE ....................................17 EXPECTED SERVICE LIFE................................ -
Page 3: Important Safeguards
Explanation of Safety warnings Indicate some tips. NOTE - Indicate correct operating or maintenance procedures in order to prevent damage to or CAUTION - destruction of the equipment or other property Calls attention to a potential danger that requires correct procedures or practices in WARNING - order to prevent personal injury. -
Page 4: Symbols
SYMBOLS Authorized representative in the European community. Manufacturer Manufacture date Manufacture batch Serial number of the device Complies with standards protecting against electric shock for type BF equipment. Consult operating instructions for use Temperature limitation/temperature range Humidity limitation Atmospheric pressure limitation Attention –... - Page 5 Do Not Bleach (For mattress cover) Do Not Dry Clean (For mattress cover) Machine wash, regular / normal, max 95 degrees C (203 degrees F) (For mattress cover) 5 / 24...
-
Page 6: Introduction
1. Introduction 1.1 General Information The system is a high quality and affordable mattress system suitable for treatment and prevention of pressure ulcers. The system has been tested and successfully approved to the following standards: IEC 60601-1 IEC 60601-1-2 1.2 Intended Use This product is intended to help and reduce the incidence of pressure ulcers while optimizing patient comfort. -
Page 7: Product Description
2. Product Description Unpack the box to check for any damage which may have occurred during shipment. If there are damages, please contact your dealer immediately. 2.1 Mattress 1.CPR with bolster deflate 2.Fixing straps 3.Quick air connector 4.Inflatable/ deflatable bolster 5.Air cells 6.Mattress cover 7.Exhaust... - Page 8 2.2 Pump Unit Front 1.Control panel Side and Back 2. Quick connect female 3. Hanging Hooks 4. Filter Cover 5. Power Cord 8 / 24...
- Page 9 2.3 Control panel 1. Pump Start/Stop Button When the Power Cord is connected to a suitable power supply the Standby Light will be on (Orange). If you press the button to start the system then the ON light will be on (Green) 2.
- Page 10 6. Mode / Turn Set There are three modes for the system, Use Green light to indicate which mode is selected. Short Press to cycle between modes for Static, Alternating, Pulse Static mode All of the mattress air cells are inflated and not alternating. ...
- Page 11 Right Turn 7. Alternating mode cycle time / Turning mode time Short Press to cycle through Alternating mode cycle time. Press the button to set alternating mode Cycle time: 5min / 10min /15min Long Press to cycle through Turning mode time (if Turning mode is on). Press the button to set Turning Cycle time :10min / 15min /20min Use the green light to indicate which cycle is selected.
-
Page 12: Product Installation Guide
3. Installation & Disassembly 3.1 Pump & Mattress Installation NOTE- Unpack the box to inspect for any damage which may have occurred during shipment. If there are any damages, please contact your dealer immediately. 1. Place the mattress on top of the bed frame. Please note for the foot end. There are securing straps on the base of the mattress. - Page 13 2. Hang the pump onto bed rail (foot-end), and adjust hangers to best upright position of the pump, or place the pump on a flat surface. 3. Connect air hose connectors from air mattress to the pump unit. When a "click" sound is felt or heard from both sides of the connector, the connection is completed and secured.
- Page 14 4. Plug the power cord into electrical outlet. NOTE- 1. Make sure the pump unit is suitable for the local power voltage. 2. The plug is also served to disconnect the device. 5. Please make sure the power cord has no signs of damage. After installation, the extra length of the power cord, if any, should be neatly managed to avoid causing a trip and should be clear of moving bed mechanisms or other possible entrapment area.
-
Page 15: Panel Display And The Operation Guide
4. Operation NOTE- Always read the operating instruction before use. 4.1 General operation button to Start the System. Max Inflate mode will automatically operate for 3 mins. 1. Press the 2. According to the weight and height of the patient, Press to adjust the weight setting for the most comfortable level without bottoming out, then the pressure in mattress will slowly increase to desired value after which, the air mattress is ready to use. -
Page 16: Cleaning
4.4 Transport Mode The Aura II Turning Bariatric Low Air Loss Mattress is designed with a “cell on cell” structure allowing users to lock the air in the base cells for transportation whilst still allowing for bolster deflation to narrow the bed frame, this static air design feature protects the patient from the bed deck. -
Page 17: Maintenance
7. Maintenance 7.1 General 1. Check main power cord and plug if there is abrasions or excessive wear. 2. Check mattress cover for signs of wear or damage. Ensure mattress cover and tubes are stubbed together correctly. 3. Check airflow from the quick connector. The airflow should alternate between each connector every half-cycle time if it's in alternating mode. -
Page 18: Expected Service Life
7.4 Change the mattress Cover 1. Unzip the middle of the end of the mattress and remove the cover; 2. Then put on a new bed cover; 7.5 Change the air cells 1. Take off the bed cover as in 7.4; 2. -
Page 19: Troubleshooting
9. Trouble Shooting Q.1 Power is not ON ● Check if the plug is connected to mains. ● Check for a blown fuse. Q2 Low Pressure or no inflating ● Check if the Quick Connector is tightly secured. ● Check if all tubing connections along mattress are secured. ●... -
Page 20: Technical Data
11. Technical Specification: Pump (APH0582P and APH0582/TP) Specification Power Supply (Note: See rating label on the AC 230V 50 Hz, 3.5A product) Fuse Rating T5AH, 250V 2pcs Alternating mode APH0582/TP: AB Turning Function Alternating Cycle time 5,10,15mins optional Dimension (L x W x H) 40 x 19 x33 cm Weight 5.7Kg... -
Page 21: Emc Information
Appendix A: EMC Information Guidance and manufacturer’s declaration-electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that they are used in such an environment. Emissions Compliance Electromagnetic environment - guidance test RF emissions... - Page 22 Guidance and Declaration-electromagnetic immunity The models device intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that they are used in such an environment. Immunity test IEC 60601 Compliance Electromagnetic environment -guidance test level level Electrostatic...
-
Page 23: Warranty
with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the models APH0582P is used exceeds the applicable RF compliance level above, the model APH0582P should be observed to verify normal operation. - Page 24 //oHealthcare Technologies Apollo Healthcare Technologies Limited Unit A1 Gildersome Spur, Morley, Leeds, West Yorkshire, LS27 7JZ. Tel: +44 (0) 1924 614567 Email: sales@apollo-ht.co.uk www.apollo-ht.co.uk PaMed Consulting Karol Pawelec Address: ul. Jeleniowska 202A/54, 25-564 Kielce, Poland Tel:Fax: +48 507 833 787 Email: ar@pamed-consulting.eu Due to ongoing research and development, Apollo Healthcare Technologies Ltd, reserve the right to change specifications without prior notice.
