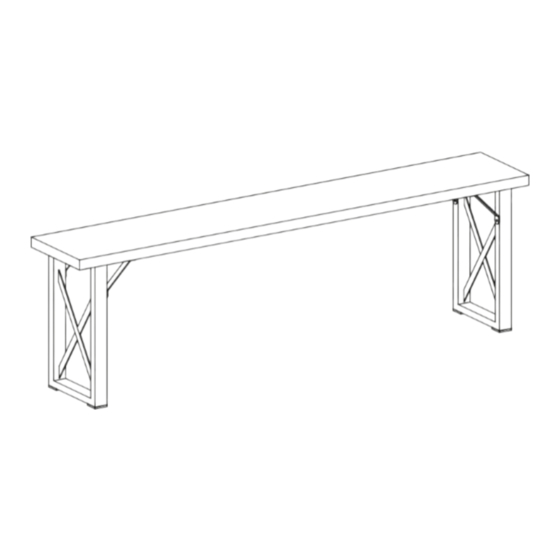

- Page 1 Picnic Stool KC55469 -22 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. -
Page 4: Part List
Part List 1 x2 2 x2 3 x8 Bench Seat Bench Seat Steel Support Diagonal Support 4 x4 Bench Leg M6x15mm M6x25mm M6x45mm Bolt Screw Screw B x24 A x8 Allen key D x2... - Page 5 Please don't fasten the screw completely during assembly process. It will be likely to lead to an assembling problem that screw hole position is not aligned. You can fasten completely when all parts have been assembled. 100% C x10...
- Page 6 100% B x16 100% B x8 A x8...
-
Page 7: Up Side Down
Up side down... - Page 8 Finished...
- Page 9 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 10 USA office: Fontana AUS office: Truganina GBR office: FDS Corporation Limited,Unit 4, Blackacre Road, Great Blakenham,Ipswich, Ip6 0FL,United Kingdom If you're having difficulty, our friendly USA:cs.us@costway.com AUS:cs.au@costway.com customer team is always here to help. GBR:cs.uk@costway.com...
