PEARL SNARE & TOM/SNARE STAND
To get optimum performance of your S-155L and S-155TS Tom/Snare Stand,
S-155L
(Snare Stand)
Flat Base
S-155L / S-155TS
Instruction Manual
Congratulations on your purchase!
please read this Instruction Manual before playing.
(Tom/Snare Stand)
S-155TS

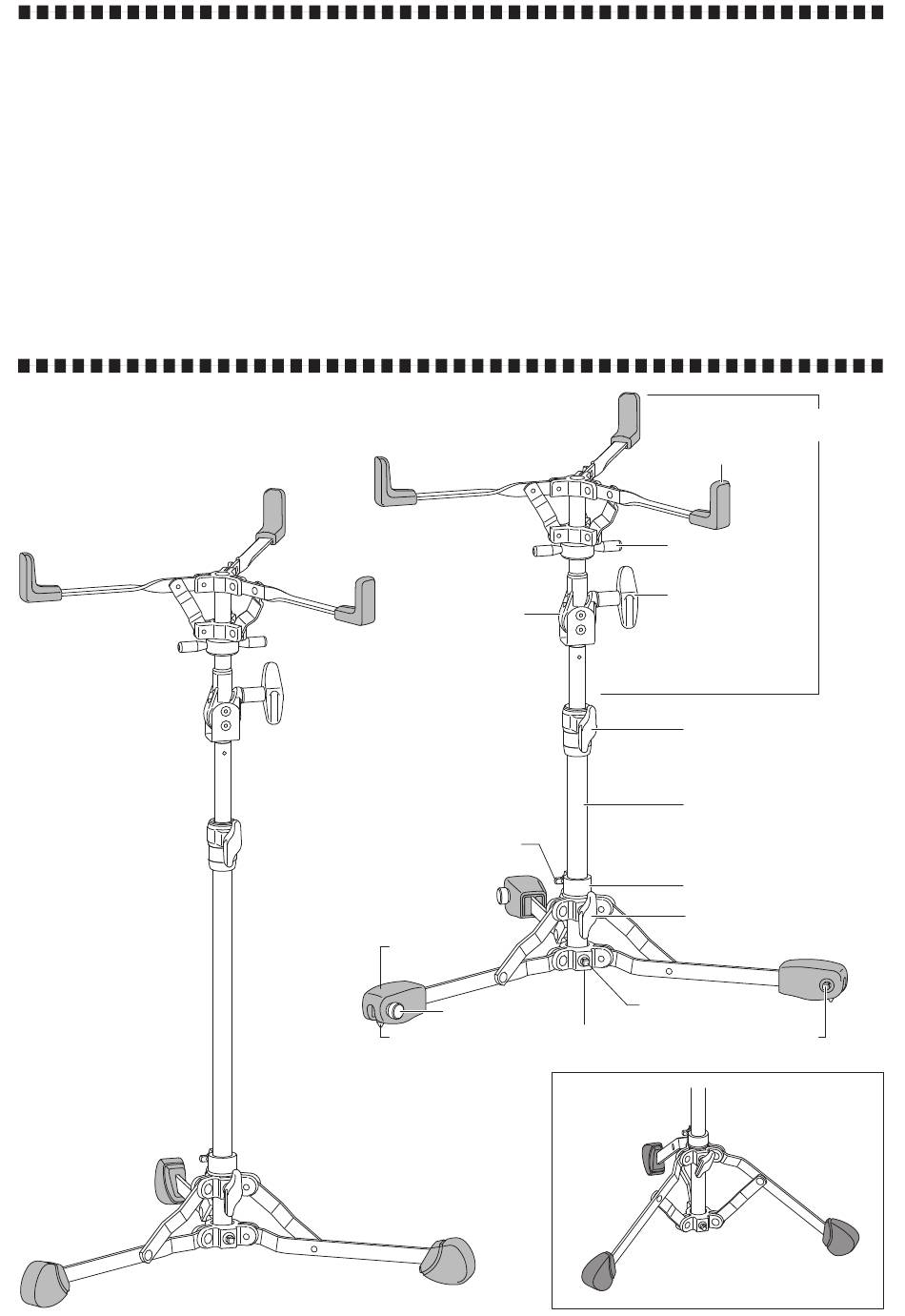

Tilter
Key Bolt
Rubber Tip
Knob
Spike
Trident Bracket
Basket Section
Snare Arms
Adjustment Nut
Wing Nut
(for Angle
Adjustment)
Wing Bolt
(for Height Adjustment)
Base Pipe
Stop Lock
Wing Bolt
Key Bolt
Key Bolt
Tripod Base
Advertisement
Summary of Contents for Pearl Drums S-155L
- Page 1 PEARL SNARE & TOM/SNARE STAND S-155L / S-155TS Instruction Manual Congratulations on your purchase! To get optimum performance of your S-155L and S-155TS Tom/Snare Stand, please read this Instruction Manual before playing. S-155TS Basket Section (Tom/Snare Stand) Snare Arms S-155L (Snare Stand)
- Page 2 Converting the Base from Tripod Base to a Tripod Base to Flat Base The S-155L and S-155TS Stands feature a convertible Tripod To convert the Tripod back to the Flat Base embodiment, Base that can be configured in a Flat Base or traditional loosen the Wing Bolt and the Key Bolt (using the supplied Tripod configuration.
- Page 3 Usage of Leg Spike (S-155TS ONLY) CAUTION The S-155TS features Rubber Feet with Retractable Spikes Ensure that the Base Pipe is flush with the bottom of the Trident for enhanced tonal resonance and secure placement. The Bracket, with the Key Bolt positioned at the bottom of the Tripod for both the Flat Base and Traditional Tripod configurations Retractable Spikes are only assessable in the Flat Base (Fig.7,8).
- Page 4 Use care not to pinch your fingers. Note The S-155L and S-155TS are designed to work with 12”-14” diameter drums.(Snare Drum or Tom) Place the drum onto the Snare Arms of the Snare Basket Assembly and tighten the Adjustment Nut until a snug fit is achieved to secure the drum into place (Fig.12-A).
-
Page 5: Tilt Adjustment
Tilt Adjustment CAUTION The Uni-Lock is gearless and provides infinite tilt When making any stand adjustments, use one hand to adjustment. To adjust the tilt setting with the drum mounted support the stand to prevent it from falling, and use on the stand, firmly hold the drum and loosen the Wing Nut, your other hand to loosen or tighten the Wing Bolts/ set it to your desired tilt, and tighten it to secure the setting...
