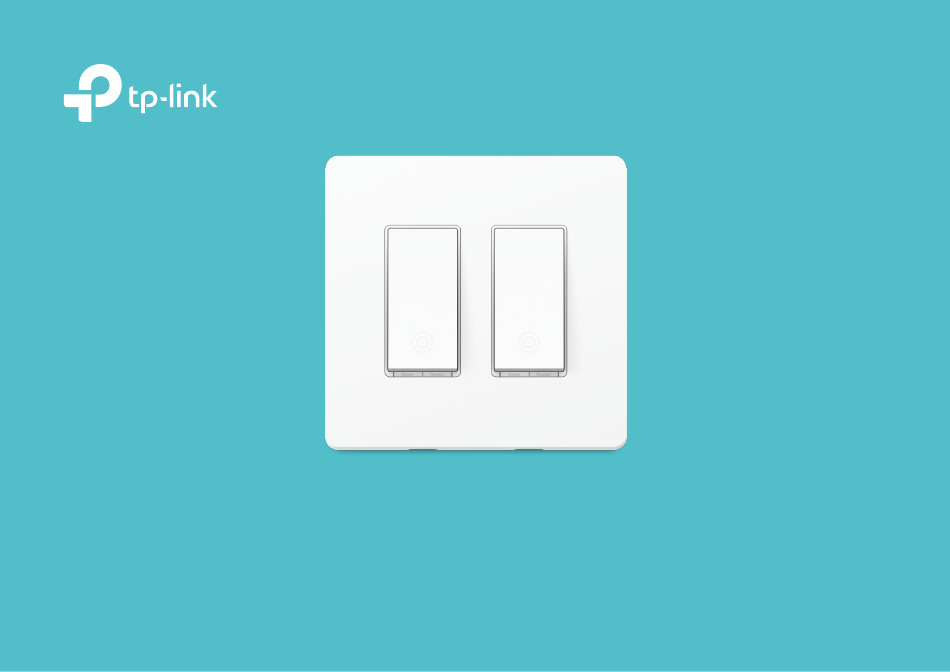

- Page 1 User Guide Kasa Smart Wi-Fi Light Switch 2-Gang, Single Pole © 2024 TP-Link 1910013625 REV5.2.0...
-
Page 2: Table Of Contents
Contents About This Guide ···················································· 1 Introduction ······························································· 2 Appearance ······························································· 3 Wire Your Switch······················································ 4 Set Up Your Smart Light Switch ····················· 8 Main Device Controls ·········································10 Manage Device Settings ··································13 Authentication ·······················································17... -
Page 3: About This Guide
Hyperlinks are in teal and underlined. You can click to redirect to a website. More Info • Specifications can be found on the product page at https://www.tp-link.com. • Our Technical Support contact information can be found at the Help center of the Kasa Smart app and the Contact Technical Support page... -
Page 4: Introduction

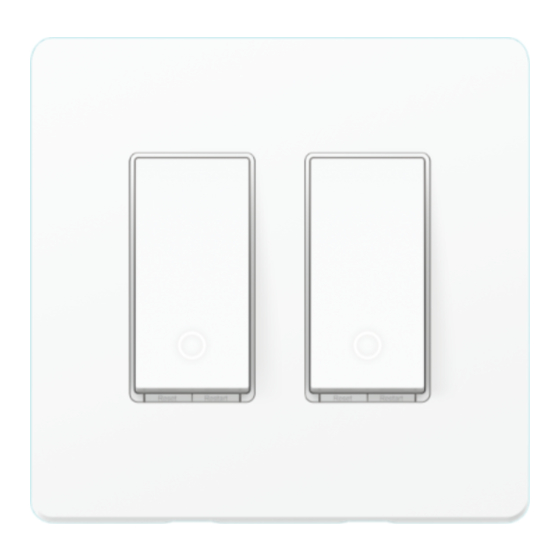

Introduction TP-Link Smart Wi-Fi Light Switch is a 2-gang, single-pole, wall light switch that can be controlled via your iOS or Android devices. Skip the hassle of purchasing additional wall plates. Easily snap the plates onto the switches for a uniform look. The screwless design elevates your interior décor with a seamless, refined look. -
Page 5: Appearance
Appearance The switch includes a switch button, an LED, a Restart button, and a Reset button. The following picture uses the white color switch as an example. See the explanation below: Switch Button: Turn on/off the corresponding switch. Solid Amber: Starting up. Blinking amber &... -
Page 6: Wire Your Switch
Wire Your Switch Follow the steps below to wire your Smart Wi-Fi Light Switch. If you are not familiar with basic electronical wiring, please consult an electrician. Before You Start 1. Prepare Baisc knowledge of Wiring • Ground: Usually green or copper. •... - Page 7 Wire Your Switch Step 1. Turn Off Power and Remove the Wallplate Step 2. Pull one switch out Turn off the circuit breaker. Remove the old wallplate of the switch. Unscrew one of the two old switches and pull it out. Use a voltage Use a voltage detector to test terminals and other metal parts to detector to test all wires connected to the old switch and in the confirm that all power is off.
- Page 8 Step 3. Label the wires of the pulled-out switch Step 4. Connect the new switches Take a picture of the wires. Then label the wires of the pulled-out Disconnect the wires from the pulled-out switch. Then connect switch. the wires to one of your smart switches as shown below. No need to distinguish between the Line and Load wires.
- Page 9 If the wall surface is not even, or part of the electrical box is recessed, you may need to use something called an outlet spacer to achieve a flush and clean look. For details, please check https://www.tp-link.com/support/faq/3969/. Do NOT tighten the screws. Mounting Template...
-
Page 10: Set Up Your Smart Light Switch
2. Log in or sign up with TP-Link ID Go to Google Play or the App Store or scan the QR code Open the app. Use your TP-Link ID to log in. below to download the Kasa Smart app on your Android or iOS If you don’t have a TP-Link ID, tap... - Page 11 3. Add Device 1. Set up the first switch: Tap the + button in the app and select Smart Switches > Smart Switch (Wi-Fi). Then follow the app instructions to complete setup. 2. Set up the second switch following the same steps.
-
Page 12: Main Device Controls
Main Device Controls After you successfully set up your Smart Light Switch, you will see the home page of the Kasa Smart app. Here you can view and manage all devices that you've added to Kasa. Tap your smart switch to control and manage it. Home Page Status Page Turn on/off your device on the Home page. - Page 13 Set Schedules Set a Timer Set schedules to automatically turn on/off the light at set times Set the timer for your Smart Light Switch to automatically turn on/ according to your daily routine. off after the time ends.
- Page 14 Set Away Mode Check Runtime Set Away Mode for your Smart Light Switch to turn on/off the light Check runtime to keep track of how long your Smart Light Switch automatically at random intervals while you are away to make the has been working.
-
Page 15: Manage Device Settings
Manage Device Settings You can change the name and icon of your smart switch and check its device info. 1. Tap on the Status Page to enter the Device Settings page. - Page 16 1. Edit device name and icon 2. Set default state You can edit the device name and icon of your Smart Light Switch. Set the state you want your device to turn to when power cuts off but returns.
- Page 17 3. Set auto-off timer 4. Set delayed shutoff Set a timer to turn off your device after a oreset time whenever it is When delayed shutoff is enabled, the light will remain on for a set turned on. amount of time after you press the switch to turn off the. To turn it off instantly, press the switch once more.
- Page 18 5. Control your device LED. 6. Check Groups that your Smart Switch is in. Set the LED status. Check whether your device is added to a group with other devices for simultaneous control.
-
Page 19: Authentication
FCC compliance information statement Product Name: Kasa Smart Wi-Fi Light Switch, 2-ganh,Single Pole Model Number: HS200-2 Responsible party: TP-Link USA Corporation, d/b/a TP-Link North America, Inc. Address: 145 South State College Blvd. Suite 400, Brea, CA 92821 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234... - Page 20 We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
- Page 21 Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
- Page 22 • 注意防潮，請勿將水或其他液體潑灑到本產品上。 • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 • 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。 限用物質含有情況標示聲明書 設備名稱： 型號（型式）： Equipment name Type designation (Type) Kasa Smart Wi-Fi Light Switch, 2-gang, Single Pole HS200-2 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Unit...
- Page 23 備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值 Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition. 備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2：“ ○ ” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
- Page 24 CAUTION: To Reduce the Risk of Electric Shock – Use Only Indoors. USE ONLY IN DRY LOCATIONS. Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device.
- Page 25 Symbol Explanation Dangerous voltage Caution, risk of electric shock Energy efficiency Marking Protective earth Earth Frame or chassis Functional earthing Caution, hot surface Caution Operator’s manual Stand-by “ON”/”OFF” (push-push)
- Page 26 Symbol Explanation Fuse Fuse is used in neutral N RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
