Qardio QardioTemp 2 Operation Instructions

Forehead thermometer

Advertisement

Quick Links

QardioTemp 2
311-1242200-016
TD-1242
Forehead Thermometer
Operation Instructions
Distributed by:
Qardio Inc., 440 N Barranca Ave #7120, Covina,
CA 91723, United States
support@qardio.com
MedNet EC-REP GmbH
Borkstraβe 10, 48163 Mϋnster, Germany
Manufactured by
TaiDoc Technology Corporation
B1-7F, No. 127, Wugong 2nd Rd., Wugu Dist.,
24888 New Taipei City, Taiwan
www.taidoc.com
Read instructions before use.
Caution, consult accompanying documents.
0123

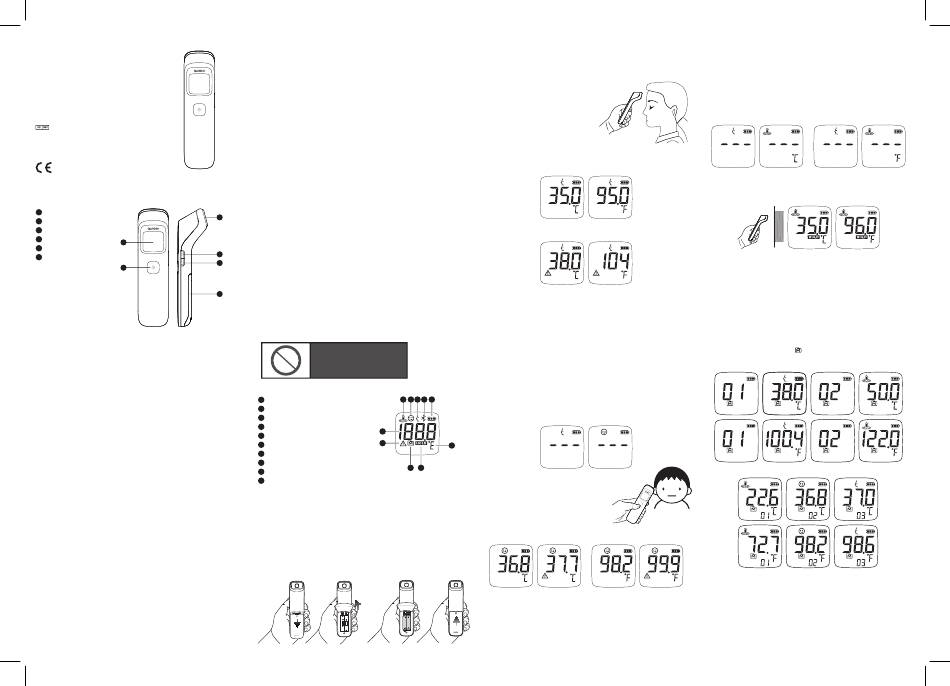

APPEARANCE AND KEY FUNCTIONS OF
THE THERMOMETER
Display Screen
1
Power / Scan Button
2
Probe
3
Mode Button
4
1
Memory Button
5
Battery Cover
6
2
INTRODUCTION
Thank you for choosing TD-1242 Forehead Thermometer. Please read this
instruction manual first so you can use this thermometer safely and correctly.
Please keep this instruction manual for future reference. This innovative
medical device uses advanced infrared (IR) technology to measure
temperature instantly and accurately on the forehead / surface. TD-1242
Forehead Thermometer delivers a body temperature reading from the thermal
radiation emitted from the forehead without contact to the body. (The surface
temperature measurement is not for medical purposes.)
Before using this product, please read the following contents thoroughly and
carefully.
INTENDED USE
The Forehead thermometer is an infrared thermometer intended for the
non-contact measurement of human body temperature in people of all ages
and may be used by medical professionals or by consumers in a home
environment.
HOW DOES IT WORK
The thermometer measures the infrared heat generated by the surface of the
skin over the vessel and its surrounding tissue.
The thermometer then converts it into a temperature value shown on LCD.
IMPORTANT SAFETY INSTRUCTIONS
READ THIS BEFORE USING AND KEEP THESE INSTRUCTIONS IN A
SAFE PLACE
1. Close supervision is necessary when the thermometer is used by, on, or
near children, handicapped persons or invalids.
2. Read this manual thoroughly and carefully prior to using. Use the thermom-
eter only for the intended use described in this manual.
3. This device is a precision optical thermometer. Handle carefully and do not
drop. Do not use if thermometer has suffered damage.
4. Keep the sensor end clean and free of debris. See Maintenance section for
instructions.
5. This device is a non-sterile device. Do not use ethylene oxide gas, heat,
autoclave, or any other harsh methods to sterilize the device.
6. If coming from an environment of warmer or cooler temperature or after a
period of exertion, allow the user and the thermometer to acclimate to room
temperature for 30 minutes prior to taking a measurement.
7. As the forehead temperature may be affected by sweat, oil and the
surrounding temperature, the reading shall be taken as a reference only.
8. Do not use in presence of flammable anesthetic mixtures.
9. Do not use accessories which are not supplied or recommended by the
Version 1.1
manufacturer. Do not try to modify the device to prevent any dangers.
10. Proper maintenance is essential to the longevity of your device. This
thermometer has been calibrated at the factory. If you follow the instruc-
tions, you don't need to adjust it regularly. However, if you are concerned
about the accuracy of measurement, please contact the local customer
service or place of purchase for help.
11. Always contact the manufacturer or the manufacturer's representative to
report unexpected operation or event. Do not try to fix it by yourself.
12. When using the thermometer, stay away from electromagnetic radiation,
such as the mobile in use.
13. Do not expose the device to strong electrostatic fields or strong magnetic
fields to avoid affecting the measurement accuracy.
14. Used in close proximity to others, EMC must be tested and verified.
15. Keep probe covers out of reach of children. The small parts detached from
the device may result children choking from inhaling or swallowing.
16. Do not try to maintain the device while it is in use.
CAUTIONS AND WARNINGS
• Always operate the thermometer in an operating temperature range 10°C to
40°C (50°F to 104°F), and 30% to 85% relative humidity.
• Always store the thermometer in a cool and dry place: temperatures between
-20°C to 60°C (-4°F to 140°F); 30% to 85% relative humidity.
• Do not sense body temperature from site of scarred tissue or tissue compro-
3
mised by skin disorder; patients in trauma; patients treated with certain drug
therapies.
• Avoid direct sunlight. Do not place it on the fireplace, or near heating/cooling
sources.
• Avoid dropping the thermometer, if it happens and you think the thermometer
4
may be damaged, please contact customer services immediately.
5
• This thermometer is not intended to substitute for a consultation with your
physician.
• Do not touch the sensing area of the thermometer. Keep the sensor clean
and dry.
6
• Do not disassemble the thermometer.
• Basic safety precautions should always be observed, especially when the
thermometer is used on or near children and disabled persons.
• The forehead scan temperature serves as a reference only. It cannot be a
judgment on fever.
• This device is MR Unsafe. (APPLY THE STAMP BELOW)
MR
WARNING
Projec�le Hazard
LCD SCREEN
Temperature display
1
Error message
2
Memory mode
3
4
Hold symbol
1
5
Temperature unit
2
6
Battery indicator
7
Bluetooth symbol (only for Bluetooth model)
8
General body temperature indicator
9
Child body temperature indicator
10
Object surface temperature indicator
USING THE DEVICE
Selecting the measuring unit
When the thermometer is off, press MODE button for 2 seconds until the LCD
screen turns on, temperature unit icon will start flashing. Press and release
MODE button again to switch between °C and °F. After measurement unit is
set, press POWER button to exit.
Install Battery
1. Remove battery cover by pressing down at the arrow mark and slide in the
direction of the arrow as shown in the figures below (Figure 1).
2. Install (2) AAA alkaline batteries and close the battery cover (Figure 2).
3. If thermometer will be stored without use, remove batteries.
( Figure 1 )
( Figure 2 )
Warning:
Make sure the battery cover is properly closed and secured.
MEASURING TEMPERATURES-GENERALS
(older than 36 months)
1. Press the SCAN button to turn on the
thermometer. The forehead should be
clear of hair and perspiration.
2. Aim at the center forehead area 3cm to
7cm (1.18" to 2.75") away from skin
surface. Be sure the thermometer is
perpendicular to the skin surface.
3. Press and release the SCAN button to take a measurement. A double
"beep" sound indicates a reading has been taken and displayed on the
LCD screen.
When a reading is greater than 38°C (100.4°F), a warning symbol will flash
with Red backlight.
4. To take another measurement, follow step 2 and 3.
5. Turn the thermometer off with a long press of the SCAN button. Or the
thermometer will turn off automatically after the timeout period.
NOTE:
• If the reading is ≤ 31.9°C (89.5°F), the display will show "Lo".
• If the reading is ≥ 32.0°C (89.6°F) and ≤ 37.9°C (100.3°F), the display will
show the reading with green backlight.
• If the reading is ≥ 38°C (100.4°F) and ≤ 43°C (109.4°F), the display will show
the reading with red backlight.
• If the reading is ≥ 43.1°C (109.5°F), the display will show "Hi".
MEASURING TEMPERATURES-CHILDREN
(younger than 36 months)
1. Press the SCAN button to turn on the thermometer.
10
9
8 7
6
2. Press and hold the MODE button for 1 second before releasing. A general
facial profile should be flashing, indicating that the preset mode is for generals.
3. Press the MODE key to switch to Child mode, indicated by a smiley face
icon.
5
3
4
4. Aim the scanner at the center of the
child's forehead or temple 3 cm
to 7 cm (1.18" to 2.75") away from skin
surface. Be sure the thermometer is
perpendicular to the skin surface. Press
and release the SCAN button to take a
measurement.
Red backlight with a warning symbol indicates a reading greater than
37.6°C (99.8°F).
5. Turn the thermometer off with a long press of the SCAN button. Or the
thermometer will turn off automatically after the timeout period.
NOTE:
• If the reading is ≤ 31.9°C (89.5°F), the display will show "Lo".
• If the reading is ≥ 32°C (89.6°F) and ≤ 37.6°C (99.8°F), the display will show
the reading with green backlight.
• If the reading is ≥ 37.7°C (99.9°F) and ≤ 43°C (109.4°F), the display will show
the reading with red backlight.
• If the reading is ≥ 43.1°C (109.5°F), the display will show "Hi".
• Parents should not rely only on temperature readings. If you have concerns,
please seek medical advice.
MEASURING TEMPERATURES-SURFACE
1. Press the SCAN button to turn on the thermometer.
2. Press and hold the MODE button for 1 second before releasing. A general
facial profile should be flashing, indicating that the preset mode is for
generals.
3. Press the MODE key to switch to Surface mode, indicated by a
thermometer icon.
4. Make sure the probe is flat and close to the object surface, not at an angle.
Perform an object measurement with a distance within 5 cm (1.9 inch).
Press and hold the SCAN button as you move the meter along the surface.
The HOLD symbol will be flashing.
5. Release the button and read the result. If the reading is ≥ 0°C (32°F) and
≤ 100°C (212°F), the display will show the reading with green backlight.
6. Turn the thermometer off with a long press of the SCAN button. Or the
thermometer will turn off automatically after the timeout period.
NOTE:
• If the reading is < 0°C (32°F), the display will show "Lo".
• If the reading is ≥ 100.1°C (212.2°F), the display will show "Hi".
RECALLING PAST READINGS
TD-1242 stores 30 most recent readings.
1. Press and release the SCAN button to turn on the thermometer.
2. Press and hold the MEMORY button for 1 second to enter the memory
mode indicated by a flashing "
" symbol. The most recent reading stored
will be displayed.
•Non-Bluetooth model
•Bluetooth model
3. Press and release the MEMORY button to cycle through older readings.
4. Turn the thermometer off with a long press of the SCAN button. Or the
thermometer will turn off automatically after the timeout period.
NOTE:
When the memory is full, the oldest result is deleted as the new ones are
added. While recalling previous readings, you may take a measurement by
pressing the SCAN button.
