Summary of Contents for Nextech YN8403

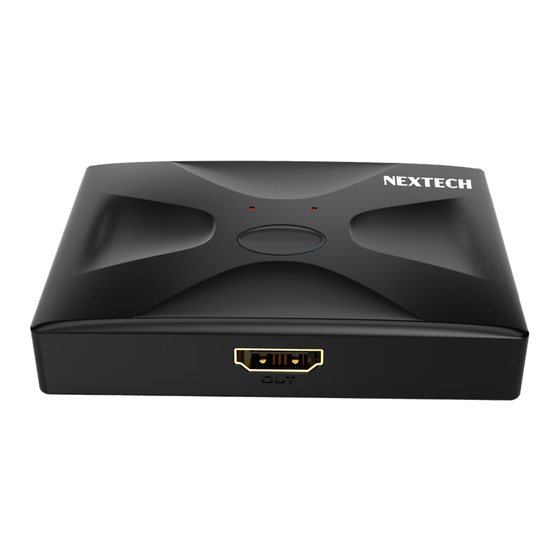

- Page 1 YN8403 2-Port HDMI KVM Switch Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS CONTENTS General Information & Safety Instructions............3 Box Contents ........................3 Product Diagram ......................4 Before First Use .......................5 Features ..........................5 Desktop COntroller ......................6 Installation .........................6 Usage Instructions ......................6 Specifications ........................7 Warranty Information ....................8... -
Page 3: Box Contents
BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. Please pay close attention to the section entitled Important Safety and General Instructions. - Page 4 PRODUCT DIAGRAM Panel Button External Controller HDMI M HDMI M KVM Port USB-AP M Host Port...
-
Page 5: Desktop Controller
DESKTOP CONTROLLER The desktop controller can be used to easily switch between computers without having the main unit on your desk. Press the button to switch. Desktop Controller INSTALLATION The KVM cable should be connected to the PC port of the KVM switch, while a set comprising a keyboard, mouse, and monitor should be connected to the control port of the KVM switch. -
Page 6: Specifications
SPECIFICATIONS Input HDMI (Include USB) USB+ HDMI Output Switching mode Panel button, external controller Resolution 3840 x 2160@30Hz Compatible with Windows series, Mac OS, Linux Support system Operating temperature -50°C to 80°C 82.9 x 58.9 x 16.5mm Size... -
Page 8: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose. This warranty will not cover modified product;...
