Excell SUB Quick Start Up Manual

SUB/SUB AirCharge Quick Startup Guide
Usage Notice
1. Use within the maximum capacity. Avoid sudden drop of heavy object on the platter.
2. Use under a stable temperature and air flow. Avoid direct sunlight or use near air vent.
3. Use under individual socket to avoid the interference of other electric appliances.
4. Put the scale on a firm and flat surface for accurate weighing reading. Adjust the four leveling feet to
get the leveling bubble at the center of the circle.
5. Clear the platter before turning on the scale. It requires 15 ~ 20 minutes to warm up.
6. For accurate results, place center of the object in the center of platter.
7. When the low power warning symbol
within 5~10 hours or 1~2 hours with backlight. Once it auto shuts down and enters the battery
protection mode, it must be charged before it can be used.
8. Please operate or charge the scale in an open area. Avoid squeezing the power cable, which might
cause short circuit within cable and result in fire. Battery temperature should be < 45°C while charging.
Red -> charging is in progress. Blue -> The battery is fully charged.
plugging in, the blue light will turn on after about 5~10 minutes of voltage detection.
actual battery level, please unplug the AC power cable and turn scale on to check the battery
symbol . The number of bars under the battery symbol indicates the status of the battery capacity.
9. The rechargeable battery is consumables and is not included in the warranty. If scale is not used for
some time, recharged it every six months and recharged it before use. Avoid store at a high
temperature environment, the ambient temperature should be less than 50 ℃.
10. After installing the battery, if no display when power is turned on, please check whether the battery
polarity is reversed. The polarity must be installed correctly to avoid battery power wasted away.
11. When "Charging" indicator flashes in the charging state, it means there are the following abnormal
states, please check a) battery is installed but the contact is poor, please check whether the battery is
installed properly. b) please check whether the polarity of the battery is reversed. c) When the battery
is removed and the AC power cord is still plugged in. When plugged in without the battery installed,
there will be a slight frequency conversion sound, which is normal and does not affect the use of the
function.
12. SUB AirCharge's wireless charging pad should be within 2mm of scale. When charging, no metal
objects should be placed between the charging pad and scale. Otherweise, it may cause heat or burn.
To charge, first plug adaptor into power socket, then place the charging pad into the indentation at the
bottom of the scale and check if the charging light turns on in about 5 seconds. If charging light turns
on, charging is in process. If charging light is still off, charging pad is not fully intact in place or it is not
detected while sliding in. Please pull out charging pad and install it again

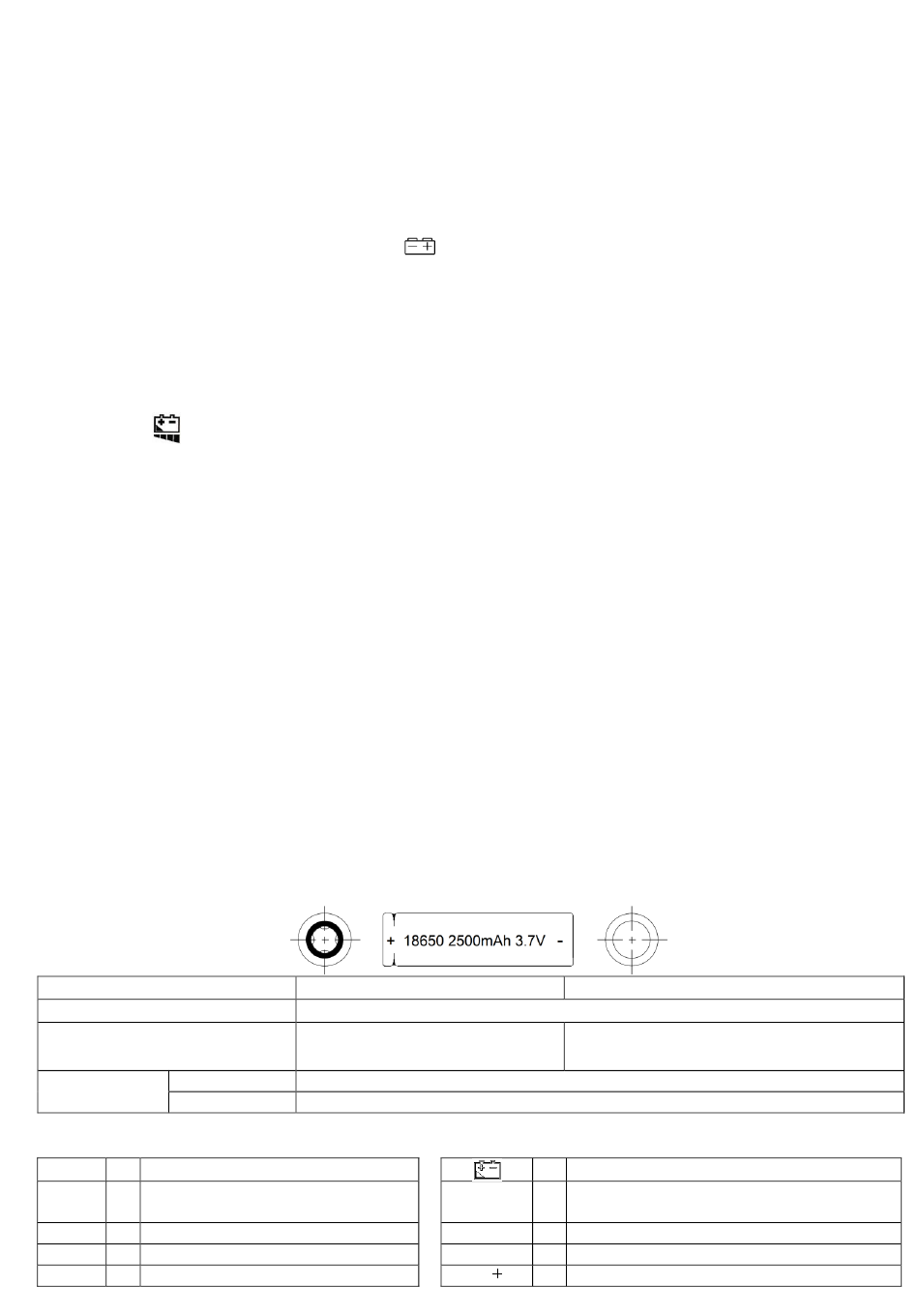

13. Our product uses a single-cell cylindrical 18650-3.7V lithium-ion battery.
3.6~3.7V and capacity is not restricted.
etc., please do not install it for the safety of use.
Power
Model
Battery
Input power:
AC 100~240V (±10％)
2500mA
Battery vs
Operation Time
3200mA
Indicators in Display
HI : High limit value
OK value (The value between HI
OK :
and LO limit value)
LO : Low limit value
Pcs : Counting mode
→O← : "Zero" indication
020358XX
flashes, If not charge immediately, auto shuts down
If the appearance of the battery is deformed, damaged,
SUB
18650 Li-ion rechargeable battery DC 3.7V
Output: DC12V/1.5A
Without backlight 28mA, 65 hours; With backlight 50mA, 35 hours
Without backlight 28mA, 100 hours; With backlight 50mA, 50 hours
STABLE
PT
M+
.
. .
. . .
. . . .
If scale is fully charged, after
Battery's should be
SUB AirCharge
Output: DC12V/1.5A
Output ＞15W (15W QI TX module)
"Low battery power" indication
:
:
"Stable" indication
"Pre-tare mode" indication
:
"Accumulation mode" indication
:
: The total weight of the sample is < 20d
For the
ZSME300000424
