Naxa NTD-2457 Instruction Manual

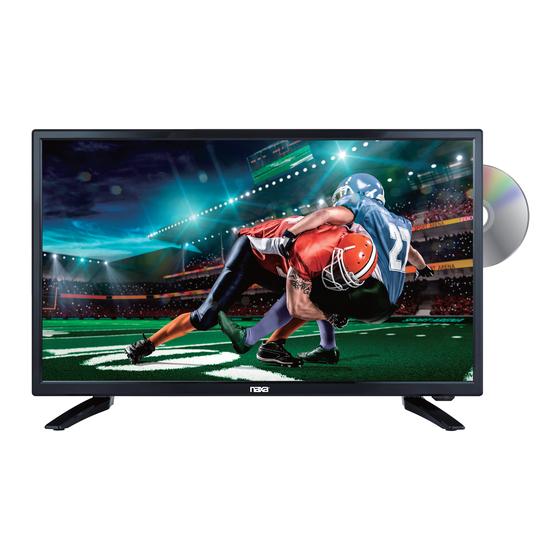

Led widescreen hd tv with dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NTD-2457

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NTD-2457 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Naxa NTD-2457

Summary of Contents for Naxa NTD-2457

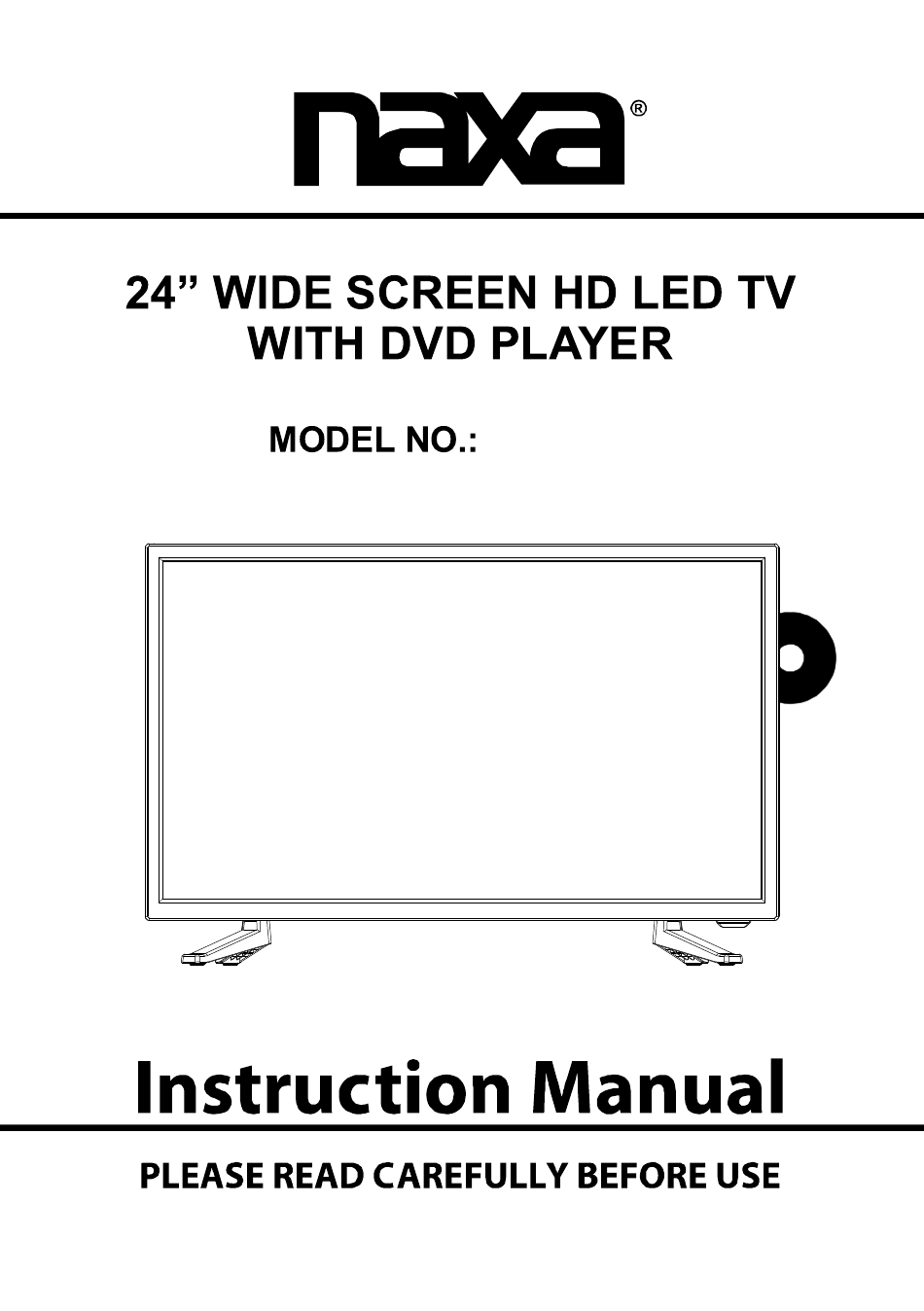

  • Page 1 NTD-2457...
  • Page 2 CAUTION ON MODIFICATIONS Any changes or modifications not expressly approved by the grantee of this device may void the authority granted by the FCC to operate the equipment. http://www.naxa.com/supportcenter...

  • Page 3: Table Of Contents

    Table Of Contents Preparations Guide Safety Information.........................2 Important Safety Precautions....................3 Installed And Connected TV TV Bracket assemble......................4 TV Buttons And Terminal Interface..................5 External device connection diagram..............6 Remote Controller ......................7 Install And Connect TV......................8 TV Stand installation Instructions...............8 Setup Wizard Setup Wizard ......................9-10 Select Input Source Select Input Source........................

  • Page 4: Safety Information

    Safety Information High voltages are used in the operation of this product.to reduce the risk of electric shock,do not remove cover of the cabinet, refer servicing to qualified service personal Do not disassemble the back cover, as it contains high voltages inside and will cause electric shock.

  • Page 5: Important Safety Precautions

    Important Safety Precautions...

  • Page 6: Tv Bracket Assemble

    Naxa Electronics recommends that wall mounting be performed by a qualified professional installer. Naxa is not liable for any accidents or damage to property or TV due to incorrect installation. 1. Carefully place the TV face down on a cushioned surface and then follow the instructions below.

  • Page 7: Tv Buttons And Terminal Interface

    TV Buttons And Terminal Interface TV Buttons Note: The following is only functional schematic. The actual position and arrangement of the buttons may differ by model. :Turn ON/OFF Power. SOURCE:External Signal Input Selection. MENU:Display Main MENU And Confirm MENU Item Selection. CH+/-:Select Channel.

  • Page 8: External Device Connection Diagram

    External device connection diagram Set-top boxes HDMI HDMI HDMI input connection INPUT INPUT INPUT VIDEO VIDEO AV input connection Y Pb Pr input connection USB connection AV input connection TV connection OUTPUT VGA input connection AV output connection...

  • Page 9: Remote Controller

    CH LIST In TV mode, press to view your channel list. D.Disp D.Menu D.Title Goto D.MENU: PROG STEP REPEAT PROG STEP REPEAT D.TITLE: GOTO: NTD-2457 D.DISP: STEP：Play for single frame image During the playback,press this button to repeat playback of a specific section on a disc.

  • Page 10: Install And Connect Tv

    Install And Connect TV Set your TV To put your TV in a firm place which can bear the weight of the TV. To avoid danger, please don’t expose the TV near water or heating place (such as light, candle, heating machine),do not block the ventilation at the back of TV.

  • Page 11: Setup Wizard

    Setup Wizard Connect an RF cable from the TV’s input called “RF-In” and to your TV Aerial socket. Select Language Press </ > button to select the language to be used for menus and message. Press ▼ / ▲ button to select go to next step and press ENTER/ button to go. Select Time Press ▼...
  • Page 12 Setup Wizard Auto Scan Press </ > button to select the antenna type. Press ▼ / ▲ button to select go to next step and press ENTER/> button to start auto scan.

  • Page 13: Select Input Source

    Select Input Source Source Select Press INPUT button to display the input source list, Press ▼ / ▲ or Component INPUT button to select the input source you want to, HDMI Press ENTER button to enter the input source, Press EXIT button to quit. Media Main Menu Press MENU to display the main menu or return to the previous menu or close the main menu.

  • Page 14: Main Menu Operation

    Main Menu Operation Picture Menu Press ENU to enter the main menu, Press </ > button to select. ENTER / ▼ Press to enter. Press ENU again to exit or back to parent menu. ▼ / ▲ Press button to select among Picture Mode /Brightness/ Contra st / Color / Tint / Sharpness / Color Temperature/ Advanced Settings.
  • Page 15 【Color】 Adjust the saturation of the color based on your own like. Press </ > button to adjust. 【Tint】 Adjust the hue(Red,Green,Blue) of the picture. Press </ > button to adjust. 【Sharpness】 Adjust the peaking in the detail of the picture. Press </ >...

  • Page 16: Sound Menu

    【Dynamic Contra st】 Automatically adjust picture detail and brightness. Press </ > button to select (Off/O n). 【HDMI Mode】 Only available in HDMI input. Press </ > button to select (Video/Graphic). Sound Menu Press ENU to enter the main menu, Press </ >...
  • Page 17 【Sound Mode】 Select a sound mode to achieve ideal sound. Press </ > button to select(S tandard / Music / Movie / Sports / User). Note: The bass and tre ble options are only available and adjustable when the Sound mode is set to User. Standard Produces a balanced sound in all environments.

  • Page 18: Time Menu

    Time Menu Press ENU to enter the main menu, Press </ > button to select. ENTER / ▼ Press to enter. Press ENU again to exit or back to parent menu. ▼ / ▲ Press button to select among Sleep Timer / Time Zone / Daylight Saving Time / Time Format / Auto Clock / Clock.

  • Page 19: Setup Menu

    Setup Menu Press ENU to enter the main menu, Press </ > button to select. ENTER / ▼ Press to enter. Press ENU again to exit or back to parent menu. ▼ / ▲ Press button to select among Menu Language / Transparent / OSD Timeout / Closed Caption /Over Scan/ Input Label / Other settings / Restore Default / Setup Wizard.

  • Page 20: Close Caption

    Close Caption 【 】 CC Mode Turn Closed Captioning on/off. Press </ > button to select(C C Off / CC On / CC OnMute). 【 】 Analog CC Set Closed Captioning for standard(analog) program. Press </ > button to select(C C1 / CC2 / CC3 / CC4 / TEXT1 / TEXT2 / TEXT3 / TEXT4). 【...
  • Page 21 【Over Scan】 button to select(O n / Off) . Press </ > It is only available to enter 1080i/720p/1080p in DTV/Component/HDMI.Default is On. It fixed set to be On in ATV/AV. It fixed set to be Off in PC/USB. 【Input Labels】 Create labels for the devices connected to your TV.
  • Page 22 【Restore Default】 Change power on options or reset TV to factory default. Press ENTER / > button to enter. 【Setup Wizard】 Set the first time installation. Press ENTER / button to enter. > For detail please refer to page 9-10.

  • Page 23: Lock Caption

    Lock Menu Press ENU to enter the main menu, Press </ > button to select. ENTER / ▼ Press to enter. Press ENU again to exit or back to parent menu. ▼ / ▲ Press button to select among Change Password / System Lock / Input Block / US Rating / Canada Rating /RRT Setting / Reset RRT/Hotel menu ENTER / ▼...
  • Page 24 【Change Password】 Enter a new 4-digital password then re-enter it to confirm. Press > button to enter. 【System Lock】 Lock or unlock the buttons on the TV. Press </ > button to select(O ff / On). 【Input Block】 Block or unblock the input sources. Press >...

  • Page 25: Us Rating

    US Rating For the United States, the rating setting basically include the following options: TV, MPAA. The TV rating compose of two aspects: age-based and content-based. Define TV-Y General audience Parental guidance suggested TV-Y7 TV-G Parents strongly cautioned TV-PG Retricted No one 17 and under admitted TV-14 Adult audience only...

  • Page 26: Mapp

    MPAA This system defines the rating control which come from MPAA rules. Rating Define General audience. All ages admitted. Parental guidance suggested. Some material may not be suitable for children. PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.

  • Page 27: Hotel Menu

    Hotel Menu 【Hotel Mode】 Set hotel mode On or Off. Note: The following settings work only when Hotel Mode is set to be On. 【 Boot Setting 】 【Picture Mode】 Adjust picture mode to change picture appearance. Press </ > button to select(Standard / Dynamic / Soft / User).
  • Page 28 【Boot Channel】 Set boot channel On or Off. Note:Channel Select is available when Boot Channel is set to be On. 【Channel Select】 Set boot default on what channels.After channel searching,channels in the list can be selected. 【Hotel Lock】 To lock the Tuner/Key Pad/Menu Lock that you want. Channel searching is invalid when Tuner Lock is set to be On 【Power Save】...

  • Page 29: Channel Menu

    Channel Menu Press ENU to enter the main menu, Press </ > button to select. ENTER / ▼ Press to enter. Press ENU again to exit or back to parent menu. ▼ / ▲ Press button to select among Air/C able / Auto Scan / Favorite / channe list / Show/Hide / Channel Number / Channel Label .
  • Page 30 【 】 Favorite s Add channels to create a favorite list. Press > button to enter. 【 】 Channel List Display your program list. Press > button to enter. 【 】 Show/Hide Show or hide the channels in your program list. Press >...

  • Page 31: Pc Menu

    PC Menu Press INPUT to select PC source. Press ENU to enter the main menu, Press </ > button to select Setup menu. ▼ Press to select PC Settings. ▼ / ▲ Press button to select among H-Pos / V-Pos / Clock / Phase / Auto. ENTER / ▼...
  • Page 32 【H-Pos】 Adjust the horizontal position of the picture. Press </ > button to adjust. 【V-Pos】 Adjust the vertical position of the picture. Press </ > button to adjust. 【Clock】 Adjust the vertical position of the picture. Press </ > button to adjust. 【Phase】...

  • Page 33: Dvd Setup

    DVD Setup Press the “D.Setup” button to enter the DVD settings menu,use the “ ” buttons to select thedesired menu page (General / Audio / Video / Preferences),and use “ ” buttons to select the items in each menu,then use “ ”...
  • Page 34 DVD Setup 3.Video Setup Page Sharpness:adjust the sharpness of the image. Brightness:adjust the brightness of the image. contrast:adjust the contrast of the image. 4.Preference Page (Note:This menu page will pop up before put the disc into DVD.) TV Type: Select the local TV system (PAL TV/Multi/NTSC TV) Audio: Disc audio language selection (disc dependent) Subtitle: Disc subtitle language selection (disc dependent) Disc Menu: Disc Menu language selection (disc dependent)

  • Page 35: Help

    Help at the back of the unit from...

  • Page 36: Specifications

    Machine Technical Specifications TV System Speaker Output Screen Size Preset Channels PAL:0-199,NTSC:AIR 2-69 PAL/NTSC 5W+5W 16” CABLE1-125 PAL:0-199,NTSC:AIR 2-69 PAL/NTSC 5W+5W 19” CABLE1-125 PAL:0-199,NTSC:AIR 2-69 PAL/NTSC 5W+5W 20” CABLE1-125 PAL:0-199,NTSC:AIR 2-69 PAL/NTSC 5W+5W 22” CABLE1-125 PAL:0-199,NTSC:AIR 2-69 PAL/NTSC 5W+5W 24” CABLE1-125 PAL:0-199,NTSC:AIR 2-69 PAL/NTSC...
  • Page 37 VESA Screen Size Screen Weight Wall Mount Type MIS-B 4-7.9in ≤4.4lbs 20 x50mm 10-20cm ≤2kg MIS-C 8-11.9in ≤10lbs 35 x75mm 20-30cm ≤4.5kg MIS-D 12-22.9in ≤30.8lbs 75 x 75mm; 30-58cm ≤14kg 100 x100mm MIS-E 23-30.9in ≤50lbs 100 x 200mm 58-78cm ≤23.7kg MIS-F ≥31in ≤250lbs...
