Sony NN-6457L Service Manual

ORDER NO. MMCA9704031C3
=

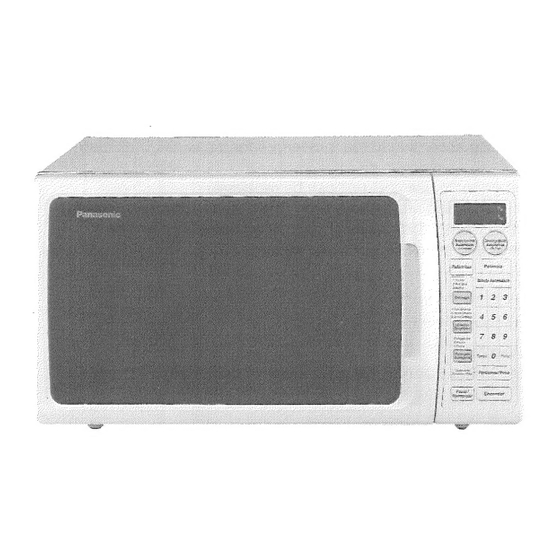

Microwave Oven
RPH: For Latin America & Mexico (120V Area)
RPE: For Latin America (220V Area)
Models sold in these markeis:
LT - Latin America
CL - Chile
RPK - Peru
Specitications:
Models:
NN-5457L LT
NN-5457L CL
NN-5457L RPK
120V AC Single Phase 60Hz °** NN-5457L LT
| 220V AC Single Phase 50Hz *«« NN-5457L CL
220V AC Single Phase 60Hz «+s NN-5457L RPK
1350W, (11.7A) eee NN-5457L LT
1450W, (6.9A) eee NN-5457L CL
1450W, (6.7A) eee NN-5457L RPK
Outputs (EC7O5-88
Cavity Size
Oven Outside Dimensions: 12" x 2217/2" x 16°/." 12" x 20" x 14%/18"
(H x W x D) 306mm x 555mm x 425mm 306 mm x 510mm x 360 mm
Cavity Inside Dimensions: . 85/8" x 14°/2" x 15%/16" 9" x 137/s" x 13°%/i6"
(H x Wx D) 220mm x 375mm x 395mm 229mm x 353mm x 338mm
Net Weight: 38 lbs. (17.2 kg.) _ 34 Ibs. (15.3 kg.)
| Output power: IEC705-88 Tesi procedure
Oven specifications subject to change without notice -
NN-6457L LT
NN-6457L CL
Specitications:
Power Source:
120V AC Single Phase 60Hz e*> NN-6457L LT
220V AC Single Phase 50 Hz e** NN-6457L CL
1350W, (11.7A) eee NN-6457L LT
1450W, (6.9A) eee NN-6457L CL
Power Requiremeni:
© 1997 Matsushita Eleciric Industrial Co., Lid.
All rights reserved. Unauthorized copying and
distribution is a violation of law.
