WELCH-ILMVAC
OWNER'S MANUAL FOR

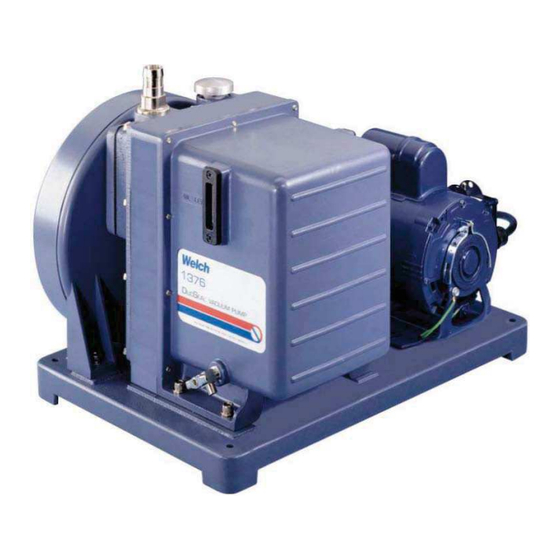

DUOSEAL® VACUUM PUMP MODELS:
1376B-01, 1376B-10, 1376C-03, 1376L-01, 1376M-01 & 3Z656
WARNING
Never block the Exhaust Port.
If the exhaust port is blocked, pressure will build-up in the pump
with the potential of the pump body bursting and causing possible
injury to personnel in the area.
Welch-Ilmvac
5621 W. Howard Street
Niles, IL 60714
Phone: (847) 676-8800 (Technical Support)
Fax: (847) 677-8606
E-Mail: gdwelchvacuum@gardnerdenver.com
Part No. 67-2052
Web-Page: www.welchvacuum.com
Printed in USA
Advertisement
Table of Contents
Related Manuals for WELCH-ILMVAC DUOSEAL 1376B-01
Summary of Contents for WELCH-ILMVAC DUOSEAL 1376B-01
- Page 1 WELCH-ILMVAC OWNER’S MANUAL FOR DUOSEAL® VACUUM PUMP MODELS: 1376B-01, 1376B-10, 1376C-03, 1376L-01, 1376M-01 & 3Z656 WARNING Never block the Exhaust Port. If the exhaust port is blocked, pressure will build-up in the pump with the potential of the pump body bursting and causing possible injury to personnel in the area.
- Page 2 INSTRUCTION WARNING AND CAUTION PLEASE READ BEFORE OPERATION While reading your manual, please pay close attention to areas labeled: WARNING AND CAUTION. The description of each is found below. WARNING Warnings are given where failure to observe instruction could result in injury or death to people. CAUTION Cautions are found where failure to observe the instruction could result in damage to the equipment, associated equipment and...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Section Page Section 01 - Installation 1.10 Introduction Section 02 - Operation 2.10 Starting Procedures 2.20 Operation and System Optimization 2.21 High Pressure Operation 2.22 Gas Ballast Principles and Usage 2.23 System Leaks - Impact and Detection 2.30 Shutdown Procedure Section 03 - Maintenance... -
Page 4: Section 01 - Installation
Section 1: INSTALLATION 1.10 Introduction This manual has been complied not only for the care and maintenance of the DUOSEAL pump now in your possession but as a helpful reference and guide for many problems which are usually associated with mechanical vacuum pumps. - Page 5 1.15 Electrical Power 1.151 Power Source Review Review the power source and the motor rating to be sure they agree in voltage, phase and frequency. On three- phase applications the direction of rotation of the motor must be considered. Make a momentary check rotation at the time of power installation and wiring.
-
Page 6: Section 02 - Operation
Commonly used refrigerants are liquid nitrogen or dry ice and acetone. The refrigerant to be used depends upon the freezing point of the contaminations. A variety of cold traps are available from Welch-Ilmvac. 1.172 The care of a Trap When using a cold trap the refrigerant should be maintained at a high level in the fl... -
Page 7: Operation And System Optimization
2.20 Operation and System Optimization 2.21 High Pressure Operation DUOSEAL two-stage pumps are designed to be most effi cient when operated at or near their ultimate blanked off pressure. The pump is designed to remove air from a vacuum system at atmospheric pressure to a deep vacuum. -
Page 8: System Leaks - Impact And Detection
2.226 Other Forms of contamination control The application of the gas ballast is a moderate and very successful method for the removal of condensable vapors. For very heavily laden systems, other means of removal such as oil separators may be required. For mild cases of contamination the simple expedient of a cold trap or a change of oil serve the purpose. -
Page 9: Section 03 - Maintenance
Section 3: MAINTENANCE 3.10 Vacuum Problems 3.101 Pressure Determinations Leakage, contamination and unusual outgassing are the general causes of problems associated with poor vacuum. To operate at maximum effi ciency a system must be thoroughly clean. If the system is completely clean and free from leaks, and unwarranted vacuum problems still exist, the pump should be checked. -
Page 10: Shaft Seal Replacement
3.203 Forced Oil Flushing Procedure 1. Check the oil level, if the oil level is well above the fi ll mark (This may indicate either the pump has been overfi lled with oil or has ingested a liquid or a large amount of vapor water or organic solvents). Please go to step 2. -
Page 11: Repairing Oil Leaks
3.40 Repairing Oil Leaks 3.41 Location, Cause and Effect Oil leaks may develop wherever two mating faces are sealed with a gasket. Such seams may fail as the result of deterioration of the gasket material, loosening of the screws caused by temperature variations, or improper care as the result of previous reassembly. -
Page 12: Section 04 - Trouble Shooting Guide
Section 4: TROUBLE-SHOOTING GUIDE 4.10 Poor Vacuum Readings 1. Disconnect vacuum pump from your vacuum system. 2. Obtain 1 gallon of DUOSEAL oil, 1 gallon or larger clear plastic container, clear drain hose (1/4 inch ID by at least 2.5 feet long), rubber gloves, goggles, apron and pliers. 3. -
Page 13: Section 05 - Quick Reference Chart Chart
Section 5: QUICK REFERENCE CHART Motor Options 1376 Specifi cations Wired for 115V, 60Hz, 1Ph 1376B-01 Free Air Displacement, L/M (CFM) 300 (10.6) Wired for 230V, 60Hz, 1Ph Gas Ballast Wired for 230V, 50Hz, 1Ph 1376C-03* Ultimate Pressure, Torr (mbar) 1 (1.3)x10-4 Wired for 230V, 60Hz, 3Ph 1376M-01... - Page 14 Section 6: DIMENSIONAL DRAWING...
-
Page 15: Vacuum Pump
Section 7: PUMPING SPEED CURVES HIGH EFFICIENCY PUMPING CHARACTERISTIC OF DUOSEAL® PUMPS The low RPM design of DuoSeal vacuum pumps makes it possible to maintain high pumping effi ciencies into the low micron range. High RPM direct drive vacuum pumps, on the other hand, experience a rapid fall off of pumping speed below 100 microns. - Page 16 Section 8: EXPLODED VIEW...
- Page 17 PARTS LIST ITEM DESCRIPTION ITEM DESCRIPTION 2-00-2706 SCREW PAN HD 10-32 x 3/8” LG. 41-1688 LARGE RING 2-00-6712 SCREW SOCKET HD 10-32 x 3/4” LG. 41-1692 AIR FILTER, MESH 2-01-0316 SCREW HEX HD 5/16-18 x 1” LG. 41-1736 GAS BALLAST VALVE 2-01-0356 SCREW HEX HD 5/16-18 x 3-1/2”...
-
Page 18: Oil Case
VIEW AND PARTS LIST FOR MODEL 61-8101 Parts List for Model 61-8101 Item Qty. Description 61-2229A Oil Window Glass 61-2278 Drain Valve 61-2370 Oil Window Cover 61-8833 Oil Case, Machined 62-1014 Screw 8-32x3/8” Flat Head 66-0304 O-ring #127 Afl as... -
Page 19: Section 09 - Accessory Section
Section 9: ACCESSORY SECTION Exhaust Filter Filters oil mist from pump exhaust / Easy Replacement Reduces pump noise / Filters to 0.3 micron particle size Standard Exhaust Filter Dimension Catalog Number Diameter Height Filter Replacement Element Use with pump model 1392, 1399, 1400 1417 1417L... - Page 20 Coaxial Traps Reduces oil back streaming / Stainless steel construction / Easy Replacement of Element ISO Size Capacity Diameter Height Cat.No.1 NW16 to 4 CFM (140 L/min) 3.75 5.25 8.25 541001 Stainless Steel Element for ISO NW 16 Trap 1 541921 Stainless Steel Element for ISO NW 25 and NW 40 Traps1 541922...
- Page 21 Section 10: MSDS-Sheet for DUOSEAL® OIL MATERIAL SAFETY DATA SHEET FOR: 1407K DUOSEAL VACUUM PUMP OIL HMIS Rating: Health: 0 Flammability: 1 Reactivity: 0 Special: X SECTION 1 - IDENTIFICATION Chemical Name: Highly-Refined Petroleum Lubricant Oils Synonyms: 1407K DUOSEAL Vacuum Pump Oil Formula: Manufacturer’s Name: Gardner Denver Thomas, Inc., Welch Vacuum Technology...
- Page 22 Ingestion: If swallowed, large volumes of material can cause generalized depression, headache, drowsiness, nausea, vomiting and diarrhea. Smaller doses can cause a laxative effect. If aspirated into the lungs, liquid can cause lung damage. Chronic Health Contains a petroleum-based mineral oil. Prolonged or repeated skin contact can cause Effects Summary: mild irritation and inflammation characterized by drying, cracking, (dermatitis) or oil acne.
- Page 23 SECTION 5 - FIRE FIGHTING MEASURES NFPA Flammability OSHA/NFPA Class-IIIB combustible liquid. Slightly combustible! Classification: Flash Point/Method: CLOSED CUP: 210°C(410°F). (Pensky-Martens (ASTM D-93)) OPEN CUP: 238°(460°F) (Cleveland.). Lower Flammable Limit: No data Upper Flammable Limit: No data Auto-Ignition Temp.: Not available Hazardous Comb ustion Products: Carbon Dioxide, carbon monoxide, smoke fumes, unburned hydrocarbons and trace...
- Page 24 SECTION 8 - EXPOSURE CONTROLS AND PERSONAL PROTECTION Engineering Controls: Provide exhaust ventilation or other engineering controls to keep the airborne concentrations of mists and/or vapors below the recommended exposure limits (see below). An eye wash station and safety shower should be located near the work-station. Personal Protective Equipment: Personal protective equipment should be selected based upon the conditions under which...
- Page 25 SECTION 9 – PHYSICAL AND CHEMICAL PROPERTIES Liquid Light Amber to Amber Physical State: Color: Mild Petroleum Odor 0.88(Water = 1) Odor: Specific Gravity: Vapor Density: GT 1 (Air = 1) Boiling Point/Range: Melting/Freezing Point: N/A Vapor Pressure: 0.01mm of Hg (20°C) Viscosity (cSt @ 40°C): 65 Density: 7.30 Lbs/gal.
- Page 26 SECTION 13 – DISPOSAL CONSIDERATIONS Hazard characteristic and regulatory waste stream classification can charge product use. Accordingly, it is the responsibility of the user to determine the proper storage, transportation, treatment and/or disposal methodologies for spent materials and residues at the time of disposition. Conditions of use may cause this material to become a hazardous waste, as defined by Federal or State regulations.
- Page 27 CWA: This material is classified as an oil under Section 311 of the Clean Air Act (CWA) and the Oil Pollution Act of 1990 (OPA). Discharges or spills which produce a visible sheen on waters of the United States, their adjoining shorelines, or into conduits leading to surface waters must be reported to the EPA’s National Response Center at (800) 424-8802.
- Page 28 WELCH-ILMVAC Vacuum Pump Repair Facility 5621 W. Howard Street Niles, IL 60714 Phone: (847) 676-8800 (Technical Support) Fax: (847) 677-8606 E-Mail: gdwelchvacuum@gardnerdenver.com Web-Page: www.welchvacuum.com This document contains confi dential and trade secret information which is the property of Welch Vacuum Technology and receipt or possession does not convey any rights to loan, sell, or otherwise...
