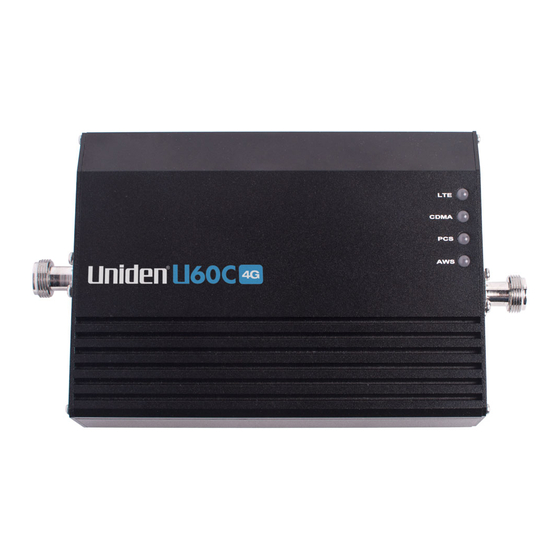

Summary of Contents for Uniden U60C
-
Page 2: Table Of Contents
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com TABLE OF CONTENTS About The Booster Kits ................. Safety and Warnings ................Booster Kit Components ..............How It Works ................... Overview ....................Check For Signal Strength ..............Run Coaxial Cable ................. Install the Signal (Outdoor) Antennas .......... -
Page 3: About The Booster Kits
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com NOTE: This manual contains important safety and operating information. Please read and follow the instructions in this manual, failure to do so could be hazardous and result in damage to your cellular booster. -
Page 4: Safety And Warnings
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com SAFETY AND WARNINGS • Turn AC power OFF at the mains before working on any electrical connections. • All AC power wiring and coaxial cable wiring must conform to local or national codes. •... -
Page 5: Booster Kit Components
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com BOOSTER KIT COMPONENTS BOOSTERS OUTDOOR ANTENNAS (signal) YAGI PANEL POST INDOOR ANTENNAS (distribution) WHIP PANEL DOME CABLES (various lengths available) U400 OPTIONAL ACCESSORIES (sold separately) Lightning Surge Protector Antenna Mounting Pole... -
Page 6: How It Works
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com HOW IT WORKS The cellular booster provides reliable two-way cellular coverage by improving signal strength in homes, buildings, offi ces, and other areas where cellular reception is weak or unreliable. The system amplifi es the signal from the nearest cellular tower and retransmits at a higher power level within a local area. -
Page 7: Overview
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com HOW TO INSTALL YOUR CELLULAR BOOSTER OVERVIEW This guide will help you properly install your cellular booster kit. It is important to read through all of the installation steps before installing your equipment. Thoroughly read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment. - Page 8 Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com BOOSTER – select location Install the booster in an area that is protected from the weather, properly ventilated and is away from excessive heat and moisture. SIGNAL ANTENNA (outdoor) - select location Mount the signal (outdoor) antenna in an elevated outdoor location so that it points towards the cellular tower and away from where the inside antenna will be located.
-
Page 9: Check For Signal Strength
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com IDENTIFY THE BEST LOCATION TO INSTALL THE SIGNAL (OUTDOOR) ANTENNA. Check for signal strength Select a location on the roof of the building to install the signal antenna, by monitoring your cellular phone’s signal strength (signal bars) to fi nd the strongest signal from your carrier’s cellular tower. -
Page 10: Run Coaxial Cable
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com RUN COAXIAL CABLE Loosely run the coaxial cable from your outdoor antenna to your booster. (after you have tested the system you can permanently secure the coaxial cable). As you route and pull cabling, follow these general guidelines: •... - Page 11 Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com HOW TO INSTALL THE COAXIAL CABLE FROM YOUR OUTDOOR ANTENNA TO YOUR BOOSTER. Step 1: Loosely run the coaxial cable from your outdoor antenna to your booster (this way you can test the system before you permanently secure the coaxial cable). Outdoor Antenna Booster Step 2: Mount the signal (the outdoor antenna).
- Page 12 Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com Step 3: After the outdoor antenna is mounted connect the supplied coaxial cable to antenna. Step 4: Attach the cable so that a drip loop is formed. Drip Loop Step 5: Connect the cable to the cellular booster where it is marked “outdoor”. outdoor cable booster...
-
Page 13: Understand The Different Signal (Outdoor) Antennas
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com UNDERSTAND THE DIFFERENT SIGNAL (OUTDOOR) ANTENNA Signal (outdoor) antennas, are needed to capture the signal emanating from your carrier’s cellular tower. There are different types of signal (outdoor) antennas each designed to meet your specific needs. The yagi lpda antenna, the post antenna &... -
Page 14: Install & Connect The Distribution (Indoor) Antennas
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com LIGHTNING SURGE PROTECTOR (sold separately) The lightning surge protector can be installed indoors or outdoors. When connecting outdoors, install the lightning surge protector inline between the signal antenna (outdoor) and the coaxial cable. When connecting indoors, install the lightning surge protector inline between the outdoor coaxial cable and the booster. - Page 15 Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com CONNECTING THE DISTRIBUTION (INDOOR) ANTENNA Dome omni directional antenna Connect one end of the coaxial cable to the dome antenna and the other end to the cellular booster where it is marked “indoor”. Indoor Booster Indoor Dome Antenna...
-
Page 16: Understand The Different Distribution (Indoor) Antennas
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com Whip omni directional antenna Connect the antenna’s end directly to the connector on the cellular booster where it is marked “indoor”. Indoor Booster Whip Antenna UNDERSTAND THE DIFFERENT DISTRIBUTION ANTENNAS There are several types of distribution (indoor) antennas: the whip antenna, the dome antenna &... - Page 17 Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com THE DOME ANTENNA The dome antenna is an omni-directional antenna with a 360 degree reach. It is designed to distribute the signal from the center of the affected area. Typically it is installed in a false or dropped ceiling.
- Page 18 Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com NOTE: installing additional distribution (indoor) antennas may be necessary when the area that needs coverage is very large or has barriers that block cellular signals such as multi level homes and buildings. Image 1&2: Omni directional antennas will provide better coverage for square rooms.
- Page 19 Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com ANTENNA SEPARATION Point Yagi antenna away from indoor antenna Indoor antenna Oscillation is caused when the indoor (distrubution) antenna sends a signal back into the outdoor (signal) antenna. Similar to a PA system, when the microphone gets too close to the speaker it causes feedback.
-
Page 20: Power Up Your Cellular Booster
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com INSTALL YOUR CELLULAR BOOSTER Install the cellular booster in a location that is properly ventilated and not exposed to excessive heat, moisture and/or direct sunlight. The optimal area would be on a wall located near a power outlet. It should be mounted in an easily accessible area so it’s easy to perform general maintenance with the coaxial cable connections, dip switch settings and power adaptor. - Page 21 Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com IMPORTANT: Do not connect your cellular device to the cellular booster, as it may damage your cellular device. IMPORTANT: Never point the front of the yagi signal (outdoor) antenna towards the inside of the distribution (indoor) antenna. Verify that the supplied coaxial cables from both the signal (outdoor) antenna and the distribution (indoor) antenna are properly connected to the cellular booster before powering it up.
-
Page 22: Check The Cellular Booster Status Alarm Lights
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com CHECK THE BOOSTER LED ALARM LIGHTS Your cellular booster comes equipped with electronic sensors designed to identify cellular signal overload or oscillation which can hinder signal- boosting performance. Your cellular booster is specially designed to automatically decrease gain to compensate for these circumstances. -
Page 23: Troubleshooting
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com TROUBLESHOOTING The LED alarm lights represent the status of the booster on each frequency. When the lights are green the device is operating normally meaning that it is not experiencing any oscillation (feedback) and it is boosting the signal at maximum power. - Page 24 Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com By capturing the best input signal you will be able to enjoy the maximum coverage and best quality signal inside where your distribution antennas are located. The better the input signal, the better the output signal. In order to find the best input signal, you want to place your outdoor (signal) antenna as high as possible with the least amount of obstruction between the antenna and the cellular base tower.
-
Page 25: Faq
Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com FREQUENTLY ASKED QUESTIONS WHY ARE THE LED LIGHTS TURNING ORANGE, RED OR SHUTTING OFF? There are certain cases where your system could be experiencing oscillation. This can be attributed to either the quality of your input signal or having your signal (outdoor) antenna and distribution (indoor) antenna too close together. - Page 26 Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com I INSTALLED THE BOOSTER AND MY SIGNAL STRENGTH IS STILL WEAK In order to correct a weak signal; essentially you have the options of: • Adjust the aim of the signal (outdoor) antenna or replace it with a higher gain antenna.
- Page 27 Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com MY LED’S ARE ALL GREEN BUT MY SIGNAL IS STILL WEAK - MY COVERAGE IS POOR If you receive a signal where you did not previously... or, if the radius of the service area covered is small...and your LED’s are all green...
- Page 28 Contact Tech Support at 1.800.239.0394 or email at support@unidencellular.com INSTRUCTION MANUAL Phone: 1-800-239-0394 Email: support@unidencellular.com unidencellular.com The Uniden trademark is owned by Uniden America Corporation and its affiliates is used under license by Signifi Mobile.
