CHAPTER 2 | FEATURES AND DESCRIPTION

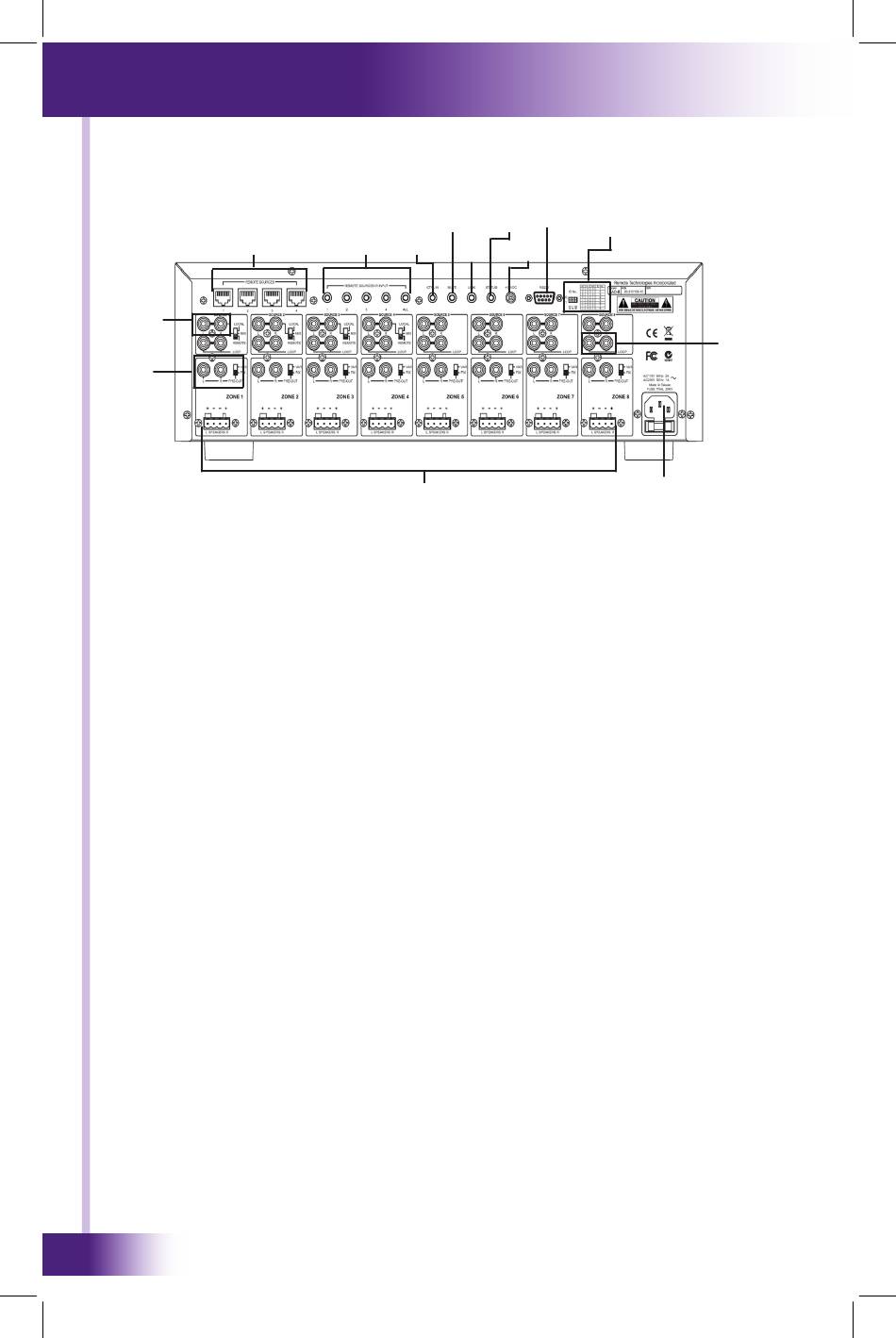

AD-8 REAR PANEL
5
18
5. Local Source Inputs
Stereo RCA inputs for audio signal from up to eight independent audio
sources (receiver, cable box, satellite radio etc.), with buffered loop
out capabilities. You have the option of selecting whether the remote
source, local source, or both sources are used.
6. Remote Source Inputs
RJ-45 jacks for connection of up to four RTI Remote Source wall plates
(model RSP-1) for independent audio sources located remotely (iPod
dock, CD player, PC, etc.). Remote Source wall plates installed in
locations where the audio source devices will be used are wired back to
the AD-8 with Cat-5 cable, and provide a convenient audio signal path
from the source to the AD-8 as well as IR control of the source from an
RTI control system.
7. Remote Source IR Control Inputs
These 3.5mm mini-jack inputs are for connecting to an IR output port
of an RTI control system for control of a remote audio source. The IR
control is then delivered over the same Cat-5 cable that runs between
the AD-8 and an RTI Remote Source wall plate (RSP-1). See above
- Remote Source Inputs. There is a remote source IR control input
for each of the four audio sources allowing for independent IR control
of each device. There is also an input labeled "All" that will allow the
delivery of IR to all connected sources at the same time.
8. Infrared Control Input
This 3.5mm mono mini-jack is for infrared control of the AD-8 from a
control system. A discrete set of IR codes is available within the RTI
Integration Designer programming software or on the RTI website (RTI
dealer accessible only).
NOTE: Mini-jack is mono with tip = IR+, ring=Gnd.
