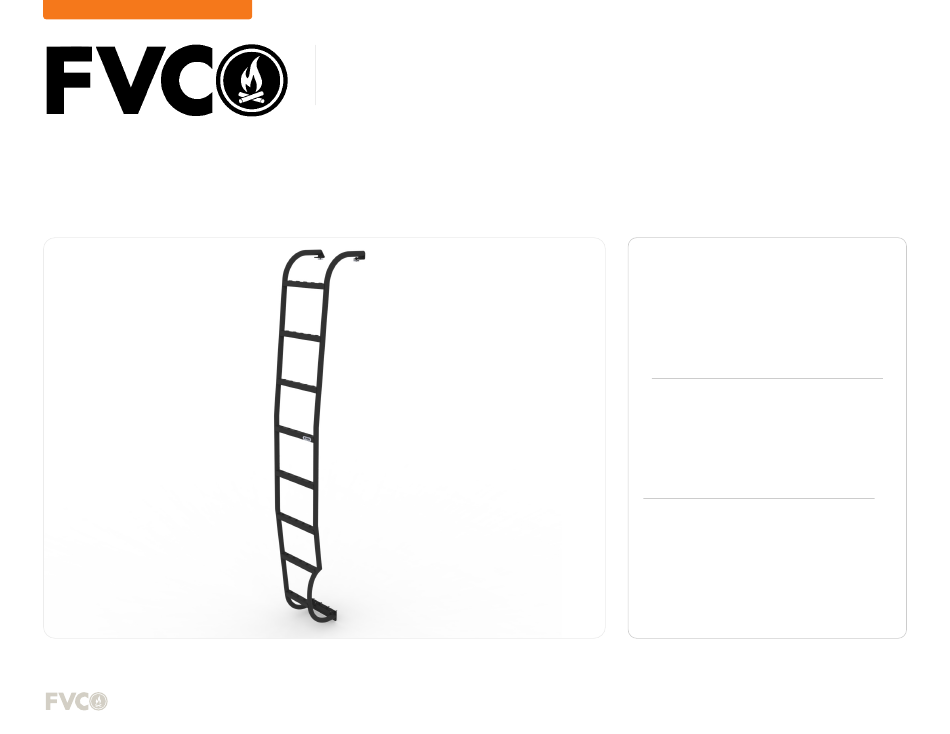

S PRI NTER VAN WHEE L WR AP S ID E L ADD ER
SP0206 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
9/16" WRENCH OR SOCKET
+
7/16" WRENCH OR SOCKET
+
7/32" ALLEN WRENCH
+
5/32" ALLEN WRENCH
+
POWER DRILL
+
1/2" DRILL BIT
+
1/8" DRILL BIT
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 1 HOUR
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC SP0206B
Summary of Contents for FVC SP0206B
- Page 1 INSTALLATION GUIDE S PRI NTER VAN WHEE L WR AP S ID E L ADD ER SP0206 B TOOLS REQUIRED (NOT INCLUDED) 9/16” WRENCH OR SOCKET 7/16” WRENCH OR SOCKET 7/32” ALLEN WRENCH 5/32” ALLEN WRENCH POWER DRILL 1/2” DRILL BIT 1/8”...
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents
PACKAGE CONTENTS MOUNTING PLATE SUPPORT BRACKET LADDER UPPER HALF LADDER LOWER HALF QTY: 1 QTY: 1 QTY: 1 QTY: 1 BAYONET COUPLER QTY: 2 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 1/4 X 1 HEX HEAD WITH 3/8-16 X 0.75 BUTTON HEAD 3/8 SCREW BELLEVILLE SEALING WASHER DRILLING SPRINTER RAIL NUT HEX DRIVE SCREW SPRING LOCK WASHER SCREW QTY: 2 QTY: 2 QTY: 2 QTY: 4 1/4-20 X 0.75 FLANGED 3/8-16 X 1 BUTTON HEAD HEX 3/8 SCREW FLAT 3/8-16 NYLON INSERT...
- Page 5 INSTALL TOOLS REQUIRED FOR THIS STEP: STEP | 01 LAYOUT AND INSTALL PREP 1.1 Identify Van Configuration: There could be any number ROOF RAIL of accessories mounted to your van that may inform the way you approach the install of your Side Ladder (Roof Racks, Side Steps, Water Tanks, etc.) See FIG 1 for key areas that will need accessed.
- Page 6 TOOLS REQUIRED FOR THIS STEP: 5/32” ALLEN WRENCH STEP | 02 SIDE LADDER ASSEMBLY 2.1 Install Bayonets to Top Ladder Half: Find the Top Half of the Side Ladder and insert Bayonets as shown in FIG 4. Secure using (2ea) 1/4-20 x 0.75 Flanged Button Head Hex Drive Screws and Loctite.
- Page 7 7/32” ALLEN WRENCH TOOLS REQUIRED FOR THIS STEP: STEP | 03 SIDE LADDER FITTING 3.1 Roof Rail Nuts: Slide in Rail Nuts to location of install along the Roof Rail (FIG 8+9). In this case, directly above the Rear Wheel Well. NOTE - If you already have a Roof Rack installed, this can be a somewhat lengthy process.
- Page 8 TOOLS REQUIRED FOR THIS STEP: 7/32” ALLEN WRENCH 9/16” WRENCH OR SOCKET POWER DRILL 1/2” DRILL BIT STEP | 04 SIDE LADDER ALIGNMENT 4.1 Align Side Ladder to Wheel Well: Align the contour of the Side Ladder to that of the Rear Wheel Well (FIG 12). NOTE- We like to place the ladder as close to the rear wheel well as we can.
- Page 9 TOOLS REQUIRED FOR THIS STEP: POWER DRILL 1/8” DRILL BIT 9/16” WRENCH OR SOCKET 7/32” ALLEN WRENCH 7/16” WRENCH OR SOCKET 5/32” ALLEN WRENCH STEP | 05 SIDE LADDER INSTALL 5.1 Fastening Support Bracket to Van: After drilling, swing the bracket back in place and loosely attach using (1) 3/8-16 x 1”...
- Page 10 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
