Summary of Contents for Bluescience G03-027

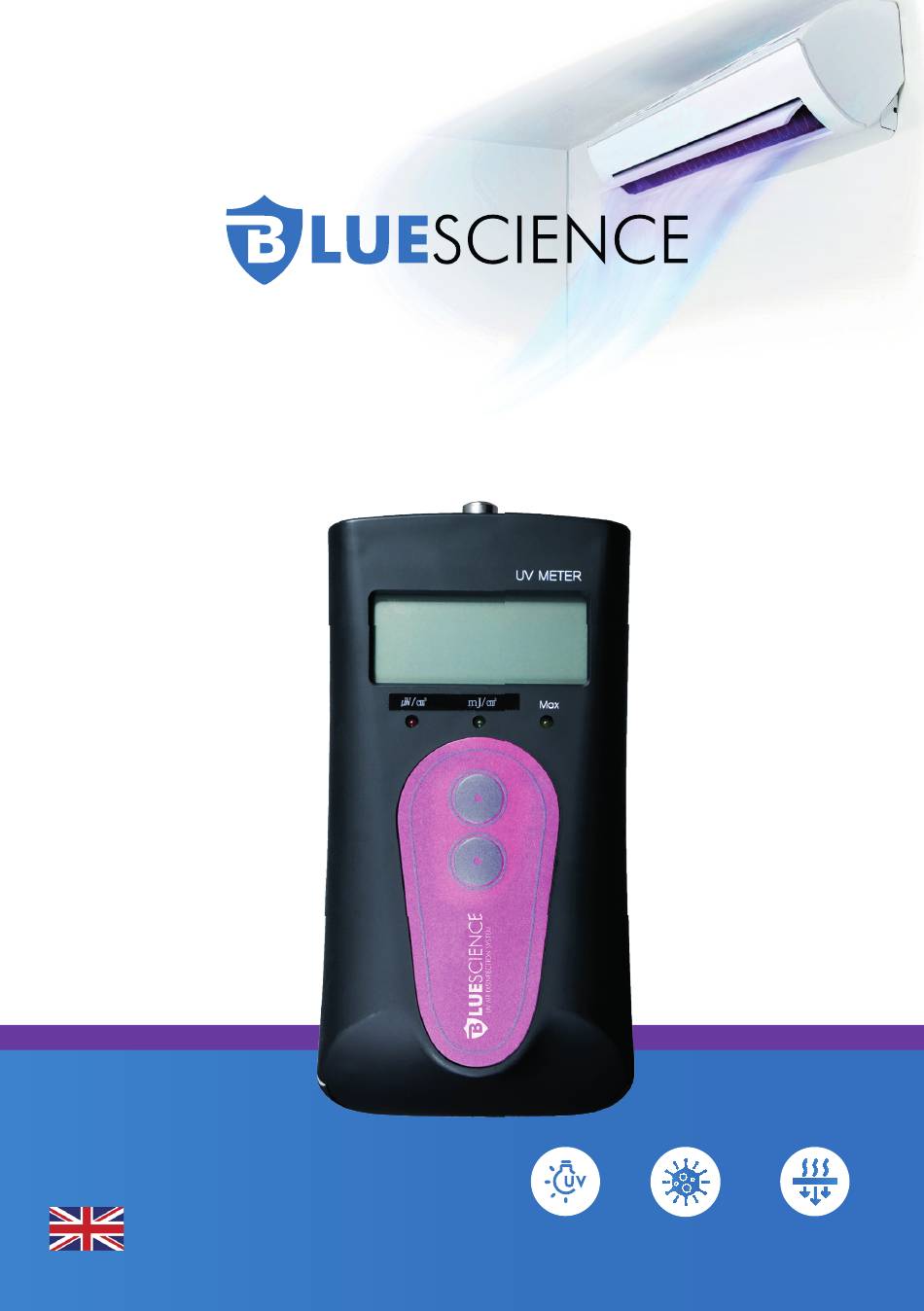

- Page 1 UV AIR DISINFECTION SYSTEM BLUESCIENCE RADIOMETER OPERATING MANUAL NEUTRALISES KILLS LIGHT ODOURS VIRUSES...
-
Page 2: Product Operation Method
1. PRODUCT FEATURES AND SPECIFICATIONS 2. RELATIVE RESPONSE CURVE 3. CAUTION 4. PART NAMES AND FUNCTIONS 4.1 FRONT SIDE 4.2 BACK SIDE 5. PRODUCT OPERATION METHOD 5.1 BATTERY CHECK 5.2 PRECAUTIONS FOR BATTERY REPLACAMENT 5.3 POWER ON AND OFF 5.4 FUNCTION BUTTON 5.5 RESET CUMULATIVE LIGHT INTENSITY (DOSE) OR MAXIMUM LIGHT INTENSITY (MAX. - Page 3 BLUESCIENCE RADIOMETER OPERATING MANUAL UV AIR DISINFECTION SYSTEM 1. PRODUCT FEATURES AND SPECIFICATIONS Item Model Name G03-027 Detection Power Range 0.00 ~ 100µW/cm²* Spectral detection range 220 ~ 280nm Calibration peak point 254nm (Lamp) Resolution 0.01µW/cm² Absolute Power (µW/cm²), Dose (mJ/cm², cumulative time: Function Max.
- Page 4 BLUESCIENCE RADIOMETER OPERATING MANUAL UV AIR DISINFECTION SYSTEM 2. RELATIVE RESPONSE CURVE Wavelength (nm) G03-027 3. CAUTION Wear protective gear when monitoring UV lamps. Allow lamps to warm-up prior to talking reading (at least 5 minutes). Do not subject the meter to extremes in temperature, humidity, shock or dust.
-
Page 5: Power Button

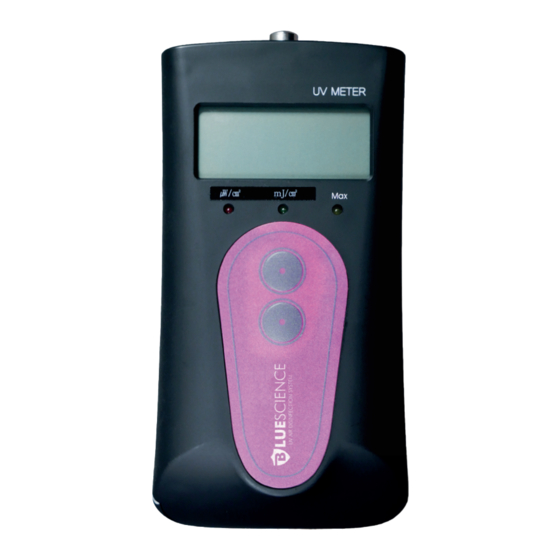

BLUESCIENCE RADIOMETER OPERATING MANUAL UV AIR DISINFECTION SYSTEM 4. PART NAMES AAND FUNCTIONS 4.1 FRONT SIDE Light-reciving Unit Digit LCD Display Function Display LED Power Button Function Button LIGHT-RECIVING UNIT. DIGIT LCD DISPLAY. This is a four-digit LCD display. FUNCTION DISPLAY LED. - Page 6 BLUESCIENCE RADIOMETER OPERATING MANUAL UV AIR DISINFECTION SYSTEM 4. PART NAMES AND FUNCTIONS 4.2 BACK SIDE Model No. : G03-027 Procuct Information Type: UVC Meter Detection Range: 220~280 nm Sticker Power Range: 0~100.0 µW/cm² NIST Traceable Battery Cover S7.1-001 PRODUCT INFORMATION STICKER.
-
Page 7: Battery Check
BLUESCIENCE RADIOMETER OPERATING MANUAL UV AIR DISINFECTION SYSTEM 5. PRODUCT OPERATION METHOD 5.1 BATTERY CHECK Remove the battery cover on the back of the main unit and check if the 9V battery is included. 5.2 PRECAUTIONS DOR BATTERY REPLACAMENT Pulling the connector forcibly can cause it to break. -
Page 8: Power On Or Off
BLUESCIENCE RADIOMETER OPERATING MANUAL UV AIR DISINFECTION SYSTEM 5. PRODUCT OPERATION METHOD 5.3 POWER ON OR OFF If you push the power button on 3 seconds, translate the decice ON/OFF. Push the Push the power button power button on 3 seconds... - Page 9 BLUESCIENCE RADIOMETER OPERATING MANUAL UV AIR DISINFECTION SYSTEM 5. PRODUCT OPERATION METHOD 5.6 MEASURING THE LIGHT POWER The sensor is located on the top of the body. The measurement surfrace of the sensor is positioned perpendicular to the UV light source or solar light that you want to measure.
- Page 10 BLUESCIENCE RADIOMETER OPERATING MANUAL UV AIR DISINFECTION SYSTEM 6. FAQ 6. FAQ Error Item Check List Press and hold the power button for more than 3 seconds. A short push will not power up. When power is Please make sure that 9V battery is installed.
- Page 11 UV PPE FROM UV AIR DISINFECTION SYSTEM P22-001 Protective Eyewear P22-002 Gloves G03-027 UV-c Meter AVAILABLE FROM...
- Page 12 UV AIR DISINFECTION SYSTEM NEUTRALISES KILLS LIGHT ODOURS VIRUSES...
