Summary of Contents for ALVEO3D ALVEOONE-R free stand

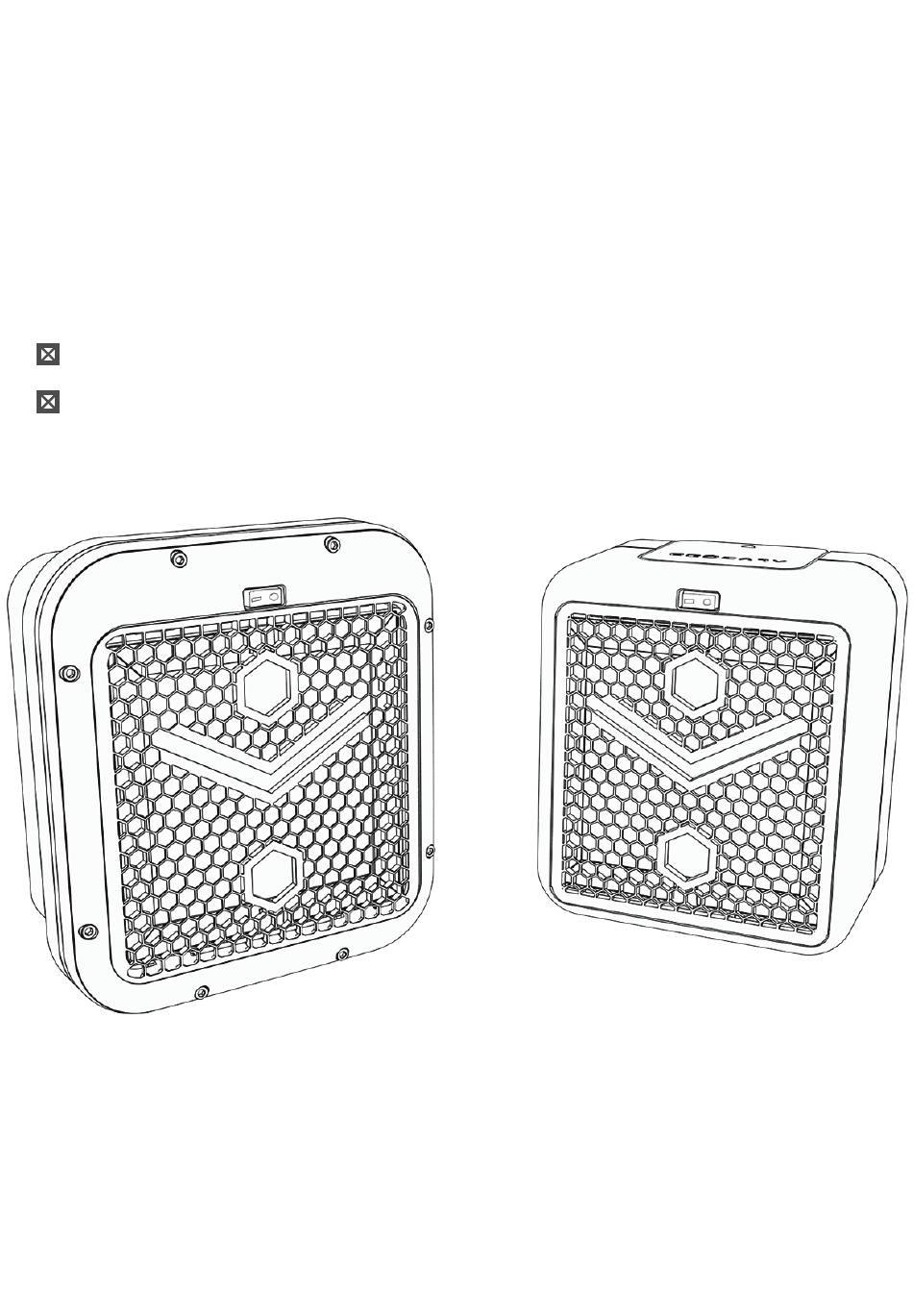

- Page 1 ASSEMBLY INSTRUCTIONS Air filtration kit for 3D printer enclosures ALVEOONE-R free stand ALVEOONE wall mounted Find all our assembly tutorials on www.alveo3d.com/en/assembly/ ALVEO3D v1.3 EN...
- Page 2 ELEMENTS PROVIDED Elements included in the alveoONE kit Electronic board v1 Power supply24 Volts Fan ALHP2425-H8 Filter P3D Cylindrical screw M3 25mm x8 Hexagonal nut M3 x8 Cylindrical screw M4 40mm x4 Hexagonal nut M4 x4 EPDM sealing cord 50cm x2 Non slip pad x4 Sealed plastic bag (for used filter)
-
Page 3: Tools Needed
TOOLS NEEDED Not provided tools needed to assembly the kit Hexagonal key 2.5 mm (for screw M3 & M4) 6 point pipe wrenches 7mm (for nut M4) Cutters Not provided recommanded tools to replace the filter Gloves Mask FFP2 or better... - Page 4 SAFETY Read all instructions before using. This filtration kit use a very powerful fan. Turn it on only after you are done assembly with the printed protection fan grid. Ignoring these instructions can cause injuries. Please use recommanded electrical voltages to power electronic board, as indicated in the assembly instructions to prevent damage.
-
Page 5: Installation Recommendation
Yo must print all parts to assembly the kit properly. You can find all STL files in the confirmation mail after purchase or download it on this link : https://www.alveo3d.com/en/download-alveoone/ Wall mounted Wall mounted type requires bespoke cutting to size following the cutting template: template you can print from the STL file or following the blueprint on page 6. - Page 6 WALL MOUNTED KIT : ALVEOONE...
- Page 7 FREE STAND KIT : ALVEOONE-R...
- Page 8 - with an external 24V power supply via the connector called EXT_PWR. In this case the external power supply will control the board and not the switcher. ALVEO3D designed an extended V2 controller board (a remote control available on our website) fully compatible with the V1 electronic board, if you own the board v1.3 or more.
-
Page 9: Step 1 - Panel Cut-Out
STEP 1 - PANEL CUT-OUT Kit concerned : ALVEOONE-R free stand ALVEOONE wall mounted Choose the best position for the filterbox and trim the panel following : - the printable cutting template - watch our tutorial : www.alveo3d.com/en/assembly/ - or use the printer drawing find below. We also have attached a real sized drawing in your package. - Page 10 STEP 2 - ELECTRONIC BOARD POSITIONING Kit concerned : ALVEOONE-R free stand ALVEOONE wall mounted Our design allows the electronic board to be mounted without screws Rails Slide the board on the end of rails. Board Switcher first, push the board inside the rails.
- Page 11 STEP 3 - POSITIONING SEALING CORDS Kit concerned : ALVEOONE-R free stand ALVEOONE wall mounted Insert the sealing cord in the groove on the printer filter part. Cut off the extra cord and ensure to get sealing cord all over the groove (not free space).
- Page 12 STEP 4 - FAN POSITIONING Kit concerned : ALVEOONE-R free stand ALVEOONE wall mounted Insert the fan cable into fan box duct, remove properly the printed supports. Make sure the fan label is oriented towards the filter side. Slightly tilt the fan as the drawing to ease its installation in the printed fan part.
- Page 13 STEP 5 - MAIN PARTS FIXATION Kit concerned : ALVEOONE-R free stand ALVEOONE wall mounted Position the filter printed part in front of the fan printed part to match drill holes from all three parts (printed filter part + printed fan part + fan) .
- Page 14 STEP 6 - POSITIONING MIDDLE RING Kit concerned : ALVEOONE-R free stand ALVEOONE wall mounted Put the middle ring to the inclined surface on the printed filter part. Middle_Ring...
- Page 15 STEP 7 - TIGHTENING RING PREPARATION Kit concerned : ALVEOONE-R free stand ALVEOONE wall mounted Put all nuts in nut holes in the tightening ring. if needed, use a clamp to push nuts in their holes. Tightening_Ring Push every nuts to the end of holes following the nut...
- Page 16 STEP 8 - ASSEMBLING WALL MOUNTED BOX Kit concerned : ALVEOONE-R free stand ALVEOONE wall mounted Place the filterbox (alveoONE) on the trimed panel. Put the tighten ring from the back of the filterbox. Tighten the 8 M3 srews.
- Page 17 STEP 9 - FILTER Kit concerned : ALVEOONE-R free stand ALVEOONE wall mounted Place the activated carbon black side toward the outside and the white HEPA side toward the fan. Put the filter in the printed filter box to bottom by pressing on the black frame only.
- Page 18 STEP 10 - GRID Kit concerned : ALVEOONE-R free stand ALVEOONE wall mounted Clip the fan protection grid, the two big honeycombes and the flexibility of the material can help. Fan_Door Clip the front grid to protect the filter and to kit the filter in the proper place.
- Page 19 STEP 11 - NON-SLIP PAD Kit concerned : ALVEONE-R free stand ALVEOONE wall mouted Put the non slip pad in the groove of the back of the filtebox.
- Page 20 STEP 12 - LAST ONE Kit concerned : ALVEOONE-R free stand ALVEOONE wall mounted Plug power supply. Power supply 24V DC jack External power supply 24V (Double check the polarity) (Provided) Slide the electronic board cover in the rails. The arrows can help you to take the cover out, keep it in a removal direction.
- Page 21 NOTES HEPA Filter P3D lifetime: Filter working life are associated with many factors including: filament type, melting temperature, concentration of nanoparticles and VOCs, ambiant humidity... We suggest to replace HEPA filter P3D according to the following table: Intensive use Occasional use Filter replacement 3 months 6 months...
- Page 22 NOTES Filter replacement tracking: Date Date of purchase Replacement 1 Replacement 2 Replacement 3 Replacement 4 Replacement 5 Replacement 6 Replacement 7 Replacement 8 Replacement 9 Replacement 10 Replacement 11 Replacement 12 Replacement 13 Replacement 14 Replacement 15 Replacement 16 Replacement 17 Replacement 18...
- Page 23 NOTES Comments:...
- Page 24 Breathe ! You are filtering ! Share your filterbox on www.facebook.com/alveo3d/ ALVEO3D by FLEXEE SYSTEM SAS 386 Rue de la Curiaz 73290 La Motte-Servolex www.alveo3d.com contact@alveo3d.com Designed and packaged in France...
