MULT-K
Mult-K Plus

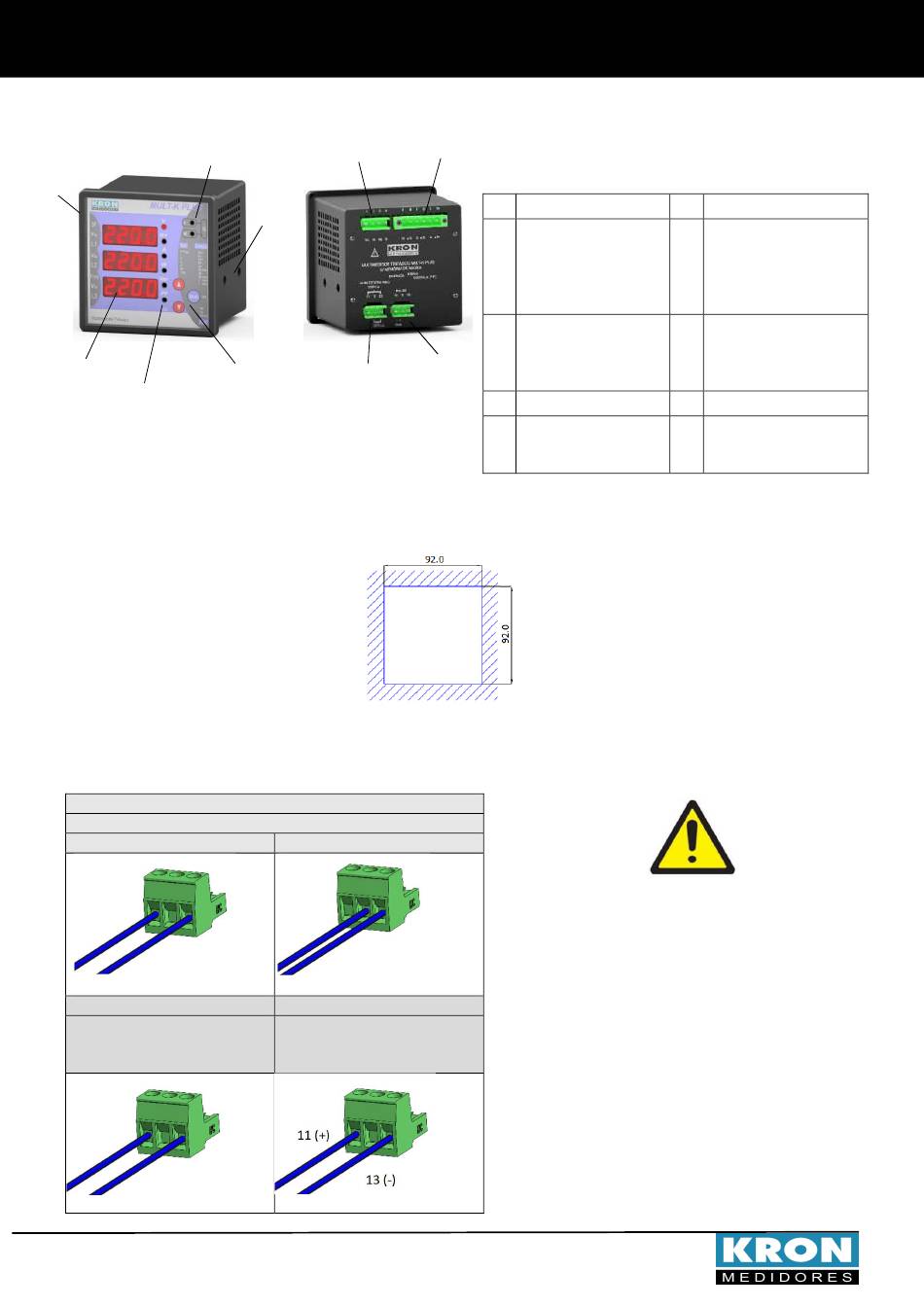

❶ Knowing the Product
❷ Installing the Product
Accomodate the meter on the panel cutout and fasten it using the side locks
❸ Power Supply Connection
Power Supply signal must be applied to the
present in the meter.
Selectable AC Voltage (220 or 120 Vac)
Working Range: 80 to 120%
220Vac
11 (Ph)
13 (Ph/N)
Universal Power Supply
Working Range:
85 to 265 Vac / 100 to 375Vdc
11
13
(Without Polarity)
Quick Installation Guide – Mult-K Plus - Revision 5.2 – July, 2020
terminal block
120Vac
12 (Ph)
13 (N)
DC Power Supply
Working Range:
24, 48 Vdc: 80 to 120%
12Vdc: 90 to 120%
11 (+)
13 (-)
Quick Installation Guide
Mult-K Plus
LED display
Three rows for
parameter checking
(measurements and
configurations)
Indicative LEDs
Type of parameter
currently showed in
the display
Navigation keys
Indicative LEDs
Multiplicative factors
(k and M)
.
Panel's cutout dimensions must be 92x92mm.
.
Cabling must be connected in accordance to the power supply option
Pay extreme attention to the type of auxiliary power
Incorrect cabling connection or applying a voltage
signal above the specified limits can damage it
Side locks
Power Supply
Input
Voltage Input
Current Input
RS-485 Output
ATTENTION
supply of your meter.
severely.
