FTE Maximal PS-S4500 Manual

Installation example
S1814 PS-S4500 PS-S4500
RESET
power distribution bus

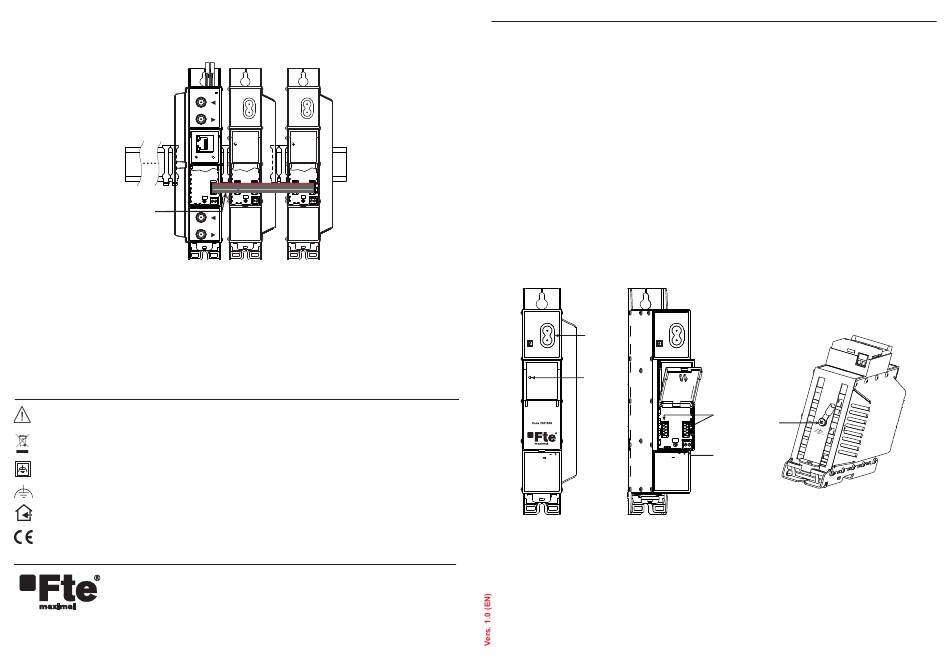

Figure 6. System with 2 PS units PS-S4500 in parallel connection
Caution!
This product complies with the relevant clauses of the European Directive 2002/96/EC. The unit must be recycled
or discarded according to applicable local and national regulations.
Equipment is double insulated from the mains, with functional earthing.
Functional earthing. Crimp Cu wire cross section (1.5-2.5) mm
Equipment intended for indoor usage only.
This product is in accordance to following norms of EU: EMC norm EN50083-2, safety norm EN IEC62368-1
and RoHS norm EN50581.
BCN Distribuciones S.A.U.
Milà i Fontanals, 118-120
0 8 2 0 5 S a b a d l l e B (
Tel.: +34 93 729 27 00 | Fax: +34 93 729 30 73
info@ftemaximal.com
www.ftemaximal.com
LNB IN 13/18V
0.5A max
LOOP
S1814
PS-S4500 PS-S4500
STATUS STATUS
ETHERNET
STATUS
MIX DC IN 12V
RF OUT
and connect to main potential equalization.
2
a c r e o l n a , ) S p a n i
Power supply for parallel connection PS-S4500
Product description
Switch mode power supply unit (PSU) PS-S4500 is intended to supply devices, required increased reliability of supply
voltage for back-up function implementation. Enable work of 2 or more PS-S4500 in parallel connection.
The unit is intended for indoor use only.
Safety instructions
Installation of system must be done according IEC60728-11 and national safety standards.
The PSU is powered from the mains 230 V~. This voltage is dangerous to life.
Any repairs must be done by a skilled personnel.
PSU is double isolated from the mains 230 V~.
Do not remove the cover without disconnecting PSU from the mains.
Do not plug the PSU into the mains supply if the power cord or plug is damaged.
The mains socket must be easily accessible.
PSU shall not be exposed to dripping or splashing water.
Avoid placing PSU next to central heating components and in areas of high humidity.
If the PSU has been kept in cold conditions for a long time, keep it in a warm room no less than 2 hours before plugging
into the mains.
The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers,
table-cloths, curtains.
Mount the PSU in vertical position.
From top, front and bottom of installed PSU must be at least 10 cm free space.
External view
230 V~ 230 V~
1
50/60 Hz 50/60 Hz
65 Wmax 65 Wmax
PS-S4500
2
STATUS
12V 4.5Amax 12V
Figure 1. External view of PSU PS-S4500
1
- mains connector
2
- STATUS - indicator of the module's status (at normal conditions glows green,
at overload or overtemperature glows red)
3
- power distribution bus connectors
4
- 12 V output (screw terminal)
5
- functional grounding clamp
3
5
4
4.5Amax
