Summary of Contents for OVIDE KOKO

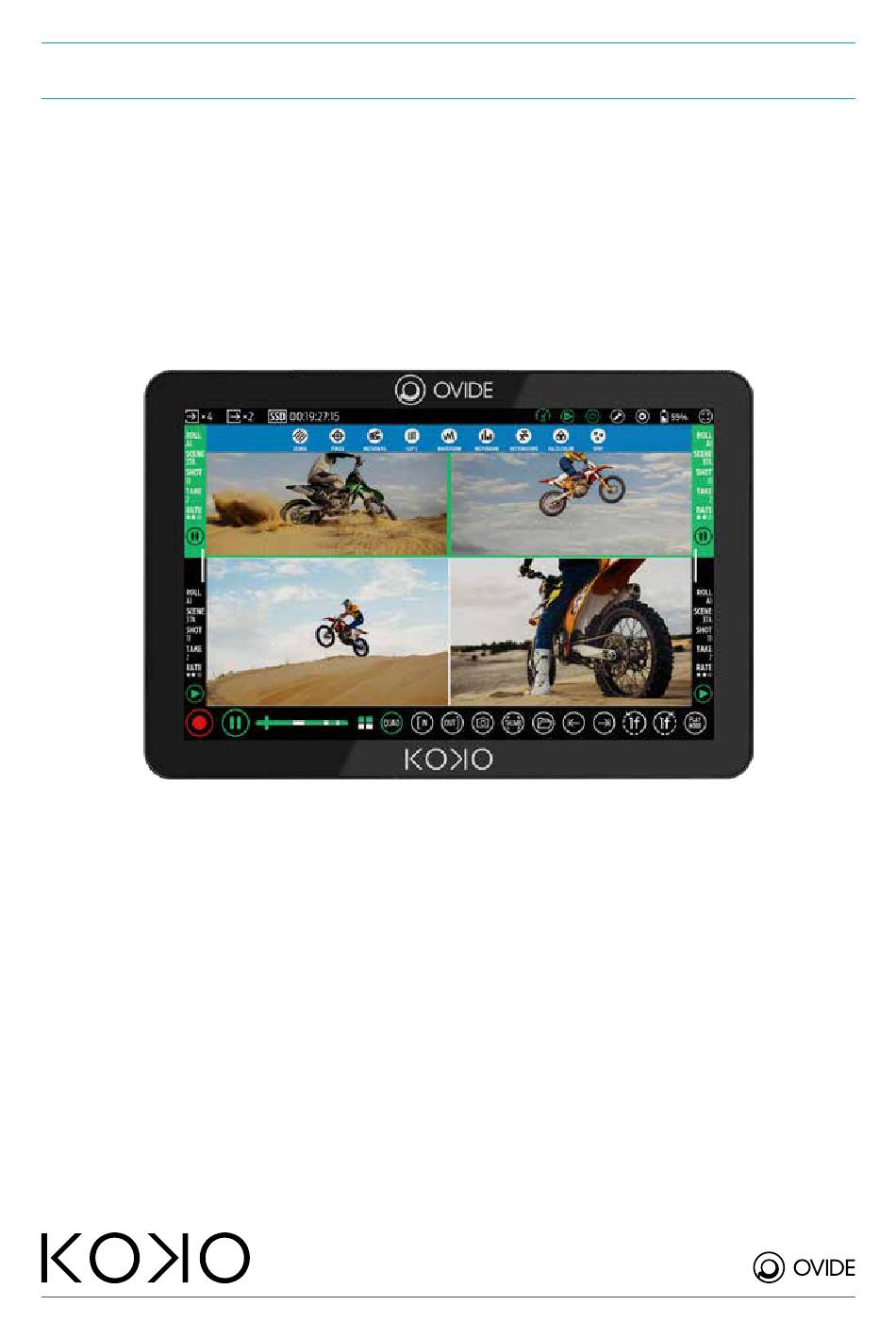

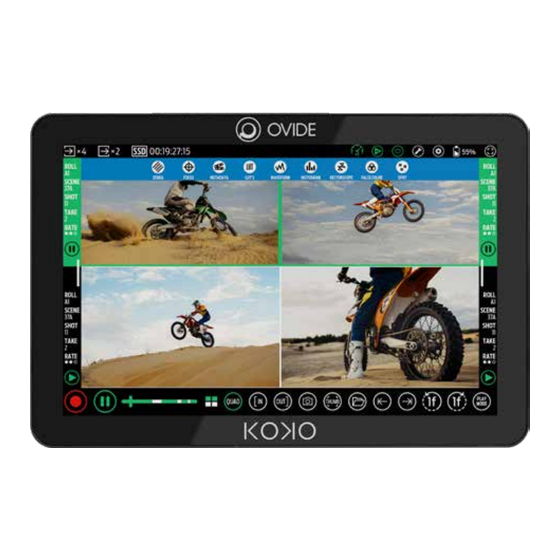

- Page 1 OVIDE KOKO USER MANUAL (DRAFT 1.0) Firmware v1.0 Designed & manufactured in Barcelona by...
-
Page 2: Location And Function Of Parts
Insert your SSD with the branding facing outwards, push it until you hear a click. To remove it, just pull it out. Battery slot: Attach V or Gold Mount type batteries (depending on your Koko’s battery mount). USB: For future expanded functionality. -
Page 3: First Use
Connect power to the monitor using a V-Monunt of Gold Mount battery (depending on your Koko’s mount) or connect the included DC power supply. Switch on Press the power button, you will see the Ovide logo and then it will start in record mode, showing you the 4 SDI inputs (views). Ovide Koko rear panel DISK... - Page 4 This example shows there are 4 feeds, 2 of them are selected 4 feeds, 2 of them are selected. (views 1 and 2). Shown views: This example Shown views: View 4 is on display. shows there are 4 views on display. KOKO USER’S GUIDE...
-
Page 5: Interface Overview
Play 1 frame/ 1” / 10” backwards or forwards. On tap, opens Skip Time options window (only on Play Mode). Play Mode: On tap, opens Play Mode options window (speed, loop/pong, reverse or single/all) (only on Play Mode). KOKO USER’S GUIDE... - Page 6 Indicates activated play modes. On click, opens Play Mode options window. Speed: Set play speed (×1 / ×2 / ×4) Loop / Pong: Play clip/s on loop / pong mode Reverse Play Play all / Play one: Play all clips or just play selected one. KOKO USER’S GUIDE...
