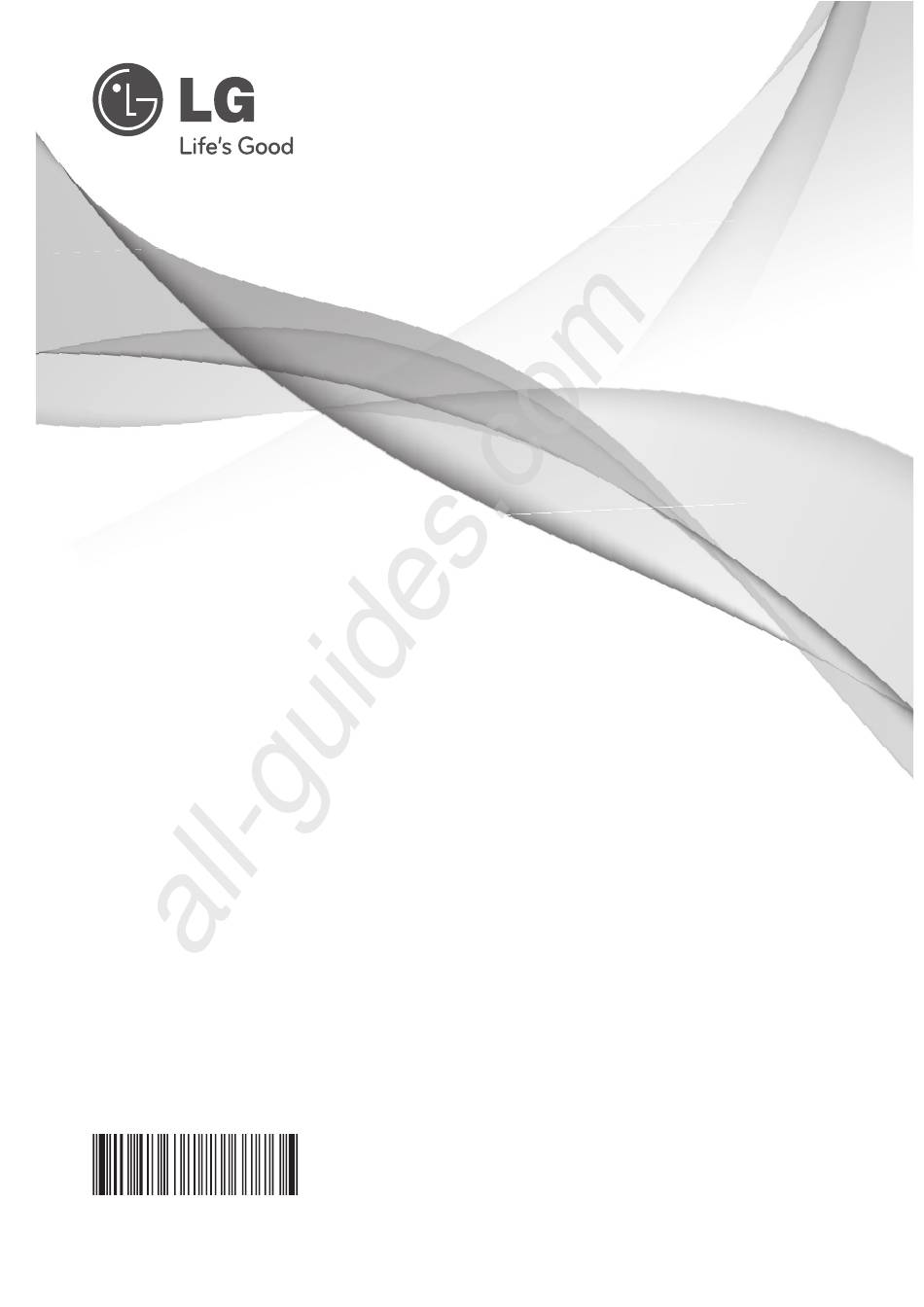

OWNER'S MANUAL
WASHING MACHINE
Before beginning installation, read these instructions carefully.
This will simplify installation and ensure that the washer is installed
correctly and safely. Leave these instructions near the washer
after installation for future reference.
F1695RDS(1~9)
P/No.: MFL67085072
All manuals and user guides at all-guides.com
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1695RDS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG F1695RDS Series

Summary of Contents for LG F1695RDS Series

  • Page 1 OWNER’S MANUAL WASHING MACHINE Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the washer is installed correctly and safely. Leave these instructions near the washer after installation for future reference. F1695RDS(1~9) www.lg.com P/No.: MFL67085072...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Contents Contents........2 Thank you for buying a LG Fully Product Features......3 Automatic Washing Machine. Important safety instructions Please read your owner’s manual Important safety instructions ....4 Basic safety precautions .......5 carefully, it provides instruction on safe Save these instructions......6...

  • Page 3: Product Features

    All manuals and user guides at all-guides.com Product Features Inverter Direct Drive system The advanced Brushless DC motor directly drives the drum without belt and pulley. 6 Motion Washer is able to perform various drum actions or a combination of different actions depending on the wash program selected.

  • Page 4: Important Safety Instructions

    All manuals and user guides at all-guides.com Important safety instructions READ ALL INSTRUCTIONS AND EXPLANATION OF THE INSTALLATION BEFORE USE. WARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death. Your Safety and the safety of others are very important.

  • Page 5: Basic Safety Precautions

    All manuals and user guides at all-guides.com Important safety instructions Basic safety precautions WARNING To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following: • Before installation, check exterior •...

  • Page 6: Save These Instructions

    All manuals and user guides at all-guides.com Important safety instructions Basic safety precautions WARNING To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following: • Before discarding an old machine •...

  • Page 7: Safety Instructions For Use

    All manuals and user guides at all-guides.com Important safety instructions Safety instructions for use To minimize the risk of fire within the inner bowl, the following should be observed: • Items that have been spotted or • Items containing foam rubber (also soaked with vegetable or cooking oil known as latex foam) or similarly constitute a fire hazard and should...

  • Page 8: Specifications

    All manuals and user guides at all-guides.com Specifications Power plug Transit bolts • If the supply cord is damaged, Drawer it must be replaced by the manufacturer or its service agents (For detergent and or a similarly qualified person in fabric softener) order to avoid a hazard.

  • Page 9: Installation

    All manuals and user guides at all-guides.com Installation Removing packing 1. Remove the cardboard box and styrofoam packing. 2. Lift the washing machine and remove the base packing. Washer 3. Remove the tape securing the power supply cord and drain hose. Base Packing 4.

  • Page 10: Installation Place Requirements

    All manuals and user guides at all-guides.com Installation Installation place requirements ❿ Location Washer • Level floor : Allowable slope under entire washer is 1˚. • Power outlet : Must be within 1.5 meters of either side of location of washer.
  • Page 11 All manuals and user guides at all-guides.com Installation ❿¤Electrical connection • Do not use an extension cord or double adapter. • If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard. •...
  • Page 12 All manuals and user guides at all-guides.com Installation CAUTION CAUTION concerning the Power cord • Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.

  • Page 13: Connecting Water Supply Hose

    All manuals and user guides at all-guides.com Installation Connecting water supply hose • Water supply pressure must be between 100 kPa and 1000 kPa (1.0 - 10.0 kgf / cm • Do not strip or crossthread when connecting inlet hose to the valve. •...
  • Page 14 All manuals and user guides at all-guides.com Installation Type-C : Connecting one touch type hose to tap without thread 1. Unscrew the adapter ring plate and the 4 adapter retaining screws. 2. Remove the guide plate if the tap is Ring plate too large to fit the adapter.

  • Page 15: Installation Of Drain Hose

    All manuals and user guides at all-guides.com Installation Installation of drain hose • The drain hose should not be placed higher than 100 cm above the floor. Water in the washer does not drain or drains slowly. about 100 cm •...

  • Page 16: Leveling

    All manuals and user guides at all-guides.com Installation Leveling 1. Leveling the washing machine properly prevents excessive noise and vibration. Install the appliance on a solid and level floor surface, preferably in a corner of the room. NOTE • Timber or suspended type flooring may contribute to excessive vibration and unbalance.
  • Page 17 • If possible install the washer in one of the corners of the room, where the floor is more stable. • Fit the rubber cups to reduce vibration. • You can obtain the rubber cups (p/no.4620ER4002B) from the LG spares dept. NOTE •...

  • Page 18: How To Use Washer

    All manuals and user guides at all-guides.com How to use washer Operating washing machine 1. Sort Laundry. (Refer to 19 page) 2. Open the door and load laundry. 3. Press the Power button. 4. Select a Program. (Refer to 20~24 page) Select options at this time (Refer to 26~31 page) Additional Program...

  • Page 19: Care Before Washing

    All manuals and user guides at all-guides.com How to use washer Care before washing 1. Care Labels Wash temperature Look for a care label on your clothes. Normal machine wash This will tell you about the fabric content of your garment Permanent press Delicate and how it should be washed.

  • Page 20: Washing Program Table

    All manuals and user guides at all-guides.com How to use washer Washing program table • Recommended courses according to the laundry type. Proper Maximum Description Program Fabric type Temp. Load Provides better performance by 40°C Cotton Color fast garments (shirts, combining various drum motions.

  • Page 21: Drying Program Table

    All manuals and user guides at all-guides.com How to use washer Drying Program Table Program Fabric type Maximum Load Eco Dry Cotton or Linen Fabrics Normal Dry 8.0 kg such as cotton towel, t-shirts, linen laundries. Normal Eco Dry Iron Dry Cotton or Linen Fabrics for ready to ironing.

  • Page 22: Extra Options

    All manuals and user guides at all-guides.com How to use washer Extra options Wash Options Program Time Steam Favorite Pre Wash Time Save Intensive Normal Delay Wash Cotton Cotton Eco Easy Care Allergy Care Silent Wash Refresh Duvet Sports Wear Wool Quick 30 Dry Only...
  • Page 23 All manuals and user guides at all-guides.com How to use washer Rinse Normal+Hold Normal Rinse +Hold Rinse Rinse...

  • Page 24: Operating Data

    All manuals and user guides at all-guides.com How to use washer Operating data Program Max RPM Cotton 1600 Cotton Eco 1600 Easy Care 1000 1600 Allergy Care 1600 Silent Wash 1000 Refresh – Duvet 1000 Sports Wear Wool Quick 30 1600 Dry Only 1600...

  • Page 25: Control Panel

    All manuals and user guides at all-guides.com How to use washer Control panel SMARTDIAGNOSIS™ function is Additional program available only for the products buttons display with a SMARTDIAGNOSIS™ mark. 0:59 Time Left Washing 40°C 1600 Power Program Start/Pause Beep Option button dial button...

  • Page 26: Additional Program

    All manuals and user guides at all-guides.com How to use washer Additional program Time Delay Favorite You can set a time delay so that the washing Favorite program allows you to store machine will start automatically and finish a customized wash cycle for future use. after a specified time interval.

  • Page 27: Options

    All manuals and user guides at all-guides.com How to use washer Options Other functions Wash Spin only • Time Save : This option can be used to 1. Press the Power button. reduce the time of a wash program. 2. Touch the Spin button to select RPM. •...

  • Page 28: Child Lock

    All manuals and user guides at all-guides.com How to use washer Child Lock Select this function to lock the buttons on the control assembly to prevent tampering. "Child Lock" can be set only during the washing cycle. Locking the control panel 1.

  • Page 29: Tub Clean

    All manuals and user guides at all-guides.com How to use washer Tub Clean Tub Clean is a special cycle to clean the inside of the washing machine. A higher water level is used in this cycle at higher spin speed. Perform this cycle regularly. 1.

  • Page 30: Dry

    All manuals and user guides at all-guides.com How to use washer • Cold water tap must be left on during drying 1. Drying Automatic guide cycles. • Use your Automatic Cycles to dry most loads. Electronic sensors measures the temperature of the exhaust to increase or decrease drying temperatures for faster reaction time and tighter temperature control.
  • Page 31 All manuals and user guides at all-guides.com How to use washer Fiber glass 2. Drying time guide - Do not dry fiberglass articles in your dryer. • By touching the DRY button, the drying time Glass particles left in the dryer could be picked can be selected.

  • Page 32: Adding Detergent

    All manuals and user guides at all-guides.com Adding detergent Adding detergent and fabric softener ❿¤The dispenser drawer • Main wash only ➔ • Pre Wash + Main Wash ➔ WARNING • Keep all washing detergents away from children as there is danger of poisoning. •...
  • Page 33 All manuals and user guides at all-guides.com Adding detergent ❿¤Detergent dosage • Detergent should be used according to the instruction of the detergent manufacture and selected according to type, colour, soiling of the fabric and washing temperature. • If too much detergent is used, too many suds can occur and this will decrease the washing result or cause heavy load to the motor.

  • Page 34: Maintenance

    All manuals and user guides at all-guides.com Maintenance • Before cleaning the washer interior, unplug the electrical power cord to avoid electrical shock hazards. • Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain(gully) in the immediate vicinity.

  • Page 35: The Drain Pump Filter

    All manuals and user guides at all-guides.com Maintenance The drain pump filter • The drain filter collects threads and small objects left in the laundry. Check regularly that the filter is clean to ensure smooth running of your machine. CAUTION •...

  • Page 36: Dispenser Drawer

    All manuals and user guides at all-guides.com Maintenance Dispenser drawer • After a while, detergents and fabric softeners leave a deposit in the drawer. • It should be cleaned from time to time with a jet of running water. • If necessary it can be removed completely from the machine by pressing the catch downwards and by pulling it out.

  • Page 37: The Washing Drum

    All manuals and user guides at all-guides.com Maintenance The washing drum • If you live in a hard water area, limescale may build up continuously in places where it cannot be seen and thus not easily removed. Over time the build up of scale clogs appliances, and if it is not kept in check these may have to be replaced.

  • Page 38: Troubleshooting Guide

    All manuals and user guides at all-guides.com Troubleshooting guide • This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately. When the machine does not function properly or does not function at all, check the following points before you contact your service provider.
  • Page 39 All manuals and user guides at all-guides.com Troubleshooting guide Symptom Possible Cause Solution Washer does not • Electrical power cord may not be Make sure plug fits tightly in wall start plugged in or connection may be outlet. loose. • House fuse blown, circuit breaker Reset circuit breaker or replace tripped,or a power outage has fuse.

  • Page 40: Error Messages

    All manuals and user guides at all-guides.com Troubleshooting guide Error Messages Symptom Possible Cause Solution • Water supply is not adequate in area. Check another tap in the house. • Water supply taps are not completely open. Fully open tap. •...

  • Page 41: Using Smartdiagnosis

    Accordingly, LG does not guarantee that Smart Diagnosis would accurately troubleshoot any given issue.

  • Page 42: Terms Of Warranty

    All manuals and user guides at all-guides.com Terms of Warranty Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
  • Page 43 All manuals and user guides at all-guides.com Memo...
  • Page 44 All manuals and user guides at all-guides.com For U.K. Customer CUSTOMER SERVICES Tel. : +44-(0) 844 847 LGLG(5454) Fax. : +44-(0) 844 847 1413 LGEUK SERVICE WEB-SITE : http://www.lg.com...
