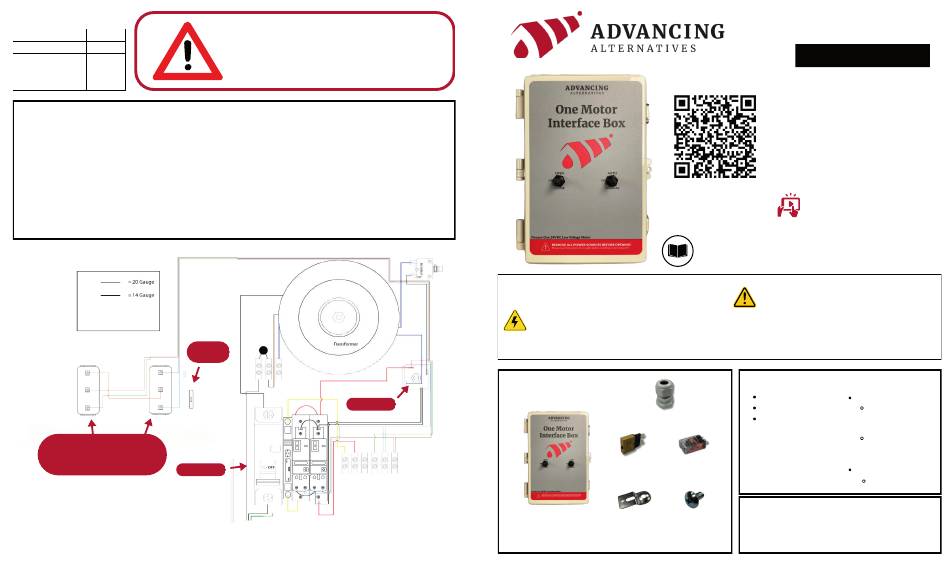

Advancing Alternatives 42-ECO1200 Quick Start Manual

Specifications
Transformer 300W
120V Primary Breaker 4A
240V Primary Breaker 2A
Secondary Breaker 10A
Motor Voltage 26-32V
Troubleshooting
My motor is not running. Confirm presence of 26-32V DC at the relay board terminals labeled
"-24V+" (NOT the terminals labeled ("+24V"). If this voltage is not present, it is likely that the rectifier
is damaged.
My breaker is tripping. (1) This is usually a sign of a damaged rectifier. Apply power with the DC
rectifier terminals disconnected. If the breaker still trips, the rectifier needs replacement. (2) If the
breaker does not trip with the DC rectifier terminals disconnected, disconnect the "24V+" wires from
the relay boards one board at a timeto determine if the breaker trips. The board causing the tripping is
suspect and should be substituted or replaced.
Motor Relays
Recommended maintanance
schedule calls for replacing relays
every two years.
Main Breaker
Turn off prior to
servicing unit
All electrical connections must be made by a
qualified, licensed electrician. All connections must be
made in accordance with all state and local codes.
The inside of the box housing the transformer has
high voltage which can be dangerous.
Resettable
Motor Ciruit
Rectifier
Safety Information:
SHOCK HAZARD Electric shock can kill.
Touching live electrical parts can cause fatal
shocks or severe burns.
What's Included:
Cable Glands (x2)
5A Breaker* Plug-In Relays
42-ECO1200
Mounting Mounting
screws (x4)
Brackets (x4)
Images not to scale.
42-ECO1200

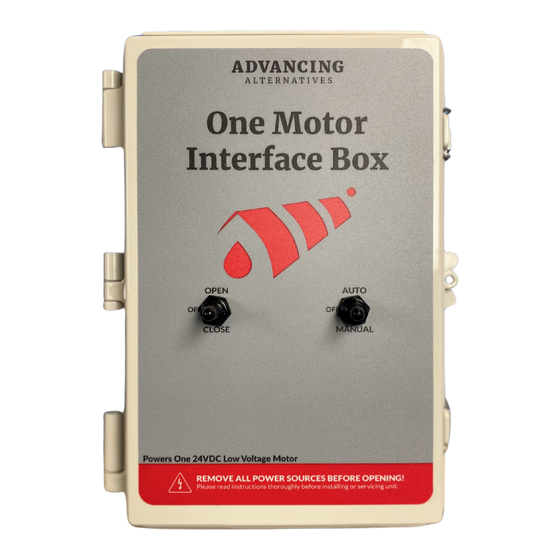

One Motor Interface Box
Quick Start Guide
Scan the QR Code to visit our
Knowledge Center, which features the
full instruction manual and other
resources.
Warranty Registration:
advancingalternatives.com/register
Visit Advancing Alternatives' YouTube
Channel to Access Video Tutorials
IMPORTANT
For detailed instructions and technical support, visit
advancingalternatives.com/knowledge-center
WARNING All electrical connections
must be made by a qualified, licensed
electrician. All connections must be
made in accordance with all state and
local codes.
Tools & Materials Required:
Screwdriver (#1) Motor wire
Wire crimper
Drill with 7/8" bit
(if using provided
cable glands)
Signal Wire
(x2)
*Breakers Required for Motors
LVM-60: 3A breaker
LVM-180: 7.5A breaker
LVM-100: 5A breaker LVM-200: 10A breaker
14 AWG for less
than 100'
connections
12 AWG for
connections over
100'
18-22 AWG
