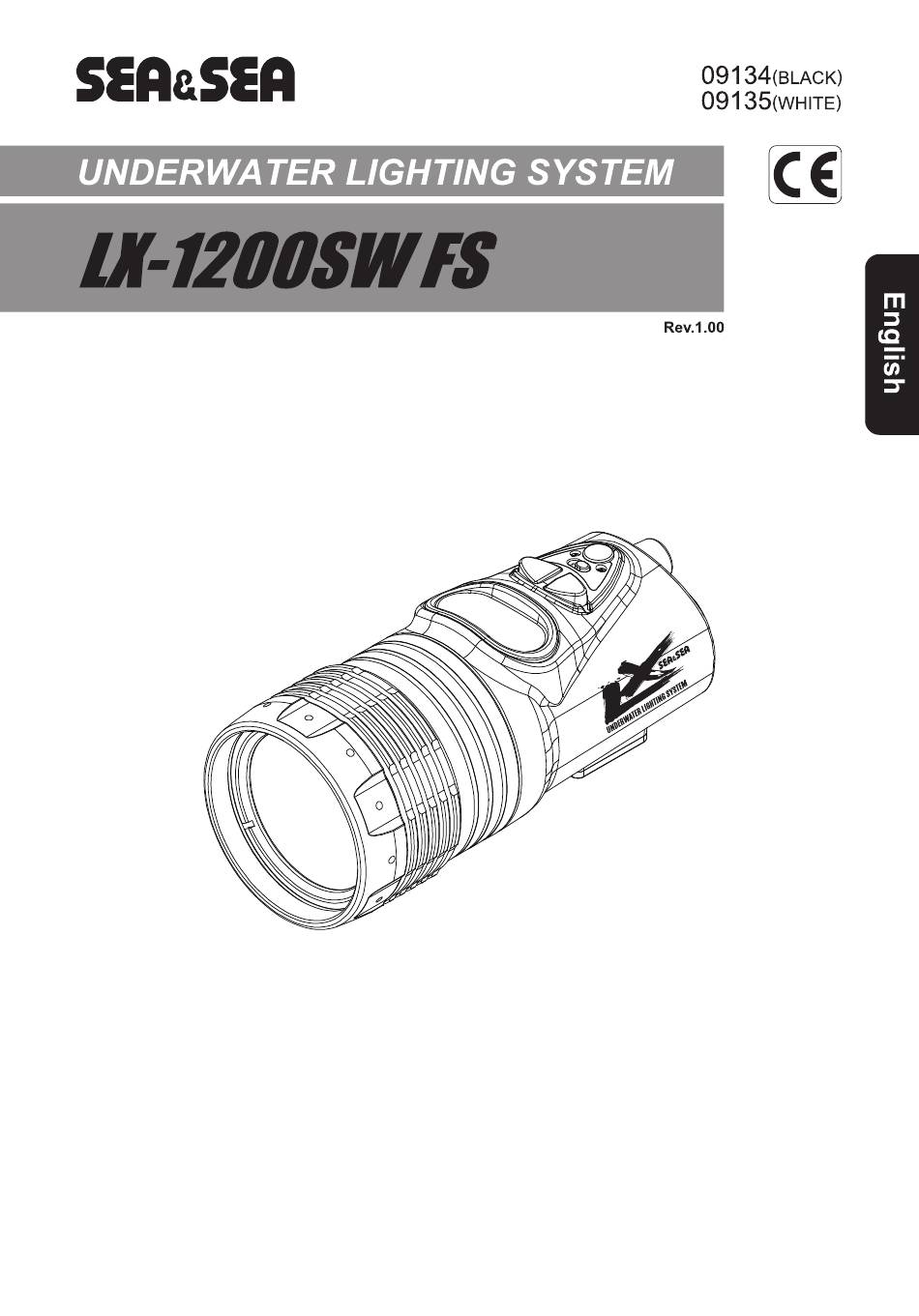

- Page 1 Instruction Manual...
- Page 2 Introduction Thank you for purchasing SEA&SEA products. Please read this instruction manual carefully prior to using your underwater strobe. Only with a thorough understanding of this manual's content will you be able to use the strobe correctly. After reading the manual, please be sure to keep it in a place where you can easily come back to it at any time.
-
Page 3: Table Of Contents
CONTENTS Safety Precautions ....................E-03 Safety precaution for use of battery ............... E-05 Precautions on Handling the O-ring ............... E-08 Check the bundle ....................E-10 Name of parts ....................E-11 Battery Installation ....................E-12 Charging the battery ..................... E-13 Removable charging ..................E-13 Direct charging.................... - Page 4 This product has been designed for underwater use only. Limit light emission out of water to check the setting only. Failure to heed the precautions listed below could result in serious consequences. To prevent injury or damage to yourself and/or others, please observe the precautions as they contain highly important information related to personal and product safety.
- Page 5 Safety Precautions Keep out of reach of children. There is a risk of accidental ingestion by swallowing included or small parts by mistake. If swallowed, seek medical advice immediately. CAUTION Read this instruction manual and observe proper precautions before use. This product has been designed and manufactured for use at a water depth within 100m/ 330ft.
-
Page 6: Safety Precautions
Safety Precautions Do not lift or carry the housing by holding this product or attached accessories. It may cause unexpected injury or malfunction resulting in fall or damage. Hold the housing itself or grip when carrying. Do not place heavy items or sit on the product. Heavy weight may deform the outer casing and damage internal parts resulting in fire, electrocution or malfunction. -
Page 7: Safety Precaution For Use Of Battery
Safety precaution for use of battery Never expose the battery to flame, fire or excessive heat. Never solder the battery directly. Never attempt to disassemble or modify. It is dangerous as it could cause heat generation, fire or splashing of strong alkaline liquid. Never short-circuit the terminals of a battery (+ and -) with metal objects (wire, necklace, hairpin etc). - Page 8 Safety precaution for use of battery Avoid strong shocks/impacts or throwing the battery. Always charge the rechargeable batteries before use if they have not been used for an extended period of time. Dirt on the battery terminals may prevent the product from clear contact resulting in the power being turned off or the battery not getting charged.
-
Page 9: Precautions On Handling The O-Ring
Precautions on Handling the O-ring The product is kept watertight by the O-ring. To keep the O-ring functioning properly, please observe the following. Improper handling of the O-ring could cause flooding. CAUTION SEA&SEA products use blue O-rings. These O-rings are impregnated with silicone oil through a special process. - Page 10 Precautions on Handling the O-ring Apply silicone grease Silicone grease reduces friction of the O-ring. After checking the O-ring to make sure that there are no scratches, dust or debris, apply a light coating of silicone grease to the entire O-ring with your finger.
-
Page 11: Check The Bundle
Check the bundle Before using the product, please make sure that all the bundled items are included. - Page 12 ●Output amount : The current output amount is displayed in increments of 1%. ●Remaining battery power : The remaining battery power is displayed in 4 level bars. ●Remaining burn time : The remaining burn time is displayed in real time. The remaining lighting time displayed in real-time is a theoretical value automatically calculated from remaining battery and amount of light.
- Page 13 Hold the body case firmly and rotate the light head counter-clockwise Make sure there is no dirt or water on the metal terminals of the battery Install the battery into the body case Hold the body case firmly and set the light head by rotating clockwise Twist the battery until the strobe light sensor comes to the top.
- Page 14 Make sure that the light power is off Remove the battery from the light Insert the charger AC plug into a power outlet Ensure the charger LED turns green Insert the charger connector into the battery Ensure the charger LED switches to red Disconnect the connector from the battery when charging is complete The charger LED switches to green once charging is complete.
- Page 15 Do not charge on paper, carpet or anything flammable as the battery and charger may become hot while charging. Do not charge with coiled cables as heat build-up may result in fire. Do not handle with wet hands or charge under wet circumstances to avoid electrocution.
- Page 16 Insert the respective base by sliding into the base holder from the rear of the light Secure the base lock screw by Allen Key A wrist lanyard can be affixed to the oval hole on each base...
- Page 17 Press the power/light adjustment button to turn on Mode and light intensity turn back on at the same condition from last use Hold down the power/light adjustment button for about 1 second to switch the mode Hold down the power/light adjustment button for about 3 seconds to turn off Mode switches for a moment just before turning itself off, but it is a specification, not an abnormality...
-
Page 18: Flash Sensor Mode
Light being captured from strobe imaging can be prevented, as the light turns off when sensing the strobe light Press the power/light adjustment button to turn on Hold down the light intensity adjustment buttons (+)(-) simultaneously for about 2 seconds to switch to the flash sensor mode When it senses the strobe light emission, it automatically turns off and automatically turns back on in 1 second... -
Page 19: Blinking Signal Mode
You can send SOS signals for rescue. Never use except in emergencies. Press the power/light adjustment button to turn on Hold down the light intensity adjustment button (-) and the power/light adjustment button simultaneously for about 2 seconds to switch to SOS mode It repeats [3 short blinks] >... -
Page 20: Replacing The Light Head
This product is compatible with separately sold light heads that have different maximum luminous power. Program switch is required following the procedure below after replacing the light head. Hold down the power/light adjustment button for about 7 seconds while turned off Select the program number of the light head after replacing using the light intensity adjustment buttons (+)(-) Fix the program switch by pressing the power/light adjustment button... -
Page 21: Safety Mode
If the light head reaches over 55°C (131°F), it automatically moves to protection mode and decreases the light intensity to 20%. The [HOT] warning is displayed on the LCD panel. If high temperature protection mode is engaged, we recommend turning off the power and cooling down the light head. -
Page 22: Care And Storage Precautions
Care and storage precautions CAUTION After use, soak the product in fresh water throughly as shown in the illustration under waterproof conditions and wash it under running water. Wash movable parts (levers, buttons etc.) moving them. Be careful not to loosen the light head when washing. If the product is not sufficiently soaked in fresh water or simply rinsed under running water, salt will remain and as it dries, the salt will crystalize and will not dissolve easily in water. -
Page 23: Specifications
Specifications...
