  • Page 1 2023 MCX-CM220 Embedded System USER MANUAL...
  • Page 2 MCX-CM220 Embedded System Revision Date Version Changes December 22, 2022 1.00 Initial release...
  • Page 3 MCX-CM220 Embedded System Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 MCX-CM220 Embedded System Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    XTERNAL ONNECTOR 2.2.1 MCX-CM220 Base Unit ................12 2.2.2 MCX-CM220 Base Unit with MCX-CM220-IS2EA Expansion Unit (1 x iDoor and 1 x 2.5”SSD/HDD) ................13 2.2.3 MCX-CM220 Base Unit with MCX-CM220-P11EA Expansion Unit (1 x PCIe expansion x4) ....................14 2.2.4 Power Connector ..................
  • Page 6 IRELESS ODULE NSTALLATION PTIONAL 3.7 E ) ............38 XTENSION NSTALLATION PTIONAL 3.7.1 iDoor and HDD/SSD Storage Extension Kit (MCX-CM220-IS2EA) ..38 3.7.2 PCIe x4 Expansion (MCX-CM220-P11EA) ..........42 3.8 R & R ..............47 EMOTE OWER ESET ETTINGS 3.9 BIOS S ....................
  • Page 7 MCX-CM220 Embedded System 4.9 AT/ATX S (SW8) ..................61 ETTING 4.10 R (CN12) ................62 ISER ONNECTOR 4.11 TPM 2.0 BIOS S ..................63 ETTING 4.12 CPU T BIOS S ..............64 URBO ETTING 4.13 TDP P BIOS S ............ 66...

  • Page 8: Overview

    MCX-CM220 Embedded System Chapter Overview...

  • Page 9: Introduction

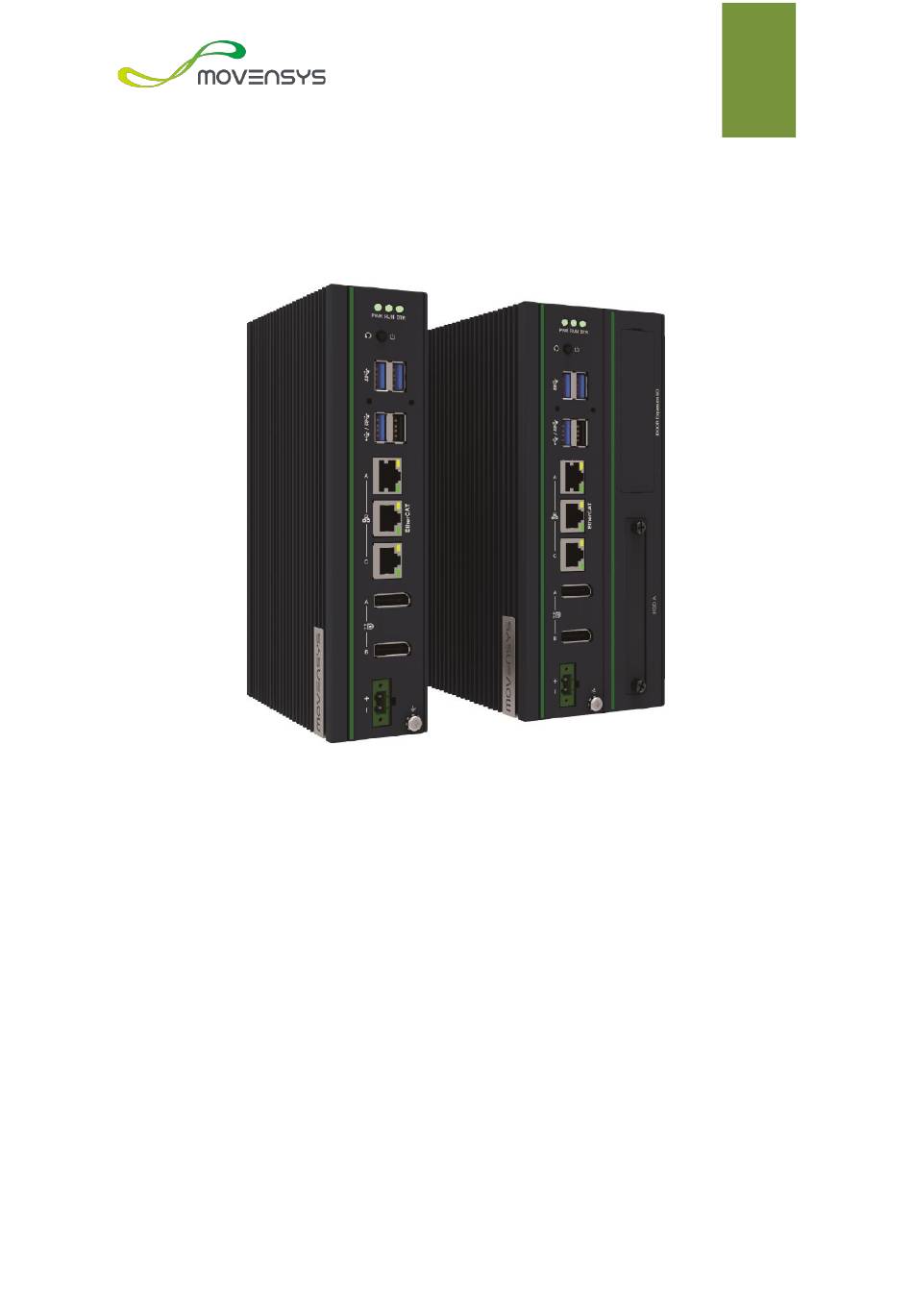

    1.1 Introduction Figure 1: MCX-CM220 Series Movensys MCX series are DIN-rail integrated controllers that feature a modular design for flexible configuration according to specific usage requirements. MCX-CM220 is equipped with an 11th Generation Intel® Core™ i Processor (standard 1.8 GHz, optional up to 4.4 Ghz) with 8 GB DDR4 RAM, and 3 x LAN, 4 x COM, 3 x USB 3.2...

  • Page 10: Safety Precautions

    Caution! Always ground yourself to remove any static electric charge before touching MCX-CM220. Modern electronic devices are very sensitive to static electric charges. Use a grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a static shielded bag.

  • Page 11: Packing List

    MCX-CM220 Embedded System 1.3 Packing List Please refer to below packing list: ▪ MCX-CM220 (with din-rail mount) ▪ 2 x 10 PIN Plug-in block for COM port ▪ 1 x 20 PIN Plug-in block for DIO Supports one 2.5" SATA HDD/SSD ▪...

  • Page 12: System Hardware

    MCX-CM220 Embedded System 1.4.2 System Hardware BIOS AMI UEFI 256Mbit Watchdog Timer Programmable timer with 255 intervals (1 ~ 255 sec) Hardware Security TPM 2.0 Processor 11th Gen Intel® Core™ i5-1145G7E, 1.5 GHz (up to 4.1 GHz) 2 Slots, Built-in 8 GB DDR4 3200 MHz (Default 8 GB single slot, Memory max.

  • Page 13: I/O Interfaces

    MCX-CM220 Embedded System 1.4.3 I/O Interfaces Serial Ports 4 x RS-232/422/485 (terminal block), 50 ~115.2 kbps (Isolation Protection: 2500 V LAN Ports 1x Intel® I225-AT 2.5GbE, Ethernet Chip 1x Intel® I210-IT GbE, Ethernet Chip 1x Intel® I219-LM GbE, Ethernet Chip USB Ports 3 x USB 3.2 Gen2 and 1 x USB 2.0 (Type-A)

  • Page 14: Certification

    1.4.6 Extension Kit (Optional) MCX-CM220 features a modularized design. Movensys offers an optional 2nd extension kit. ■ MCX-CM220-IS2EA Expansion unit (1 x iDoor and 1 x 2.5” SSD/HDD) Part number MCX-CM220-IS2EA 2nd stack extension kit to support 1 x iDoor and 1 x 2.5”...

  • Page 15: Dimensions

    MCX-CM220 Embedded System 1.5 Dimensions 45 x 140 x 200 mm (W x D x H mm) Figure 1.1 MCX-CM220 Dimension 80 x 140 x 200 mm (W x D x H mm) Figure 1.2 MCX-CM220 Dimension (With Optional Extension Kit)

  • Page 16: Hardware Functionality

    MCX-CM220 Embedded System Chapter Hardware Functionality...

  • Page 17: Introduction

    MCX-CM220 Embedded System 2.1 Introduction The following diagram shows the locations of the MCX-CM220 motherboard’s key components and internal/external connectors. Figure 2.1 Diagram of Connector Locations on MCX-CM220 (Top Side) Figure 2.2 Key Component Locations on MCX-CM220 (Bottom Side)
  • Page 18 MCX-CM220 Embedded System Table 2.1: Key Components, Connectors on Board Function Category Label Power Connector DisplayPort Connector DisplayPort Connector LAN Connector LAN Connector LAN Connector USB 3.0 + 2.0 Connector External USB 3.0 x2 Connector Reset Button + Power Button...

  • Page 19: External I/O Connector

    MCX-CM220 Embedded System 2.2 External I/O Connector 2.2.1 MCX-CM220 Base Unit Figure 2.3 Front Panel of MCX-CM220 Figure 2.4 Top View of MCX-CM220...

  • Page 20: Mcx-Cm220 Base Unit With Mcx-Cm220-Is2Ea Expansion Unit (1 X Idoor And 1 X 2.5"Ssd/Hdd)

    MCX-CM220 Embedded System 2.2.2 MCX-CM220 Base Unit with MCX-CM220-IS2EA Expansion Unit (1 x iDoor and 1 x 2.5”SSD/HDD) Figure 2.5 Front Panel of MCX-CM220 Figure 2.6 Top View of MCX-CM220...

  • Page 21: Mcx-Cm220 Base Unit With Mcx-Cm220-P11Ea Expansion Unit (1 X Pcie Expansion X4)

    MCX-CM220 Embedded System 2.2.3 MCX-CM220 Base Unit with MCX-CM220-P11EA Expansion Unit (1 x PCIe expansion x4) Figure 2.7 Front Panel of MCX-CM220 Figure 2.8 Top View of MCX-CM220...

  • Page 22: Power Connector

    (off/green/orange) and Active (green) status. 2.2.6 USB Connectors MCX-CM220 features 4 x USB ports that comply with USB EHCI (3 x USB 3.2, 1 x USB 2.0 (Type-A)) specifications. The USB connectors support plug-and-play and hot-swapping functionality for external devices. Additionally, this can be enabled / disabled in the BIOS menu.

  • Page 23: Com Connector

    MCX-CM220 Embedded System 2.2.8 COM Connector MCX-CM220 has 4 x COM RS232/422/485 ports of terminal block type. They offer transmission speeds of 50 ~115.2 kbps. The default mode for both COM ports (COM1&COM2) is RS-232 Mode. Settings can be adjusted via an on-board switch (SW1).

  • Page 24: Digital Input And Output

    MCX-CM220 Embedded System 2.2.9 Digital Input and Output There are 8 x digital inputs and 8 x digital outputs configured from GPIO pins for on/off triggering and status reading. The following table indicates the mapping for DIO and GPIO. And the below table indicates the mapping of DIO and Linux GPIO.
  • Page 25 MCX-CM220 Embedded System Digital Input ■ Input Channels 8 ■ Input Voltage (Wet Contact), Configure SW3 to Setting 3 Logic 0: 10~30 VDC Logic 1: 0~3 VDC ■ Input Voltage (Dry Contact), Configure SW3 to Setting 1 Logic 0: Shorted to GND Logic 1: Open ■...
  • Page 26 Each of the 8 x isolated digital input channels accept voltages from 0 to 30 V. The following figure shows how to connect an external input source to the isolated inputs of MCX-CM220. Figure 2.9 Isolated DI Wet Connection Diagram...
  • Page 27 (500 mA max./ch), the board's current will sink from the external voltage source. The following figure shows how to connect an external output load to the isolated outputs on MCX-CM220. Figure 2.11 Isolated DO Connection Diagram...

  • Page 28: Internal I/O Connectors And Switches

    MCX-CM220 Embedded System 2.3 Internal I/O Connectors and Switches The following figure demonstrates the locations of internal connectors and switches on the MCX-CM220 motherboard. Figure 2.12 Locations Internal I/O Connectors/Switches for MCX-CM220 Table 2.3: Internal Connectors and Jumper Switches Label Function...
  • Page 29 CN14-1 Nano SIM slot Connector BAT1 RTC Battery Connector BIOS update Setting Note! *This power is from DC Power inputs. Configure the MCX-CM220 to match the needs of your application by setting switches. The following details the switch setting definitions:...

  • Page 30: Connector

    MCX-CM220 Embedded System 2.3.1 M.2 Connector There is one M.2 B-Key connector for M.2 cards, labeled “CN14” on the board. This M.2 interface is an SATA signal co-lay with a USB signal. It will automatically detect which device you installed and determine the appropriate SATA or USB signal to use.

  • Page 31: Others

    MCX-CM220 Embedded System 2.4 Others Figure 2.13 Indicators, Reset Buttons, and Antenna Holes 2.4.1 LED Indicators Three LEDs indicate the status of the system’s power, RTC battery, and programmable LED for user configurations. ■ PWR (Power): Green indicates “normal” and orange indicates “standby”.

  • Page 32: Antenna Hole

    MCX-CM220 Embedded System 2.4.3 Antenna Hole This product offers two antenna mounting holes pre-cut for users to install an antenna kit for LTE or wireless functions. Note! Please be aware of the Maximum OD value of the Antenna Hole when selecting the antenna.

  • Page 33: Initial Setup

    MCX-CM220 Embedded System Chapter Initial Setup...

  • Page 34: Chassis Grounding

    MCX-CM220 Embedded System 3.1 Chassis Grounding MCX-CM220 provides good EMI protection and a stable grounding base. There is an easy-to-connect chassis grounding point. Figure 3.1 Chassis Grounding Connection The earth terminal should use a 16 AWG minimum size green and yellow conductor...

  • Page 35: Connecting Power

    MCX-CM220 Embedded System 3.2 Connecting Power This product is intended to be supplied by an approved power adapter or DC power source. This adapter is rated at 10 - 36 VDC, 7.7-1.31 A and has a maximum temperature of 70 °C (158 °F). If you need further assistance or information, please contact Movensys.

  • Page 36: Storage Installation (Optional)

    MCX-CM220 Embedded System 3.3 Storage installation (Optional) MCX-CM220 supports the installation of one M.2 2280 NVMe SSD. The installation is demonstrated in the following steps. 3.3.1 Installing M.2 2280 NVMe 1. Remove 2 screws from the MCX-CM220 back cover.
  • Page 37 MCX-CM220 Embedded System 2. Remove the provided screws from the board. 3. Insert the NVMe Card at the “CN15” location. Secure it with the provided screws from Step 2.

  • Page 38: Installing M.2 3042 Module

    MCX-CM220 Embedded System 3.3.2 Installing M.2 3042 Module 1. Loosen the provided screws on the board. (No need to remove the screws.) 2. Use the 3042 bracket from the accessory bag and insert it in the gap underneath where the screw was loosened in Step1.
  • Page 39 MCX-CM220 Embedded System 3. Move the 3042 bracket to the center of M.2 and tighten the screws. 4. Remove the provided screws from the 3042 bracket first. Insert the M.2 3042 card and tighten the screw.

  • Page 40: Installing M.2 3052 Module

    MCX-CM220 Embedded System 3.3.3 Installing M.2 3052 Module 1. Remove the provided screws from the board. 2. Insert the M.2 3052 to the “CN14” location and tighten the screw.

  • Page 41: 2230 Module

    MCX-CM220 Embedded System 3.4 Installing the M.2 2230 Module 1. Remove the provided screws from the board. 2. Insert the M.2 2230 to the “CN13” location and tighten the screw.

  • Page 42: Installing Mpcie

    MCX-CM220 Embedded System 3.4.1 Installing mPCIe 1. Remove the provided screws from the board. 2. Insert the mPCIe to the “MINI1” location and tighten the screw.

  • Page 43: Din-Rail Installation

    MCX-CM220 Embedded System 3.5 Din-Rail Installation 1. Install MCX-CM220 on the rail and secure it to the rail. Buckle inward 2. Pull down the “Release Latch” for disassembly using a screwdriver.

  • Page 44: Wireless Module Installation (Optional)

    MCX-CM220 Embedded System 3.6 Wireless Module Installation (Optional) MCX-CM220 supports a WiFi iDoor/M.2 3042/M.2 3052 module. Follow the steps below for installation: 1. Remove the 2 screws from the back cover of the MCX. 2. Remove the plugs in the pre-cut antenna hole(s) on the top panel for antenna installation.

  • Page 45: Extension Kit Installation (Optional)

    3.7.1 iDoor and HDD/SSD Storage Extension Kit (MCX-CM220-IS2EA) You can additionally install a 2nd stacked iDoor and external swappable 2.5" HDD/SSD storage extension kit (PN: MCX-CM220-IS2EA) on MCX-CM220 to expand its functionality: The accessory list for the extension kit (PN: MCX-CM220-IS2EA)
  • Page 46 MCX-CM220 Embedded System Follow the steps below for extension kit Installation: 1. Remove the 2 x M3x4L screws from the back cover of MCX-CM220. 2. Remove the 2 x M3x6L screws from the extension kit. 3. Detach the iDoor dummy cover from the iDoor extension kit.
  • Page 47 MCX-CM220 Embedded System 5. Attach the 2nd bracket (MCX-CM220-IS2EA) with 6 x M3x4L screws to the Base Unit (MCX-CM220).
  • Page 48 MCX-CM220 Embedded System 6. Connect the mPCIe connector of the iDoor module onto the board of the MCX-CM220 and affix it with the 2 x M2x4L screws from the accessory bag of the iDoor extension kit. 7. Detach the HDD/SSD bracket from the 2nd stack extension kit, then affix the 2.5”...

  • Page 49: Pcie X4 Expansion (Mcx-Cm220-P11Ea)

    9. Return the back cover and gently screw it into place. 3.7.2 PCIe x4 Expansion (MCX-CM220-P11EA) You can additionally install a 2nd stack PCIe x4 expansion kit (PN: MCX-CM220-P11EA) on MCX-CM220 to expand its functionality: The accessory list for the extension kit (PN: MCX-CM220-P11EA)
  • Page 50 MCX-CM220 Embedded System Follow the steps below for extension kit Installation: 1. Remove the 2 x M3x4L screws from the back cover of MCX-CM220.
  • Page 51 MCX-CM220 Embedded System 2. Attach the 2nd bracket (MCX-CM220-P11EA) with 6 x M3x4L screws to the Base Unit (MCX-CM220).
  • Page 52 MCX-CM220 Embedded System 3. Remove the PCIe cover and PCIe bracket from 2nd extension kit (MCX-CM220- P11EA) with 3 x M3x4L screws. 4. Install the PCIe card and tighten the screw.
  • Page 53 MCX-CM220 Embedded System 5. Return the back cover of MCX-CM220. Note! PCIe expansion module dimension limitations. The maximum length of the PCIe expansion module is 182 mm.

  • Page 54: Remote Power & Reset Settings

    (SW8) on the motherboard. The default setting is for DI6/DI7 functionality. If you want to configure MCX-CM220 for remote control functions, configure SW8-Bit 2 to “on”, then DI6 can be used for remote power settings, and DI7 can be used for remote reset setting.

  • Page 55: Bios Setting

    MCX-CM220 Embedded System 3.9 BIOS Setting With the BIOS Setup program, you can modify BIOS settings and control the special features of your computer. The Setup program uses a number of menus for making changes and turning special features on or off.

  • Page 56: System Settings / Pin Assignment

    MCX-CM220 Embedded System Appendix System Settings / Pin Assignment...

  • Page 57: Power Connector (Cn1)

    MCX-CM220 Embedded System 4.1 Power Connector (CN1) Table A.1 : Power Connector Pin Assignments Signal Description Power IN V+ 10 ~ 36 VDC Power IN V-(GND)

  • Page 58: Lan : Ethernet Connector (Cn4)

    MCX-CM220 Embedded System 4.2 LAN : Ethernet Connector (CN4) Table A. 1 : Power Connector Pin Assignments RJ45 Pin Signal Description In BASE-T: Media Dependent Interface[0]: ◼ ◼ 2500BASE-T: In MDI configuration, MDI[0]+/- corresponds MDI0+ to BI_DA+/- and in MDI-X configuration MDI[0]+/- corresponds to BI_DB+/-.

  • Page 59: Usb Connector (Cn5, Cn6)

    MCX-CM220 Embedded System 4.3 USB Connector (CN5, CN6) 4.3.1 USB 2.0 Connector Table A.3: Connector Pin Assignments Signal Name Description VBUS Power USB 2.0 differential pair Ground for power return 4.3.2 USB 3.0 Connector Table A.4: USB 3.0 Connector Pin Assignments...

  • Page 60: Display Connector (Cn2, Cn3)

    MCX-CM220 Embedded System 4.4 Display Connector (CN2, CN3) Table A.5: DisplayPort Adaptor Cable Pin Assignments Signal Name ML Lane 0 (p) ML Lane 0 (n) ML Lane 1 (p) ML Lane 1 (n) ML Lane 2 (p) ML Lane 2 (2)

  • Page 61: Connector (Cn15)

    MCX-CM220 Embedded System 4.5 M.2 Connector (CN15) Table A.6: M.2 B Key Connector Pin Assignments Signal Name Signal Name M2_SATA1_DET +V3.3_M2 +V3.3_M2 M2_LTE_PWR_OFF# M2_LTE_USB_DP M2_LTE_W1_DISABLE_N M2_LTE_USB_DN +V3.3_M2 Mechanical notch B Mechanical notch B Mechanical notch B Mechanical notch B Mechanical notch B...
  • Page 62 MCX-CM220 Embedded System M2_SIM1_DET LTE_RST#_P67 +V3.3_M2 +V3.3_M2 +V3.3_M2...

  • Page 63: Mpcle Connector (Mini1)

    MCX-CM220 Embedded System 4.6 mPCle Connector (MINI1) Table A.7: mPCIe Connector Pin Assignments Signal Name Signal Name PCIE_WAKE#_3.3 +V3.3_MINI +V1.5 +V3.3 CLK_PCIE_mPCIe1- CLK_PCIE_mPCIe1+ WIFI_DISABLE# MINI_PLTRST# PCIE_mPCIe_RX4- +V3.3_MINI PCIE_mPCIe_RX4+ +V1.5 PCIE_TX2-_Z PCIE_TX2+Z USB_Z_P0- USB_Z_P0+ +V3.3_MINI +V3.3_MINI MPCIE_PWRSEL +V1.5 +V3.3_MINI...

  • Page 64: Com Port Rs232/422/485 Settings

    MCX-CM220 Embedded System 4.7 COM Port RS232/422/485 Settings The default setting for the COM port is RS-232. This can be changed to RS-422 or RS-485 modes and can be configured by adjusting the switch on the motherboard. 4.7.1 COM1/COM2 RS232/422/485 Setting (SW1)
  • Page 65 MCX-CM220 Embedded System Bit 6 ON RS232 Mode Bit 1,2,3,4,5,7,8,9,10 OFF Bit 7,9,10 ON RS485 COM2 Mode Bit 1,2,3,4,5,7,8 OFF Bit 1,2,4,5 ON RS422 Mode Bit 1,2,3,4,5,8 OFF Bit 1 ON RS232 Mode Bit 2,3,4,5,6,7,8,9,10 OFF Bit 2,4,5 ON RS485...

  • Page 66: Com Port Rs422/485 Termination Resistor Settings

    MCX-CM220 Embedded System 4.7.3 COM Port RS422/485 Termination Resistor Settings Termination Resistor Setting This switch is used to select Termination Resistor (120 ohm) for long distance Description transmission or device matching. Default Bit3 off & Bit8 off COM1 Bit3 on...

  • Page 67: Bios Update Setting

    MCX-CM220 Embedded System 4.8 BIOS Update Setting Use SW4 to set BIOS1/2 update selection, BIOS1 (Default), BIOS2 (PCIe x4) for Factory Engineering staff use. BIOS1: Configure to Setting 1 (Default) BIOS2: Configure to Setting 3...

  • Page 68: At/Atx Setting (Sw8)

    MCX-CM220 Embedded System 4.9 AT/ATX Setting (SW8) SW8 can be used for the AT/ATX setting. The default setting is AT mode. See the following table for switch configuration. SW8 Default Description Instruction AT Mode (Default) Bit 1 off ATX Mode...

  • Page 69: Riser Connector (Cn12)

    MCX-CM220 Embedded System 4.10 Riser Connector (CN12) Table A.8: Expansion Board to Board Connector Pin Assignments Signal Name Signal Name DCIN DCIN DCIN DCIN SMB_CLK SMB_DAT USB+ USB- PCIeX4_EN CLK+ CLK- RX0+ RX0- TX0+ TX0- SLP_S3 RX1+ RX1- TX1+ TX1-...

  • Page 70: Tpm 2.0 Bios Setting

    MCX-CM220 systems support TPM2.0 functionality. This can be enabled or disabled in the BIOS menu by following the instructions provided below: 1. Power on the MCX-CM220 system and press “Delete” to enter the BIOS configuration menu. 2. On the “Advanced” tab, select “Trusted Computing”.

  • Page 71: Cpu Turbo Mode Bios Setting

    MCX-CM220 Embedded System 4.12 CPU Turbo Mode BIOS Setting The MCX-CM220 system supports CPU Turbo mode. This can be enabled or disabled in the BIOS menu through the following instructions: 1. Power on the MCX-CM220 system and press “Delete” to enter the BIOS configuration menu.
  • Page 72 MCX-CM220 Embedded System 4. Choose “Enable/Disable” to enable or disable the CPU Turbo mode (The default setting is to disable this function).

  • Page 73: Tdp Power Consumption Bios Settings

    The MCX-CM220 system supports Power Management Control for TDP switching. This can be enabled or disabled in the BIOS menu by following these instructions: 1. Power on the MCX-CM220 system and press “Delete” to enter the BIOS configuration mode. 2. On the “Advanced” tab, select the “Power & Performance”.
  • Page 74 MCX-CM220 Embedded System 4. Then select the “Config TDP Configurations”. 5. From the “TDP Boot Mode” options, choose “UP” for standard spec usage. (“Nominal” →28 W, “UP”→15 W, “Down”→12 W) Note! System will perform a short reboot every time (Power LED will turn orange for a short while) with the default TDP setting due to a CPU feature.

  • Page 75: Storage Raid Configuration (Vmd Setup)

    Customers can enable RAID with 2 x SATA storage or 2 x NVMe storage. SATA RAID: M.2 B-Key & 2.5” HDD/SSD (MCX-CM220 base unit + MCX-CM220-IS2EA) PCIe RAID: M.2 M-Key & PCIe x4 slot (MCX-CM220 base unit + MCX-CM220-P11EA) 1. Go to Chipset→VMD Setup menu.
  • Page 76 MCX-CM220 Embedded System 3. The system will detect the storage type (SATA/NVMe) and the RAID option will automatically pop up and the corresponding storage device will be installed. SATA RAID PCIe RAID (NVMe)

  • Page 77: Dynamic Range Temperatures Statement

    MCX-CM220 Embedded System 4.15 Dynamic Range Temperatures Statement Thermal Management of the 11th Gen Intel® Core™ Processor External Design Specification: DTR is the range of temperature starting from boot (TBOOT) and transitioning to Cold-to-Hot (TBOOT + DTR) and/or Hot-to-Cold (TBOOT - DTR). A temperature outside the DTR range requires a reboot but is not enforced by the hardware.
