"Petscan RT 250"

Display OLED

128×64 pixels

In/out button (1)

Battery charge level

Led blue :Bluetooth activated

Led red : charging battery

Led green : battery charged

OK (enter or validate)

Mini USB and reset

Scroll up

Scroll down

button

Battery and

communication

Table of Contents

Need help?

Do you have a question about the Petscan RT 250 and is the answer not in the manual?

Questions and answers

Summary of Contents for SWISS PLUS Petscan RT 250

Page 1: Characteristics Of The Rt 250Bt

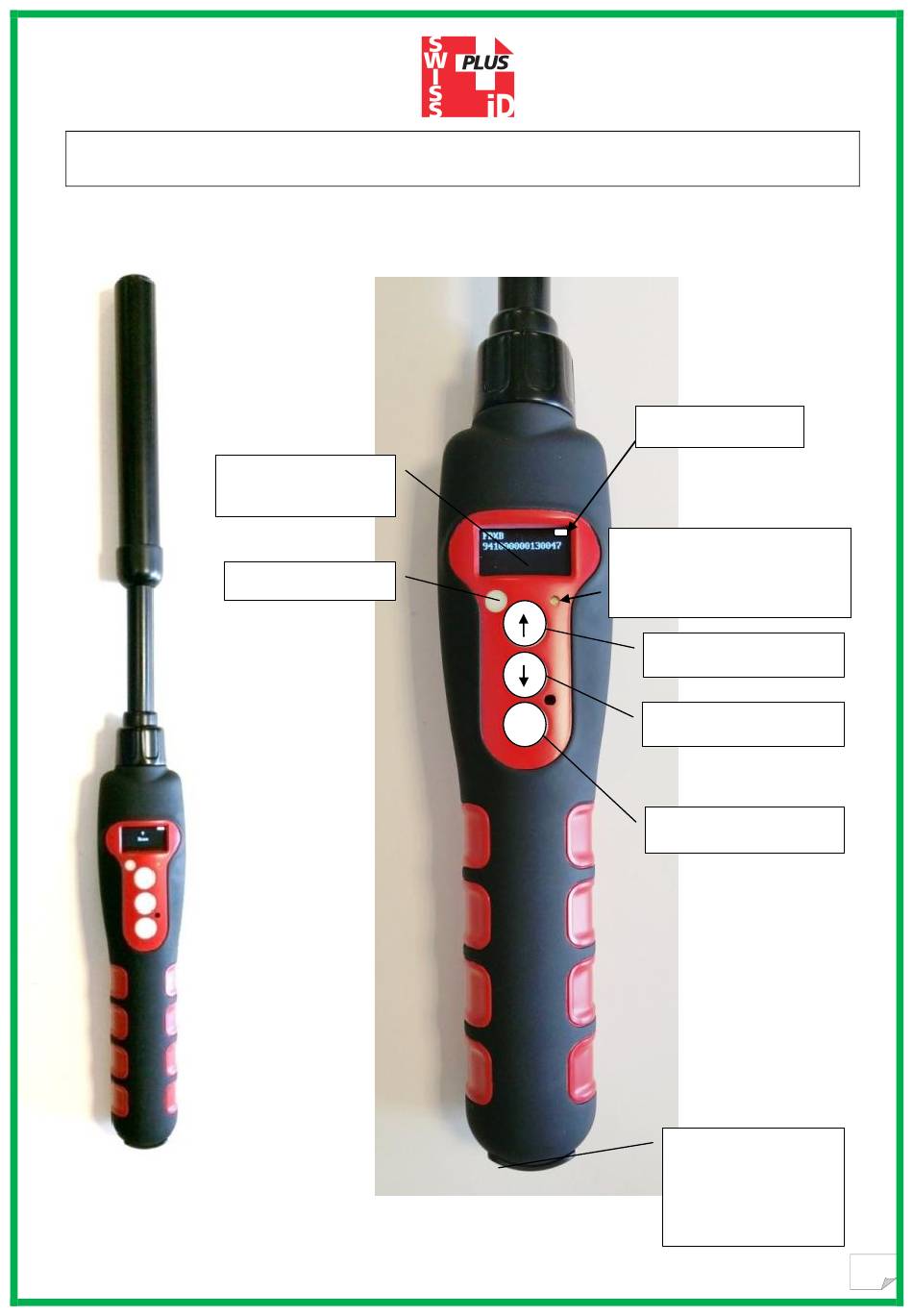

"Petscan RT 250" Battery charge level Display OLED 128×64 pixels Led blue :Bluetooth activated Led red : charging battery In/out button (1) Led green : battery charged Scroll up Scroll down OK (enter or validate) Mini USB and reset button...
Page 2 Reader Characteristics Frequency 134.2kHz read and write Protocol ISO11784/5 FDX-A, FDX-B, EM4102, HDX Reading range 14 /15cm（12mm×2mm, glasstag FDX-B) 9/11cm (12mm x 2mm glasstag FDX-A) 28/30cm ear tag FDX-B (depends of the provider) 128×64，black & white，OLED Display Button 4 buttons Indication Battery charge level, Bluetooth , Buzzer USB port...
Page 3: Table Of Contents
Table of contents Characteristics of the RT 250BT………………………… pages 1/3 Changing the choice of language……………………………… page 4 Reading a chip « SCAN »……………………………………… page 5 Enable and disable Bluetooth………………………………… pages 6/7 The memory of the RT 250BT………………………………… .page 9 - enable the memory……………………………………… .page 10 - disable the memory ……………………………………….page 11 - erase the memory …………………………………………page 12 Datas transmissions with a PC…………………………………...
Page 4: Changing The Choice Of Language
Bluetooth RT 250 reader All readers are delivered with integrated Bluetooth technology. The Bluetooth function consumes energy. It is therefore recommended to activate this function only for the time necessary for its use. To stop Bluetooth communication, simply select the “Bluetooth” menu and disable the function. Communication via Bluetooth is limited to around ten metres and depends on the environment of your PC.
Page 5 Synoptics of menu “Language” Scan Memory Language English English OK 5 secondes Français Français OK 5 seconds Español Español OK 5 seconds Italiano Italiano OK 5 seconds Portugues Portugues OK 5 seconds Deutsch Deutsch OK 5 seconds Polish Polish OK 5 seconds...
Page 6: Enable And Disable Bluetooth
Synoptic menu « Scan » Button In/Out Scan Reading 20 seconds max. FDXB+ No transponder 939 2784879521125 found! After 25 seconds After 60 seconds Charging indicator light...
Page 7 Synoptics menu « Bluetooth » Enable Bluetooth Bluetooth Enable Button IN/OUT Bluetooth Scan Bluetooth indicator light Charging indicator light...
Page 8 Synoptics menu “Bluetooth” Disable Bluetooth Scan Bluetooth Disable Button IN/OUT Bluetooth Scan...
Page 9: The Memory Of The Rt 250Bt
Using the RT 250BT Memory The RT 250BTBT reader has a memory enabling it to store 800 identifiers (tag numbers). This function must be activated by the user if he wishes to use it. Storage of numbers read by the RT 250BTBT reader The RT 250BTBT allows the user to store the numbers of the tags read in order to transfer them subsequently to a PC using the USB cable included with the reader or with Bluetooth.
Page 10: Enable The Memory
Synoptics menu « Memory 1 » Enable the Memory Scan Enable Memory Scan Press twice Button IN/OUT Bluetooth enabled Statement of the battery...
Page 11: Disable The Memory
Synoptics menu « Memory 2 » Disable the Memory No chip registered Scan Disable Memory Press twice Scan Button IN/OUT...
Page 12: Erase The Memory
Synoptics menu « Memory 3 » Disable the Memory 15 chips numbers registered in the memory Sending Press “OK” ***** to erase Press “OK” to confirm erase If you don’t press « OK » After 8 seconds M:15 Scan Send Erasing ****** M:15...
Page 13: Datas Transmissions With A Pc
Communication between RT 250BTBT and a PC To transfer the contents of the memory you must connect the reader to a PC via the USB cable. You must then select the “Memory” menu and follow the instructions given on the display (see Block Diagram: “Memory3”).
Page 14 Description of the frame transmitted each time a transponder is read The PetScan transmits the following frame to the PC after each valid reading : Octet at the start of Type of 8 Separation CRC-CCITT-control Carriage character character (or word, 16 ASCII format Return frame : ″U″...
Page 15 /*=======================================================================*/ /* Function that calculates CRC-CCITT 16 bits /* INPUT: unsigned char *inbuffer : 8 bits input vector over which CRC checksum is calculated must termined by 0x00 /* OUTPUT: unsigned int: 16 bits return of crc_ccitt checksum /*=======================================================================*/ /* OVERVIEW: Width = 16 bits Truncated polynomial = 0x1021 Initial value = 0xFFFF...
Page 16 return (crc_checksum);...
Page 17 How to know what USB port the RT 250BTBT is connected to. (Windows XP) When you connect a peripheral to a USB port on a PC, the PC automatically assigns it a port number. The peripheral is often automatically recognised by the application software, thus it is not necessary to configure it. This is the case with printers, scanners, etc.
Page 18 Then select « Device » Click! Then Select « Device Manager » Click! Then select « Ports (com et LPT) » Click!
Page 19 The number of the Com port is shown. Number of the Com Port connected to RT 250BT...
Page 20 How to know what USB port the RT 250BTBT is connected to. (Windows 7/8) Select as shown below. Click ! Then select « System » Click!
Page 21 Then select « Device Manager » Click! Then select « Port COM et LPT» Click! The number of the Com port is shown. Com3 is the number of Port connected to the RT250 The screens may be a little bit different. It depends of the Windows version.
Page 22: Realtrace Terminal
RealTrace Terminal This software is a tool supplied free of charge to all users of the RFID Realtrace standard (with USB cable) or Bluetooth reader. You can download this software following this link : http://www.swissplusid.com/downloads/RealtraceTerminal.exe You will find that once the communication has been established between a PC and the RealTrace reader both appliances which were previously paired up remain connected providing that they are separated by no more than 10 meters.
Page 23 Using the software “Realtrace Terminal” Menu Options Choose your language. You can choose between French, English, Spanish, and Chinese. Select the data you want to appear: if you select "All data" it will show the type of chip (FDXB, HDX, FDXA) followed by the ISO "smart"...
Page 24 Menu Realtrace Terminal Language Selection Keyboard Type Communication Port Selection...
Page 25 Linking an application Selecting application after the 5-second delay Application open within 5 seconds: Excel...
Page 26 Connect! Simple view: only ISO number...
Page 27 Showing all data.
Page 28: Customization Of The Rt 250Bt : Displaying And Time Out
Display message on reader startup! Setting the reader power timeout! Through its hardware design, the RT 250BTBT reader was intended to be easier to update, allowing distributors and users to benefit immediately from upgrades that could better respond to market demands.
Page 29 3/ Start the reader and open the program on the PC For example, you can use this date as the validity of the start of the guarantee period 4 / Enter the fields on the screen and confirm (Write). The communication port is configured automatically. The new settings will be implemented upon the next launch of the RT 250BT reader.
Page 30 System « WOOSIT » Writing the animal owner’s telephone number(s) in the ISO tag Our wish to constantly innovate and improve our products has led us to offer vets the option of personalising the tag, if they wish, before implanting it in the animal. The main technological advance offered by this RT 250BTBT reader is that it will allow reading and display of data which can be entered by the vet in the majority of the “tags”...
Page 31: Realtrace Phone
RealTrace-Phone Version 1.03 of 14 October 2015 This software is intended for distributors and veterinarians. It has been developed to allow the reading and writing of data on the "chips" injected into animals, in accordance with ISO Standard 11784/85 and 14223. The data to write, in this case one or two telephone numbers, is saved into memory blocks not used by the 'chip', the ISO identification number (15 digits) having been written and locked by the manufacturer.
Page 32 Installing the Realtrace-Phone software http://www.swissplusid.com/downloads/Realtrace-Phone.exe The installation of the software and the readerr are done automatically on the PC. Just follow the instructions given by the messages on the screen, like the installation of a printer or a scanner. After installation an icon will appear on the PC desktop.
Page 33 Phase 3 Find communication port At the bottom of the screen to the right is a "Configuration" window, it may say "Automatic" or on opening the window "USB COM 5". This port number 5 is the one used on our PC. It could well be different on your PC.
Page 34 After two or three seconds the following screen appears: Or this one, if the "chip" already had phone numbers: Confirm by clicking OK Phase 5 - Enter one or two phone numbers using the PC Depending on what you want to do you will either need to enter the phone numbers you want to write into the chip or modify those already saved to it.
Page 35 We recommend that you enter the full number with the prefix 00, then the country code. Make sure the phone numbers entered are correct then click on the windows as required: Write phone 1 Write phone 2 Write phone 1 + 2 After two or three seconds the following screen appears: The PC has transmitted the data to be saved to the "chip"...
Page 36 The reader seeks the chip in which it should write ... Three possibilities: 1/ If the reader does not find the "chip" after 20 seconds of searching ... Search other time 2/ If the reader has found the "chip" it must write to Back to Main Menu...
Page 37: Android Mobile Phone Software For Rt250-V8Bt And V8M
We recommend that you re-read the injected chip to verify that the data has been recorded, given that if the entry has been done correctly in the "chip" RT 250BT displays the following message: Very often this happens when one or more memory blocks needed to record phone numbers are closed in the "chip"...
Page 38 Program instructions for mobile phones "Realtrace Android" for users of RFID readers Models V8M -V8BT - RT250 This program, originally developed for the V8M, is also compatible with V8BT and RT250 readers delivered after August 2016. The main function of these readers is to read the number of ISO chips implanted in animals but they each have their own specific elements to meet the different needs of users.
Page 39 How do I obtain the free V8M software? You must log in to "Play Store" and download the V8M program onto your phone before installing. A V8 icon will appear on your phone's screen after installation is completed. How much does it cost? Using the program is free since you only use the Bluetooth communication between the reader and your phone and possibly WIFI between your phone and your Box.
Page 40 In red on the top left of the screen "V8M Disconnected" and "Turn on V8M and press Connect" informs you that the V8M is not connected to the phone and that you need to turn on your reader. The V8M turns on by pressing the button on the underside of the reader for three seconds. It switches off automatically after 30 seconds if the communication with the phone is halted.
Page 41 If both devices are connected, a green button appears at the bottom of the screen. By selecting this button you activate the reader's scanning (reading) that will search for a "chip" in its environment at a distance of about 13 - 15cm (Fig 4). Be aware that you can also activate the reader by using the V8M side switch.
Page 42 Note: The information relating to the location via the phone's GPS is not immediately available when the phone starts and the Realtrace Android program is opened. You may need to wait a few minutes while the phone is located ... Comments 1 / The reader attempts to write the phone and Email to the chip several times, taking around 10 seconds.
Page 43 Case 3a: the "Chip" being read is in the the telephone's database: chip ISO number, date and time, location and the additional data (telephone database) and further data (written in the chip) that were recorded during the initial programming of the "chip". Case 3b: the "Chip"...
Page 44 The "History" function Viewing the phone database. If you have an animal, you can just read his "chip" and if it was registered the listing will appear on the screen. You can also search for either the name or the "Chip" number if known. After having found the "chip", select the number displayed in blue and the card will appear on the screen ...
Page 45 Using the "Realtrace Android" software with V8 BT The "Realtrace Android" application can be used with the VBT after activating the reader's Bluetooth function but only with the model produced after September 2016. However the V8BT is delivered with the "Time Out" function (2min) activated for power saving reasons it is advisable to change the "Time Out"...
Page 46 The features described concerning V8M are all compatible with the RT250 but the writing distance of additional data to the chips is much shorter, at approximately 4cm instead of 8 to 10cm with V8BT and V8M. In order to leave one hand free, a phone attachment accessory for the RT250 has been provided. Finally be aware that in all cases the reading of a chip can be performed by selecting the green button on the phone screen, or conventionally, by pressing the play button on the reader in use.
