Summary of Contents for Artec 3D Artec Ray II

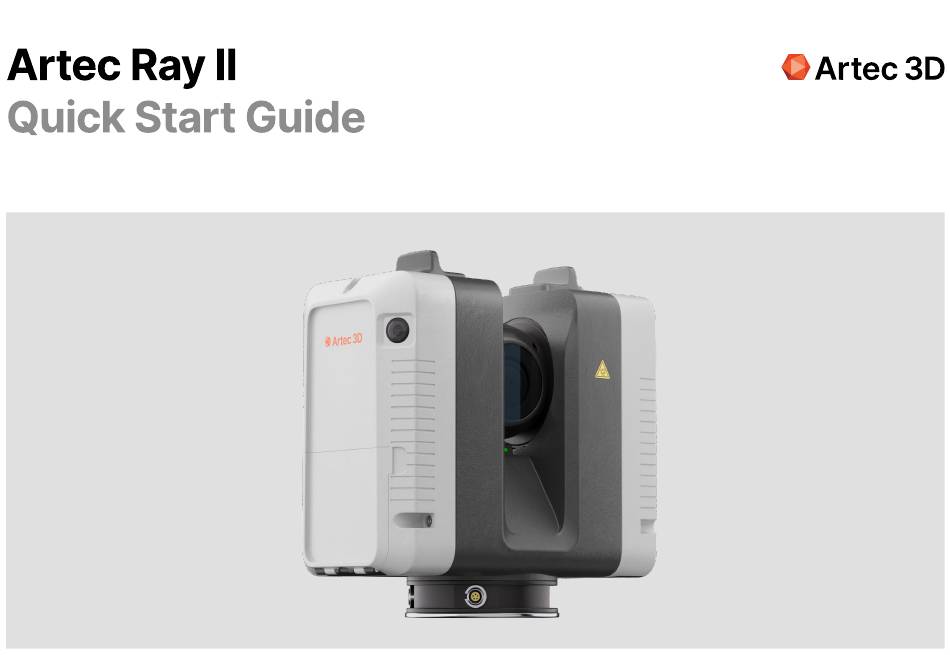

- Page 1 Artec R y II Quick St rt Guide...
- Page 2 Welcome Congratulations! You are now the proud owner of this high-accuracy, lightning-speed, and long-distance wireless 3D scanner. As you begin using your scanner, we would love to hear about your experiences with it. Whether you want to share a case study or demonstrate new ways in which you work, or if you need any guidance along the way, we are always ready to listen.
- Page 7 Important information about your scann r For the AC power supply: Warning If unit is not connected to ground, death or serious injury can occur. Pr cautionsW U To avoid electric shock power cable and power outlet must be grounded.
- Page 8 Important information about your scann r Warning El ctric shock du to us und r w t and s v r conditions If unit becomes wet, it may cause you to receive an electric shock. Pr cautions‚ ˆ If the product becomes humid, it must not be usedv ˆ...
- Page 10 Conformity to National Regulation Canada CAN ICES-003 Class B/NMB-003 Class B IC: 4608A-SPCEAN2 Japan u This device is granted pursuant to the Japanese Radio Law ( 電波法 )G u This device should not be modified (otherwise the granted designation number will become invalid).
- Page 11 Scanner Component Scanner component Antennas Rotating mirror/laser aperture HDR cameras Cameras for visual inertial system Quick release LED indicator Battery compartment Touch screen On/Off button Ventilation slots USB slot Socket for power supply, 5 pin female Ethernet socket, 8 pin female Quick release mount Ventilation slots Loudspeaker...
- Page 15 È Care and Transpor Transpor in he field When transporting the equipment in the field, always make sure that you8 either carry the product in its original container or in the backpack or carry the tripod with its legs splayed across your shoulder, keeping the attached product upright.
- Page 16 È Operati n The battery must be charged before using it for the first time Insert and rem ve the exchangeable battery...
- Page 18 © 0 4 Artec Europe Sarl Artec Europe Sarl Headquarters www.artec3d.com 4 Rue Lou Hemmer, L-1748 Senningerberg, Luxembourg 786-1074...
