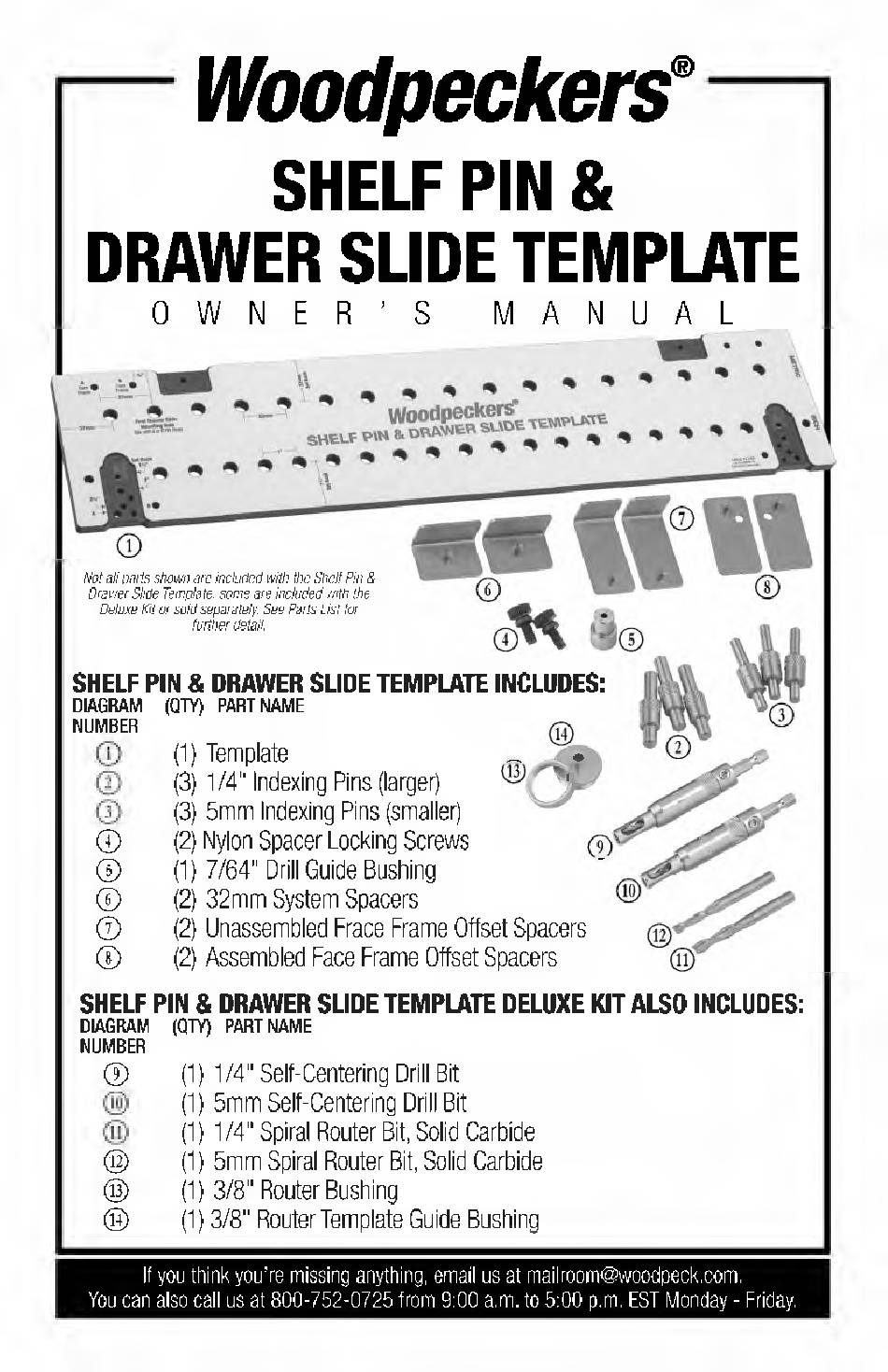

Woodpeckers SHELF-PIN-DRAWER-SLIDE-TEMPLATE-GROUP Owner's Manual

oodpeckers
HELF PIN &
DRAWER LIDE TEMPLATE
WNER ' S MANUAL
ot all parts shown are Included with the Shelf Pin &
Drawer Slide Template, some are included with the
Deluxe Kit or sold separately. See Parts List for
further detail.
If you think you're missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 5:00 p.m. EST Monday - Friday.
HELF PIN & DRAWER LIDE TEMPLATE INCLUDE :
DIAGRAM (QTY)
PART NAME
NUMBER
1
1) Template
2
3) 1/4" Indexing Pins larger )
3
3) 5mm Indexing Pins smaller)
4 2) Nylon Spacer Locking Screws
5
1) 7/64" Drill Guide Bushing
6 2) 32mm System Spacers
7
2) Unassembled Frace Frame Offset Spacers
8 2) Assembled Face Frame Offset Spacers
HELF PIN & DRAWER LIDE TEMPLATE DELUXE KIT AL O INCLUDE :
DIAGRAM
NUMBER
(QTY) PART NAME
9 1) 1/4" Self-Centering Drill Bit
10
1) 5mm Self-Centering Drill Bit
11
1) 1/4" Spiral Router Bit, Solid Carbide
12
1) 5mm Spiral Router Bit, Solid Carbide
13 1) 3/8" Router Bushing
14 1) 3/8" Router Template Guide Bushing
