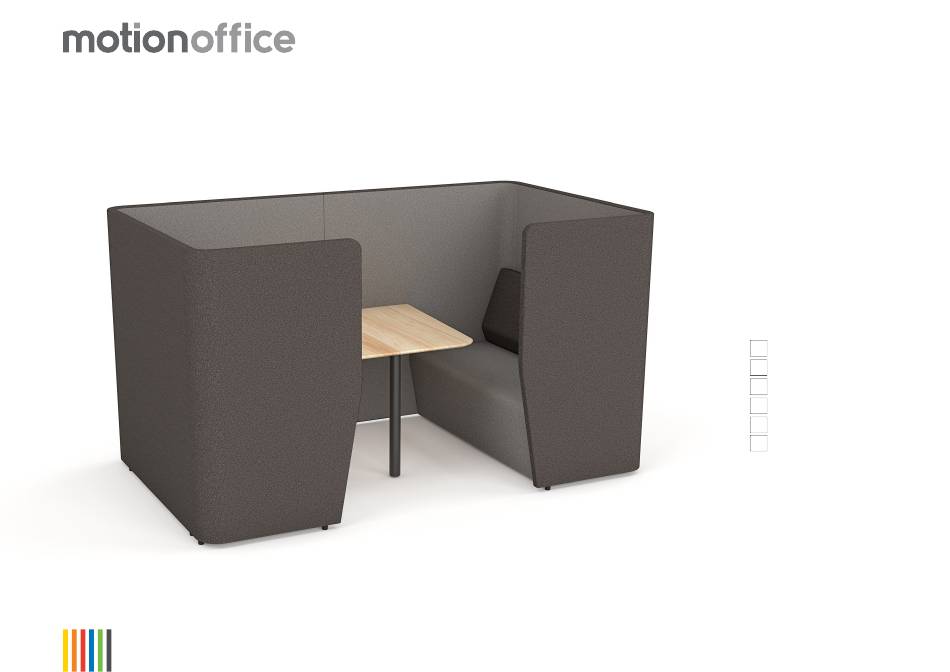

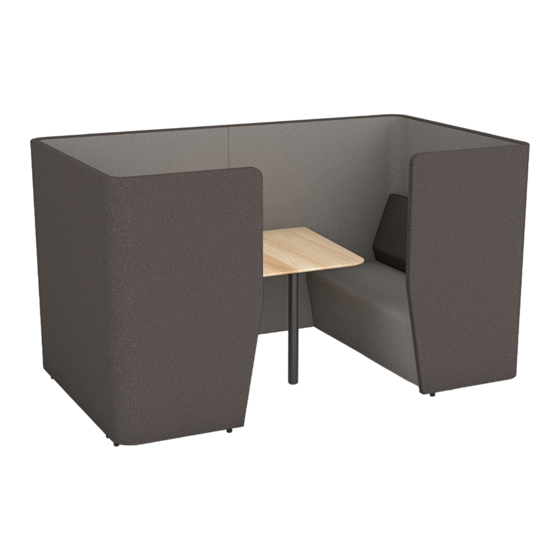

Cape Meeting
Assembly Instructions
motionoffice.com
PARTS LIST:
MSP901413
MBP1412 x 2
MCOV14
MCBASE14 x 2
MBACK14 x 2
MCMTOP
TABLE BASE
COMPONENTS LIST:
10 - Pins
2 - Worktop Brackets
3 - Worktop Bracket Screws
8 - Plates
33 - Plate Screws
7 - Wood Screws
1 - Allen Key
Advertisement
Related Manuals for MotionOffice Cape Meeting
Summary of Contents for MotionOffice Cape Meeting
- Page 1 Cape Meeting Assembly Instructions PARTS LIST: MSP901413 MBP1412 x 2 MCOV14 MCBASE14 x 2 MBACK14 x 2 MCMTOP TABLE BASE COMPONENTS LIST: 10 - Pins 2 - Worktop Brackets 3 - Worktop Bracket Screws 8 - Plates 33 - Plate Screws...
- Page 2 Cape Meeting Assembly Instructions To prevent possible scratches or damage, assemble the product on Recommended a soft surface such as a blanket, carpet or packaging. 2-person Step MBACK14 MSP901413L MSP901413R MBP1412 MBP1412 MCOV14R MCOV14L MCMTOP MCBASE14...
- Page 3 Cape Meeting Assembly Instructions Insert Pins into keyholes, slide down until top is flush. Once panels are flush, slide pin across to lock panels together. Lie the panel on their back and place seat base inside, then screw plate to panels and seat Locate the velcro strips on the backrest &...
- Page 4 Cape Meeting Assembly Instructions Join the two side panels together as step 1 & 2 above. Fix plate to the table leg, then screw the worktop to the plate using wood screws. Fix the brackets into the T-nut holes on the panels.
