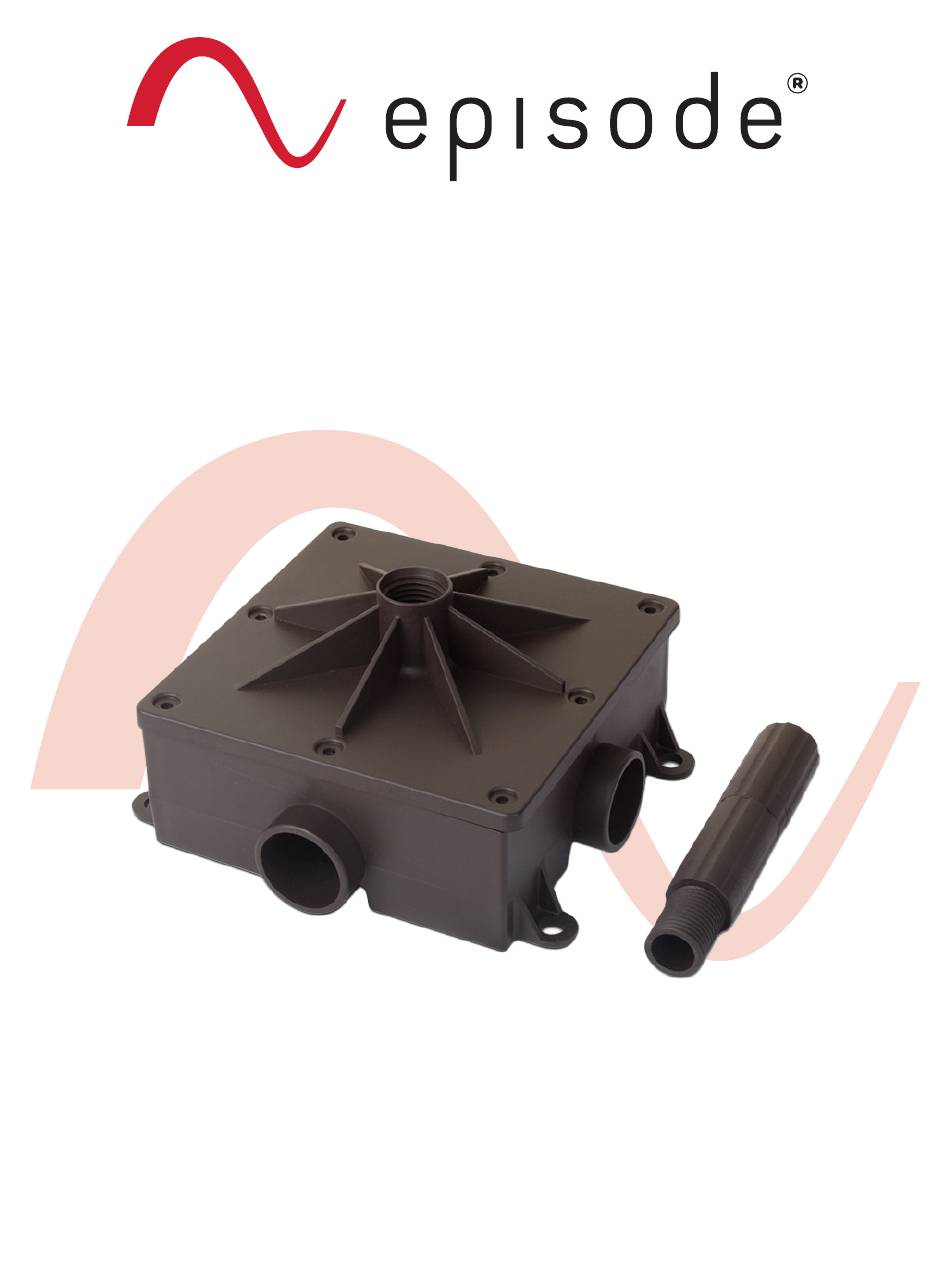

- Page 1 ES-LS-MOUNT-BOX Direct Burial Mounting Box Installation Manual...
-
Page 2: Specifications
Specifications Dimensions • H × W × D without Extension Sleeves : 78mm × 133mm × 133mm (3" × 5¼" × 5¼") • H × W × D with one Extension Sleeve : 128.8mm × 133mm × 133mm (5" × 5¼" × 5¼") •... -
Page 3: Installation
Installation The ES-LS-MOUNT-BOX for Episode® Landscape Speakers is a PVC direct-burial wiring solution that may be used with PVC electrical conduit or direct burial speaker cable. The weatherized wire nuts and optional extensions allow for mounting in nearly any outdoor location. - Page 4 2. Glue the conduit and box together using PVC cement. Cement PVC Conduit PVC Conduit 3. Route the cable through the conduit and pull at least 8 inches (200mm) of cable into the box cavity. 8"...
- Page 5 Pro Tip: Make sure that all PVC connections are securely glued. Use silicone caulk to seal any openings used for cable. Allow caulk and glue to dry completely before burying the box. Route Cables - Direct Burial Cable Drill a hole into the center of the knockout slightly larger than the cable. 2.
- Page 6 c. Seal the entrance completely with silicone. Pro Tip: Make sure that all PVC connections are securely glued. Use silicone caulk to seal any openings used for cable. Allow caulk and glue to dry completely before burying the box.
- Page 7 Install the speaker onto the box cover Use one or both of the 2" extensions to raise the speaker up to four additional inches, as needed. 2. Use silicone on the coupler threads to seal the assembly against moisture.
- Page 8 3. Use the weatherproof wire nuts included with the speaker to terminate the wiring connections. Turn the wire nuts clockwise by hand until they are tight. 4. The box may now be closed. A weatherproof gasket is attached to the cover, but for additional water intrusion protection, line the inside edge of the cover with silicone where it contacts the box, then assemble the box using the eight screws.
- Page 9 5. Stake the box down in the hole securely using the four stakes. Install all speakers and test the system before burying the box and wiring.
- Page 10 6. Adjust the speaker angle and position once all other steps are completed. Use a Phillps screwdriver to tighten the speaker once positioned correctly.
- Page 11 Dimensions 50.8mm (2") 50.8mm (2") 25.4mm (1") 53.4mm (2 1/8") 133mm (5¼") 133mm (5¼") 95.2mm (3¾") 78.8mm 142.6mm (3 1/8") (5 1/8" ) 149.9mm (5 7/8")
- Page 12 Snap One, LLC, in the United States and/or other countries. 4Store, 4Sight, Control4, Control4 My Home, SnapAV, Araknis Networks, BakPak, Binary, Dragonfly, Episode, Luma, Mockupancy, Nearus, NEEO, Optiview, OvrC, Pakedge, Sense, Strong, Strong Evolve, Strong VersaBox, SunBriteDS, SunBriteTV, Triad, Truvision, Visualint, WattBox, Wirepath, and Wirepath ONE are also registered trademarks or trademarks of Snap One, LLC.
