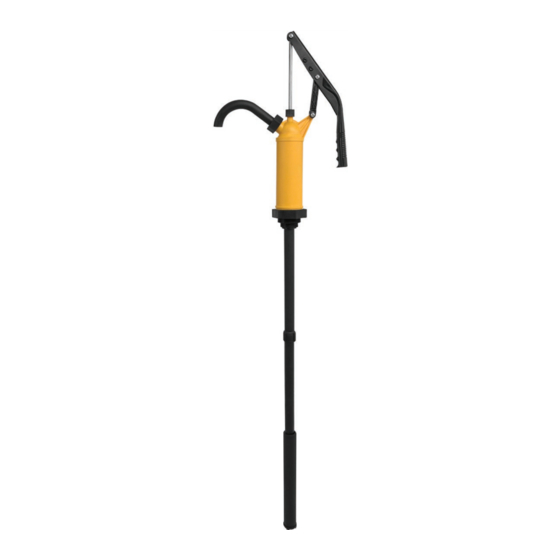

- Page 1 PLASTIC LEVER PUMP Installation Instructions DC868...
- Page 2 Alcohols, Water, Lubricants or Petroleum-based Water based TYPE OF FLUIDS liquids under noncorrosive chemicals, low 35 cst liquids up to viscosity 100 cst lubricants * Measured at pump outlet. Tested using water DESCRIPTION DC868 Plastic lever pump with variable handle setting...
-
Page 3: Safety Information
SAFETY INFORMATION Follow workshop Health & Safety rules, regulations and conditions when using the pump. • Maintain the pump in good condition and replace any damaged or worn parts. • Use genuine parts only. Aftermarket parts may cause fluid incompatibility issues and will void warranty. -
Page 4: Maintenance
• Low flow rate Setting: Assemble the handle lever (7) with hole #1 on the handle (9), this allows the pump to develop medium rate up to 270 ml (9 oz.) per stroke. This position is advised while using lubricants or liquids under 35 cst. 4. -
Page 5: Exploded View
ODED VIEW EXPLODED VIEW... -
Page 6: Part List
PART LIST REF NO. PARTS DESCRIPTION REF NO. PARTS DESCRIPTION Valve plate Pump body Valve plate Coupling nut Rod plate Outlet spout Valve nut Piston rod nut Foot valve seal Washer Base plate Piston rod seal Bung adaptor Handle lever Upper suction tube Fasteners Lower suction tube...
