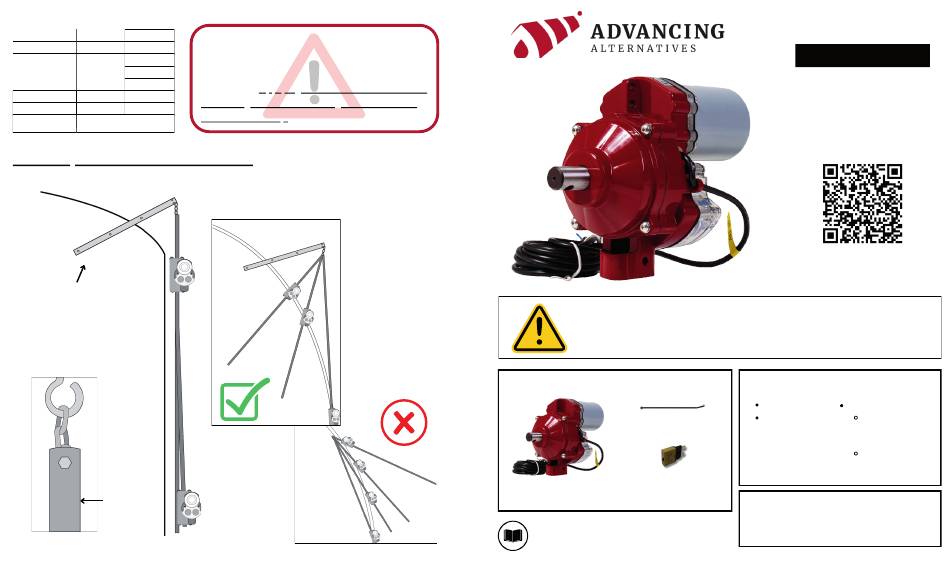

Advancing Alternatives LVM-60 Quick Start Manual

Specs
LVM60
LVM100
Voltage 24VDC 24VDC
Amp 3 4.2
Watt
72 100
Output Speed
2.7 RPM 3 RPM
Output Torque 60NM 100NM
Shaft Output Single Single or Double
Drive Shaft Diam.
??A
SCRB/1.315"/1.66"/2.375"
Compatible
Guide Pipe Installation Instructions
We recommend the guide
pipe extender to be
positioned above the top
curtain clasp (12" above is
typical).
Eye can be closed
with large vice grip.
Guide pipe
4
All electrical connections must be made by a
qualified, licensed electrician. All connections
must be made in accordance with all state and
local codes. Applying 110 VAC or 220 VAC to a
low voltage motor will damage the motor and
void the warranty.
The guide pipe extender reduces or eliminates movement
by the guide pipe away from the sidewall as the motor
and roll-bar travel the curved profile of a structure.
WARNING All electrical connections must be made by a qualified,
licensed electrician. All connections must be made in accordance with
all state and local codes.
Images not to scale.
What's Included:
Zip Ties (x4)
Breaker*

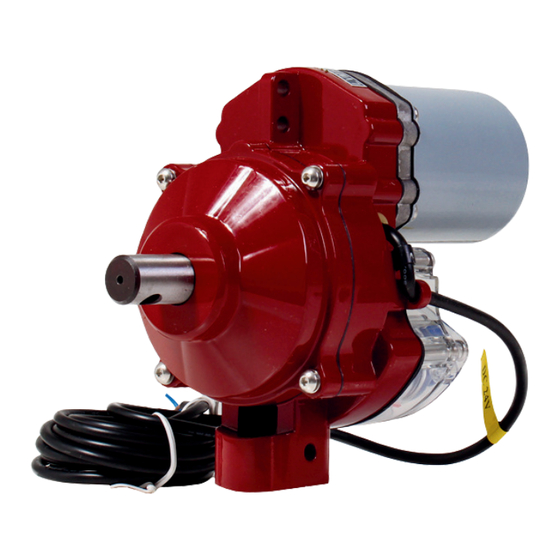

Low Voltage Motor
Images not to scale.
For detailed instructions and technical support,
visit advancingalternatives.com/knowledge-center
LVM-60/100
Low Voltage Motors
Quick Start Guide
Scan the QR Code to visit our
Knowledge Center, which features the
full instruction manual and other
resources.
Warranty Registration:
advancingalternatives.com/register
Tools & Materials Required:
Screwdriver
Motor wire
Wire crimper 14 AWG for less
than 100'
connections
12 AWG for
connections over
100'
*Breakers Required for Motors
LVM-60: 3A breaker LVM-180: 7.5A breaker
LVM-100: 5A breaker LVM-200: 10A breaker
1
