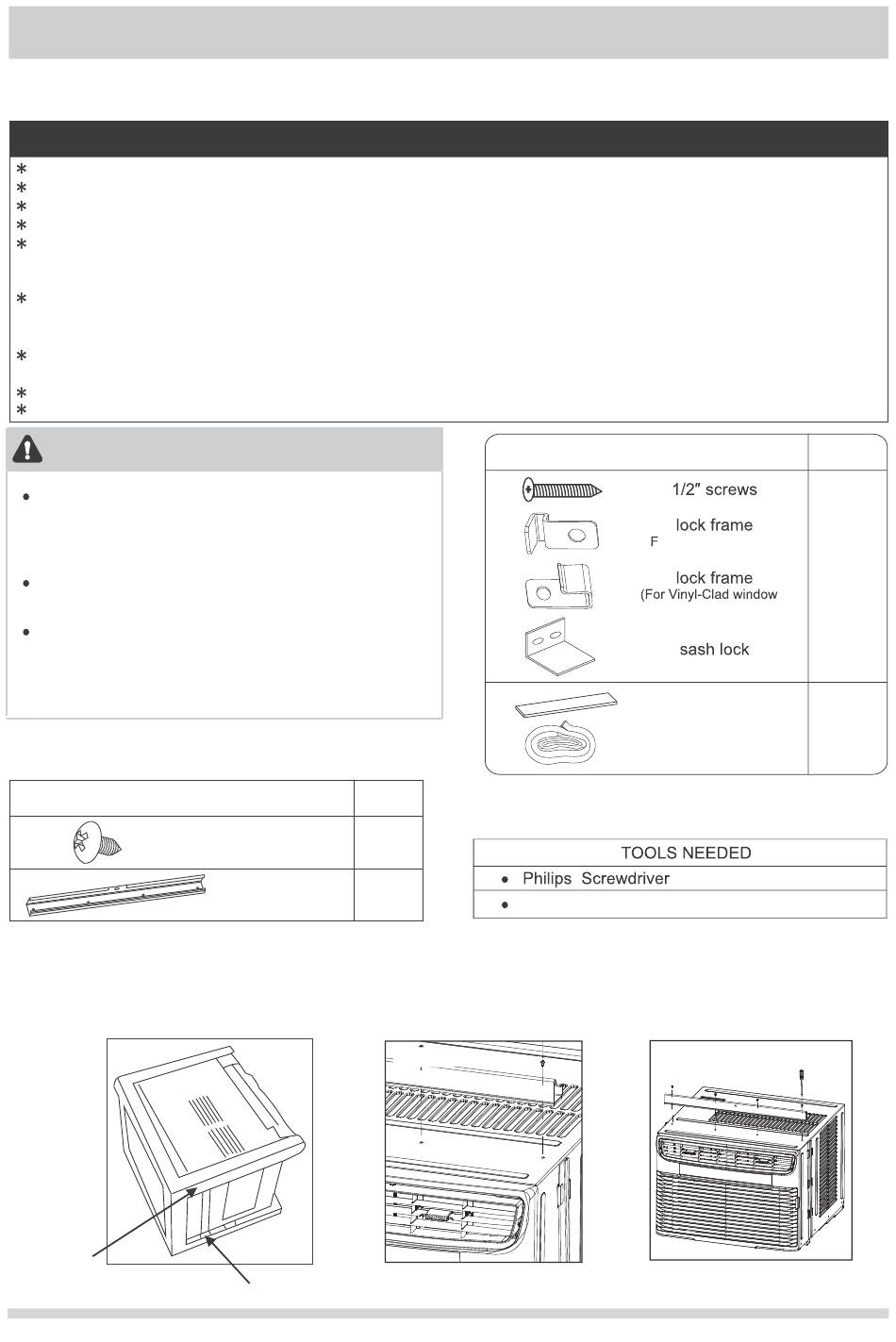

Frigidaire FHWC104WB1 Installation Instructions

MSII MSIII Window Mounting (5,000~8,000 BTU)
The unit is for window mounting only.
Carefully read the installation manual before beginning.
Follow each step as shown.
Observe all local, state, and national electrical codes and by qualified, licensed, authorized personnel only.
Pay attention to danger and safety notices.
To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may
be exposed:
Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install
the unit. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp metal fins of front and rear coils. To
prevent injury or strain, use proper lifting and carrying techniques when moving unit.
Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit overan extended
period of time.
Handle air conditioner with care.
Make sure air conditioner does not fall during installation.
NOTE:
SAVE CARTON and these INSTALLATION
INSTRUCTIONS for future reference. The carton is
the best way to store unit during winter, or when not
in use.
DO NOT USE ANY SCREWS OTHER THAN
THOSE SPECIFIED HERE.
FOR SAFETY REASONS, THE TOP RAIL MUST BE
SECURELY FASTENED WITH ALL FOUR (4)
SCREWS.
Some assembly is required. Please read these instructions
carefully.
Top Rail Hardware
Before installing, the top rail must be assembled on the unit.
A. Remove the air conditioner from the carton and place on a flat surface.
B. Remove top rail from the rear of the packaging material as shown in Fig. A
C. Align the hole in the top rail with those on the top of the unit as shown in Fig. B
D. Secure the top rail to the unit with the 3/8" Screws as shown in Fig. C
Packaging
Installation Instructions
READ BEFORE INSTALLING UNIT
INSTALLATION WARNINGS AND CAUTION
3/8" Screw
Top Rail
Fig. A
Top Rail
Qty.
4
1
Drill (If pilot holes are needed)
Fig. B Fig. B
Mounting Hardware
( or Wooden windows)
weather stripping
(10"X3/4"X1/12")
window sash seal foam
Fig. C
16120300A20671
Qty.
7
2
2
s)
1
5
1
1
