Even Embers HTR4010AS Owner's Manual

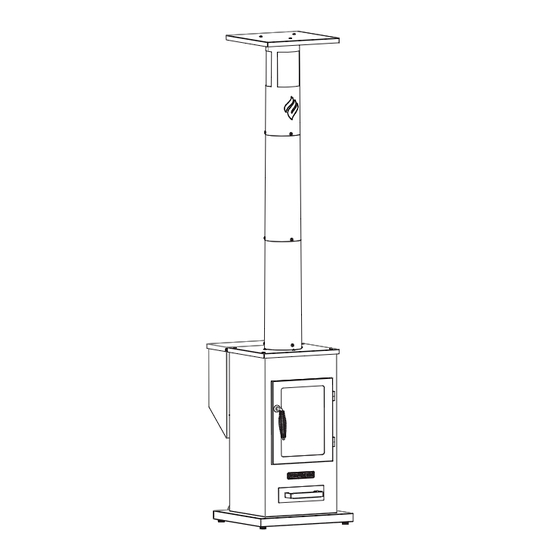

Pellet heater
Hide thumbs

Advertisement

Table of Contents

WARNING: FOR OUTDOOR USE ONLY
ASSEMBLY AND OPERATING IN STRUC TIONS
NOTICE TO
INSTALLER:
LEAVE THESE
INSTRUCTIONS
WITH THE
HEATER OWNER
FOR FUTURE
REFERENCE .
PELLET HEATER
OWNER'S MANUAL
Model HTR4010AS
PLEASE READ THIS ENTIRE MANUAL BEFORE
INSTALLATION AND USE OF THIS PELLET FUEL-
BURNING APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY
DAMAGE, BODILY INJURY OR EVEN DEATH. CONTACT
LOCAL BUILDING OR FIRE OFFICIALS ABOUT
RESTRICTIONS AND INSTALLATION INSPECTION
REQUIREMENTS IN YOUR AREA. SAVE THESE
SAVE THIS MANUAL FOR FUTURE REFERENCE
WARNING
INSTRUCTIONS.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTR4010AS and is the answer not in the manual?

Questions and answers

Related Manuals for Even Embers HTR4010AS

Summary of Contents for Even Embers HTR4010AS

  • Page 1 PELLET HEATER OWNER’S MANUAL WARNING: FOR OUTDOOR USE ONLY SAVE THIS MANUAL FOR FUTURE REFERENCE ASSEMBLY AND OPERATING IN STRUC TIONS Model HTR4010AS WARNING PLEASE READ THIS ENTIRE MANUAL BEFORE NOTICE TO INSTALLATION AND USE OF THIS PELLET FUEL- INSTALLER: BURNING APPLIANCE.
  • Page 2 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR HEATER AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR HEATER. WHEN YOU SEE THE SAFETY ALERT SYMBOL, PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR HEATER.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS: General Warnings ..........3-4 Operating the Heater .

  • Page 4: General Warnings

    GENERAL WARNINGS: WARNING When using, basic safety precautions should always be followed including the following: • Always place heater on a level non-combustible surface. • Operate only per manufacturers instructions. • Keep all combustible materials at least 36 inches (66 cm) away from the heater at all times. Do not use this heater under any overhang or near any combustible structures.

  • Page 5: Operating The Heater

    Follow these guidelines to prevent this colorless,odorless gas from poisoning you, your family or others. • Know the symptoms of carbon monoxide poisoning; headache, dizziness, weakness, nausea, vomiting, sleepiness and confusion. Carbon monoxide reduces the blood’s ability to carry oxygen. Low blood oxygen levels can result in loss of consciousness and death. •...
  • Page 6 LIGHTING THE HEATER: Initial Lighting Instructions (To be used on initial fi ring) Push shut-off lever (inside the hopper) down, turn heat adjustment lever to low before fi lling hopper with pellets. Fill the hopper around ½ full. This one-time initial fi ring needs to be done to cure the paint on the unit.

  • Page 7: Proper Care And Maintenance

    PROPER CARE & MAINTENANCE: • Remove wood pellets from hopper if heater will not be used for a long period of time. Wood pellets can become soggy due to moisture/humidity and clog up the fi repot and pellet chute. • Disposal of ashes –...

  • Page 8: Assembly Instructions

    BEFORE ASSEMBLING AND OPERATING YOUR EVEN EMBERS PELLET HEATER. FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 855-735-9922. (Proof of purchase will be required.) The following tools are required to assemble your Even Embers ® Pellet Heater: • Phillips Screwdriver PARTS LIST: 1 Firepot...
  • Page 9 FOR COVERS, ACCESSORIES AND OTHER PRODUCTS, PLEASE VISIT US ONLINE AT: www.evenembers.com Inspect contents of the box to ensure all parts are included and undamaged. Extra screws are included in a small bag with the owners manual.
  • Page 10 Place heater body upside down as illustrated. Attach heater base using twelve M6 x 12 mm bolts. Heater Body Install door latch using pre-installed bezel, lock washer, latch plate and M6 lock nut.
  • Page 11 Install chimney collar using four M6 x 12 mm bolts and four M6 nuts. Bend tabs on upper chimney outward 90˚. Install upper chimney to chimney cap and fasten in place with three M6 x 12 mm bolts and M6 nuts.
  • Page 12 Install lower chimney to chimney collar and fasten in place with three M4 x 10 mm bolts. Install upper chimney and middle chimney to lower chimney and fasten in place with six M4 x 10 mm bolts.
  • Page 13 Install heat adjustment lever and lock into place with cotter pin. Install spring coil handle onto heat adjustment lever. Set fi repot in place. Center heat baffle into holes in heater base around fi repot.
  • Page 14 Install ash clean-out grate handle through back of heater body by screwing it into clean-out grate. Install hopper handle to back of hopper using two M6 x 12 mm bolts and M6 nuts.
  • Page 15 Install ash tray handle using two M6 x 12 mm bolts and M6 nuts. Insert ash tray into heater body. Hang rake on back of hopper.
  • Page 16 LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ® ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE FAILURE OF THE EVEN EMBERS PELLET FUEL HEATER TO COMPLY WITH THIS WARRANTY OR ANY IMPLIED WARRANTY IS EXCLUDED. CUSTOMER ACKNOWLEDGES THAT THE PURCHASE PRICE CHARGED IS BASED UPON THE LIMITATIONS CONTAINED IN THE WARRANTY SET OUT ABOVE.
