R

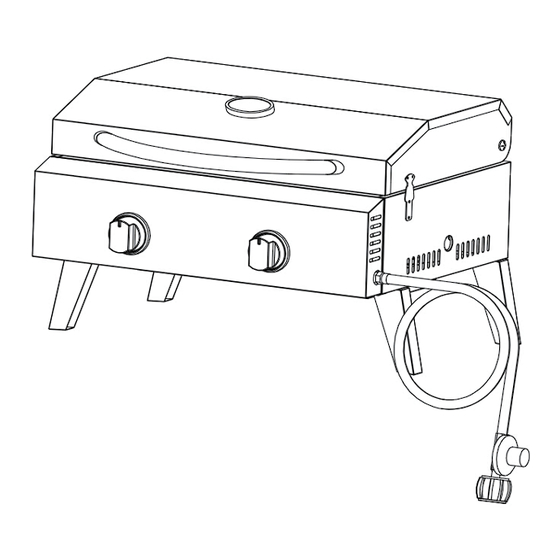

2 BURNER STAINLESS STEEL TABLE TOP
Gas Grill Manual for Installation, Care and Maintenance
Model:
PGASGR
Warning:
For outdoors use only.
This instruction manual contains important information necessary
for the proper assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling
and using the appliance.
Follow all warning and instructions when suing the appliance.
Do not leave the appliance unattended. Keep young children and
pets away.
Do not move the device during use.
Not intended to be installed in or on boats and should never be
used as a heater.
Close the valve of the gas cylinder after use.
The cover shall not be used while the unit is in operation and shall
not be installed until the unit has cooled.
Keep this manual for future reference.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 833-926-2323
E-mail:
hello@aleko.com
1
Advertisement
Table of Contents
Summary of Contents for Aleko PGASGR
- Page 1 2 BURNER STAINLESS STEEL TABLE TOP Gas Grill Manual for Installation, Care and Maintenance Model: PGASGR Warning: For outdoors use only. This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. Read and follow all warnings and instructions before assembling and using the appliance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Care and Maintenance..…..…………………………………………..…………..…..3 Assembly Instructions ..…………………………...…………………...……….…....6 Lighting Instructions ....................Exploded View Diagram and Parts List................13 Warranty............……………………..…….… ....14 WARNING DANGER If you smell gas: 1. Do not store or use gasoline or other flammable liquids or 1. -
Page 3: Care And Maintenance
CARE MAINTENANCE Precautions WHEN USING THE GRILL, DO NOT TOUCH THE GRILL RACK, BURNER GRATE OR IMMEDIATE SURROUNDINGS WHICH BECOME EXTREMLY HOT DURING USE AND CAN CAUSE BURNS. AVOID ALLOWING EXCESS GREASE TO COLLECT IN THE GREASE TRAY AT THE BOTTOM OF THE GRILL'S FIREBOX. - Page 4 PROPER PLACEMENT AND CLEARANCE OF GRILL Never use your gas grill in a garage, porch, shed, breezeway or any other enclosed area. Your gas grill is to be used outdoors only. Do Not install this unit into combustible enclosures. Minimum clearance from sides and back of unit to combustible construction, 24 inches (61cm) from both sides and 24 inches (61cm) from the back.
- Page 5 WARNING 1. Always operate the grill on a tabletop, no higher than 32 inches(81cm). 2. Place the propane tank on the ground immediately Adjacent to the tabletop, no further than 24 inches(61cm) from the grill. 3. Failure to follow these instructions could cause the propane tank to overheat and vent propane which could ignite causing serious personal juries or property damage and/or a tripping hazard over the gas hose or propane tank, pulling the grill off the tabletop causing serious personal injuries or property damage.
-
Page 6: Assembly Instructions
1.Surround the supporter with the leg, combine the 1/4*35mm screw and the flat washer, and insert them into the hole of the leg and supporter to connect. 2.Use the nut to fix them. 3.Unfold the legs until hearing a "click". - Page 7 Fig2: Installing the grease tray under the firebox as below showing. Fig3: Putting the flame tamer on the burner then put the grid on the firebox as below showing:...
- Page 8 Tank Installation If the outdoor cooking appliance is not in use, the gas must be turned “OFF” at the Liquid Propane Cylinder. If the outdoor cooking gas appliance is not in use, the gas must be turned off at the supply cylinders. Cylinder Regulator Storage of an outdoor cooking gas appliance...
- Page 9 LEAK TESTING GENERAL Only those parts recommended manufacturer should be used on the grill. Although all gas connections on the grill are Substitution will void the warranty. Do not use the leak tested at the factory prior to shipment, a grill until all connections have been checked and complete gas tightness check must be do not leak.
- Page 10 STATEMENT 1. The LP gas supply cylinder(s) to be used must be: a) Constructed and marked in accordance with the Specifications for LP-Gas Cylinders of the U.S.Department of Transportation (D.O.T) or the National Standard of Canada, CAN/CSA-B339, Cylinders,Spheres and Tubes for Transportation of Dangerous Goods; and Commission, as applicable; b) Provided with a listed overfilling prevention device.
-
Page 11: Lighting Instructions
Checking and cleaning burner/venturi tubes for insects and insect nests.A clogged tube can lead to a fire beneath the grill. LIGHTING INSTRUCTIONS Before Lighting Inspect the gas supply hose prior to turning on the gas. If there is evidence of cuts, wear, or abrasion, it must be replaced prior to use. - Page 12 If you have already attempted to light the main burner with the igniter, allow 5 minutes for any accumulated gas to dissipate. Insert a match into the lighting rod. Ignite the match and insert through the cooking grids to the burner. If the burner does not light within seconds turn the knob to the “OFF”...
-
Page 13: Exploded View Diagram And Parts List
Part Description QTY. Part Description QTY. Main Lid Hinge Bolt Knob Lid“R”Pin Leg Plug Main Lid Foot Stand Leg ,Right Lid Rubber Pad Grease Tray Temperature gauge Lighting Rod Lid Handle Insulating Spacer Burner Supporter Handle Fixed Plate for Flame Tamer Foot Stand Leg ,Left Main Burner Main Firebox... -
Page 14: Warranty
ONE-YEAR LIMITED WARRANTY warrants your gas grill to be free from manufacturer's defects in workmanship or ALEKO. material under normal operating conditions for one (1) year from the original date of purchase. This warranty only applies if the item is purchased for use in Canada and USA is available to the original purchaser only.
