T
he LEA D-RLC-10K is an analog potentiometer for remote
volume control of the LEA
Amplifier family.
NOTE
The D-RLC-10K only works with
Amplifiers that have 'GPIO' functionality. If the remote on/off
connector on the rear of the unit is labeled 'GPIO' then this
potentiometer will work. If it is labeled 'I/O' it will not work.
The D-RLC-10K can be used for individual channel volume
control or can be wired to control multiple amplifier channels.

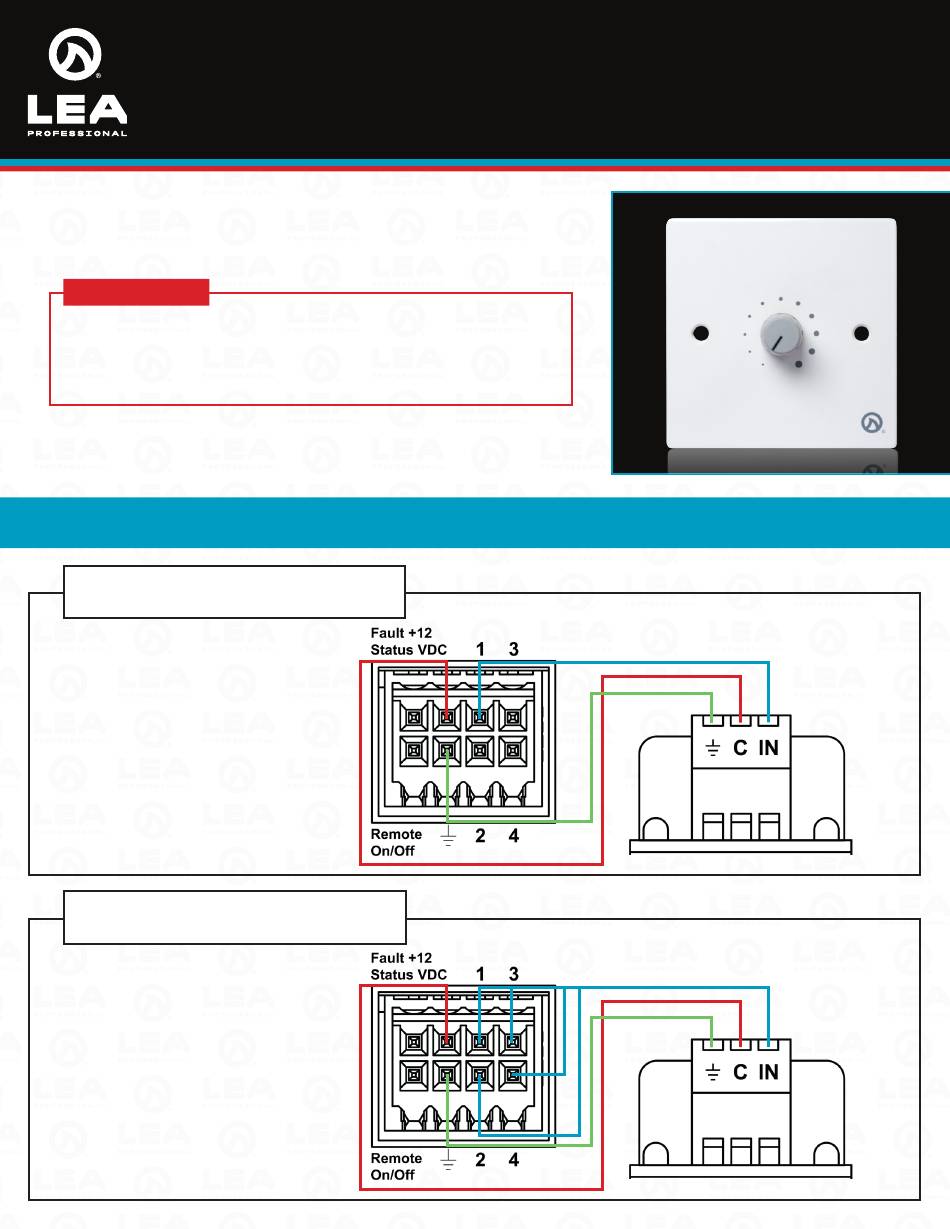

GPIO WIRING DIAGRAM
Individual Channel
Volume Control Wiring Diagram
Channel 1
Volume Control Wiring Shown
Multiple Channel
Volume Control Wiring Diagram
Channel 1, 2, 3, and 4
Volume Control Wiring with a
Single D-RLC-10K Shown
D-RLC-10K
INSTALLATION INSTRUCTIONS
CONNECT
SERIES
CONNECT
SERIES
Advertisement
Summary of Contents for Lea D-RLC-10K
- Page 1 D-RLC-10K INSTALLATION INSTRUCTIONS he LEA D-RLC-10K is an analog potentiometer for remote volume control of the LEA CONNECT SERIES Amplifier family. NOTE The D-RLC-10K only works with CONNECT SERIES Amplifiers that have ‘GPIO’ functionality. If the remote on/off connector on the rear of the unit is labeled ‘GPIO’ then this potentiometer will work.
- Page 2 • Scroll Down to the GPIO Ports section • 3 - Select which channels and ports you would like to configure for remote volume control. o Port 1 – Channel 1 remote volume control o Port 2 – Channel 2 remote volume control o Etc. • If you want 1 D-RLC-10K to control multiple channels, select the ports and channels you want the D-RLC-10K to control output volume on and then wire the GPIO connector to the appropriate ports.
