Summary of Contents for Etross 4G LTE FWT ETS-8848

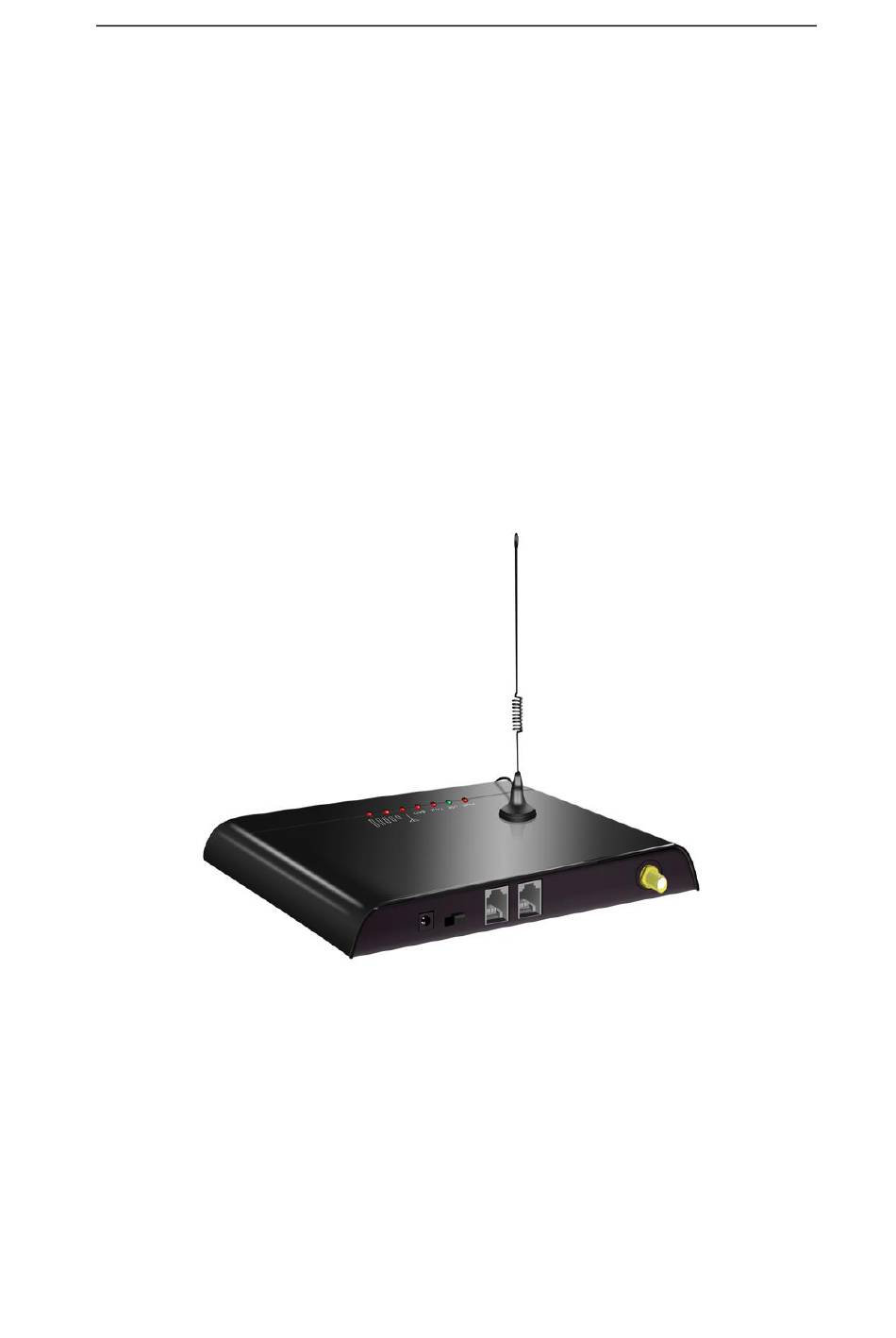

- Page 1 4G LTE FWT ETS-8848 User's Manual Version 1.0 (Fixed Wireless Terminal) 4G LTE FWT ETS-8848 User's Manual 4G LTE FWT ETS-8848 Version 1.0 -2020...
-
Page 2: 1, General Description
Version 1.0 1, General Description 4G LTE FWT ETS-8848 is a 4G Lte to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local land line(PSTN) except your calls will go out from the GSM network. - Page 3 4G LTE FWT ETS-8848 User's Manual Version 1.0 Material ABS (Acrylonitrile Butadiene Styrene) Excluding Dimension 170mm×118mm×30mm antenna Weight 250g Weight of Main unit Power Switch Rocker switch Power Socket 5V DC input Phone 2 RJ-11 ports RJ11 interface Antenna SMA - Female...
- Page 4 4G LTE FWT ETS-8848 User's Manual Version 1.0 2) It supports VoLTE function. 3) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc. 4) Employ industrial module Quectel EC2X series to make 5) Simple to install and easy to maintain...
- Page 5 4G LTE FWT ETS-8848 User's Manual Version 1.0 Hanging voltage: 45V Picking off voltage: 30mA / 41mA Dialing tone Frequency: 450Hz Antenna interface: Antenna amplifying>2.5db Sensitivity:<-104DBM Transmitting power<3W Color: White /Black (optional) AC-Adapter interface: Input: AC 110~240VAC 50~60Hz Output: 5DC 2A.
- Page 6 4G LTE FWT ETS-8848 User's Manual Version 1.0 6,Installation And Connection The Condition for Installation The terminal asks for 110- 220V AV power supply. It must be installed in the area where the 4G network can cover. The strength of the signal can affect the quality of voice.
- Page 7 4G LTE FWT ETS-8848 User's Manual Version 1.0 The sketch for connecting to Billing device or Computer charging system 3) The installation for connecting to PBX for call extenions If users want to connect small PBX to this terminal, connect terminal’s “Phone port”...
- Page 8 4G LTE FWT ETS-8848 User's Manual Version 1.0 5) The installation for connecting to alarm system for Security The GSM FWT can substitute the PSTN for connecting to alarm system for security purpose when PSTN failure or not available. The sketch for connecting to alarm system...
- Page 9 *#01#30# , 01--command， 30--time， Max 9.9 seconds， Min 0.5 seconds, default setting is 3 seconds. *If you use 4G LTE FWT ETS-8848 for connecting to VoIP gateway, you can set dial interval as 0.5 second, it can make PDD<5 sec (Method: *#01#05#);...
-
Page 10: Network Lock
4G LTE FWT ETS-8848 User's Manual Version 1.0 setting --00 9)FSK setting (optional) (should confirm before order) *#17#00# setting caller ID 17-order, 00-value, 00-DTMF, 01-FSK, default setting is 00 This setting need terminal has FSK Chip set support 10) Billing Mode setting... - Page 11 4G LTE FWT ETS-8848 User's Manual Version 1.0 3,Set the Network codes *#12#1*46003*46003# 12-command,1--No. Of IMSI, 46003--the IMSI code for China Telecom *#12#2*46000*46000# 12-command, 2--No. Of IMSI, 46000--the IMSI code for China Mobile 8,Making Calls and Answer Incoming Calls Making Calls 1.
-
Page 12: Warranty Card
4G LTE FWT ETS-8848 User's Manual Version 1.0 Warranty Card Please fill in the blanks carefully, and keep it properly as the voucher for warranty. Type of Equipment 4G LTE FWT ETS-8848 User’s name Contact with: Contact Tel.no. Address Date of Ex-works...
