Hinkley 15602-LED Installation Instructions

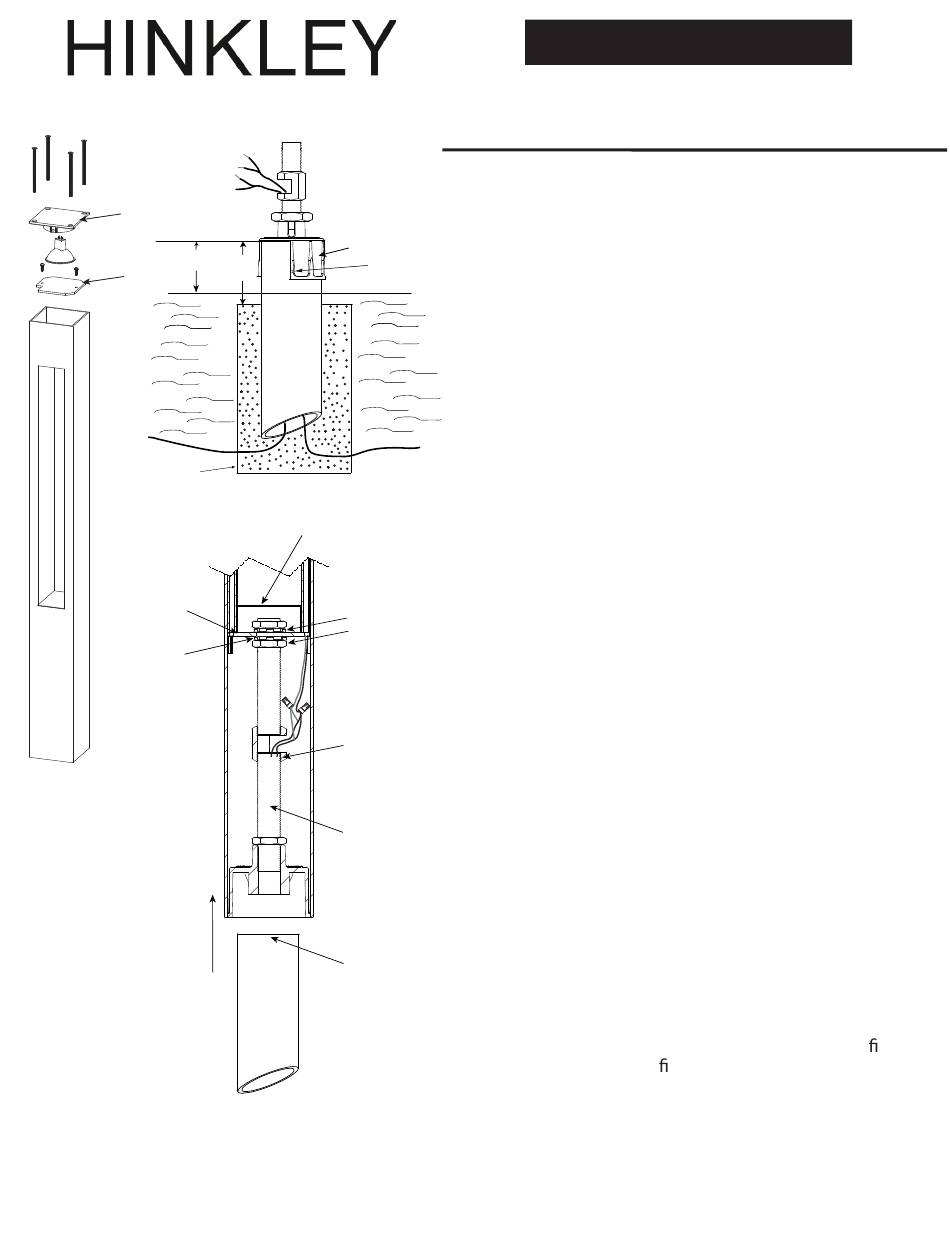

Top Cover
4 1/2"
Max
Glass
Concrete
(optional)
Bottom Plate
External tooth
washer (lock)
UBM to rest on top of
Pipe.
HINKLEY 33000 Pin Oak Parkway
Bollard Mount
Set Screw
2 1/2"
Min Hight
PVC
Bottom Cover
External tooth
washer (lock)
Nut
Wiring Coupler
Threaded Tube
Note: Threaded
tube can be
adjusted to
change hight of
fixture
Please do not
cut the top of
the PVC pipe
PVC
Avon Lake, OH 44012
Installation Instructions
Family: Atlantis | Item No. 15602-LED
 Start Here
Unpacking
1. Unpack the bollard and the glass from the box.
2. Remove the bollard mount, threaded tube assembly, and
PVC pipe from the box.
Luminaire Mounting
Note: If your local code requires a frost line burial deeper than
12 inches, you may purchase a 2 inch PVC pipe (sch. 40 or sch.
80) from a local supplier and cut to length as a replacement to
the provided PVC pipe.
1. Dig a hole about 12 inches or deeper, depending on your
local code.
2. Feed the wires through the PVC pipe and insert it in the
ground, make sure the PVC is sticking out of the ground
enough that the bollard mount will ÿt on top of the PVC,
and that the bottom of the bollard mount is level with the
ground.
3. Fill in the hole around the PVC pipe.
4. Level the PVC pipe with a post level.
5. Feed the wires through the bollard mount and the
threaded tube assembly, pull the wires out through the
wiring coupler.
6. Put the bollard mount on top of the PVC pipe.
7. Tighten the three set screws on the sides of the bollard
one turn each in succession until all are tight.
Assembly
1. Wire the fixture wires and the main wires together using
wire nuts. Put the silicone glue, that's provided, in the wire
nuts to waterproof.
2. Remove the bottom cover.
3. For ground installation: screw the nuts (supplied) onto the
threaded tube to get the correct height adjustment. This
step is not needed for concrete or other hard surface
installations.
4. Put the main body of the fixture over the bollard mount
and threaded tube assembly.
5. Rotate the fixture to the desired position.
6. Put a nut (supplied in the parts bag) on top of the threaded
tube and tighten.
7. Replace the bottom cover.
8. Unscrew the four screws from the top cover and remove
the cover. Let the cover hang over the edge of the xture.
9. Insert the glass into the xture, and screw it in.
10. Insert a bulb or LED engine. See LED instructions to install.
11. Put the top cover back on and tighten the four screws.
